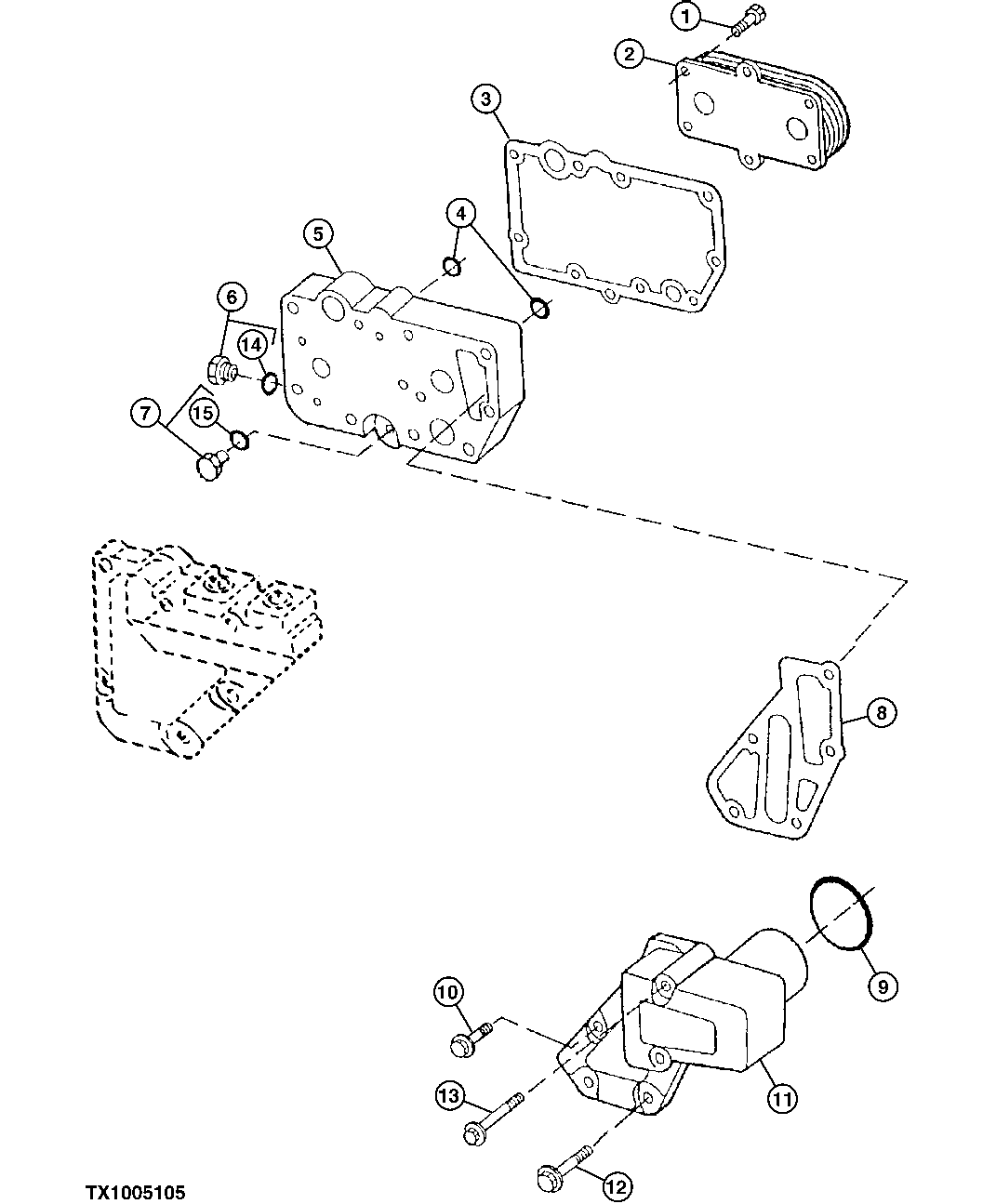

Запчасти John Deere 554 70 - 5902 ENGINE OIL COOLER WITH ADAPTER 0400A Engine 6068HT053 6068HT053

1

RE67231

Screw

(A)

6шт.

2

RE560752

Oil Cooler

(B) SUB FOR RE56690

1шт.

RE522821

Oil Cooler

(B) (TESTED ASSEMBLY)

1шт.

3

R123501

Gasket

1шт.

4

T122075

O-Ring

29.820 X 2.616 mm (1.174" X 0.103")

2шт.

5

R123471

Housing

1шт.

6

RE46685

Fitting Plug

1шт.

7

RE46686

Fitting

1шт.

8

R501428

Gasket

1шт.

9

R504734

O-Ring

1шт.

10

19M7802

Screw

M8 X 65

2шт.

11

R502811

Adapter Fitting

1шт.

12

19M7970

Screw

M8 X 100

2шт.

13

RE67238

Screw

(A)

1шт.

14

51M7043

O-Ring

15.300 X 2.200 mm

1шт.

15

51M7040

O-Ring

9.300 X 2.200 mm

1шт.
