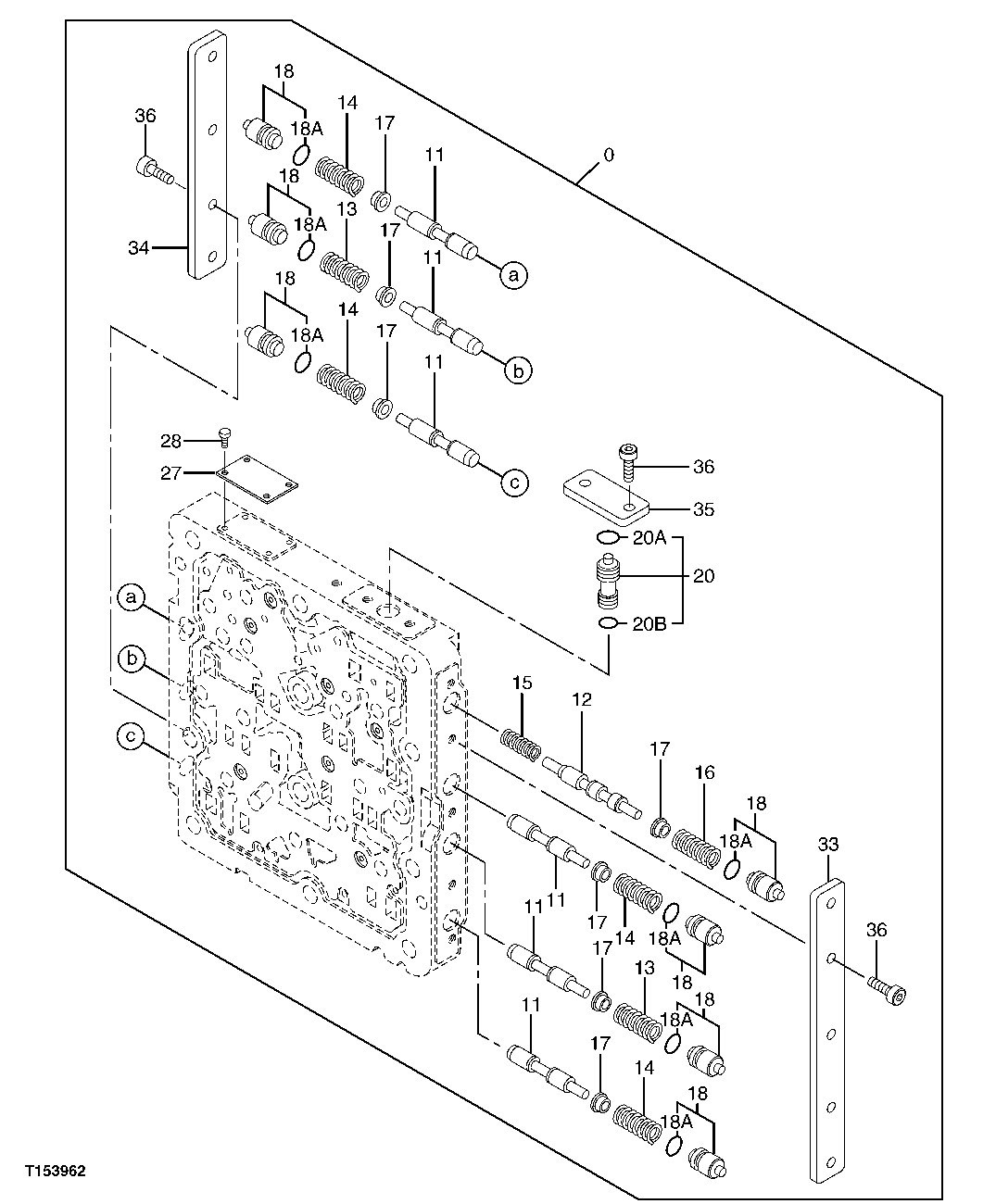

Запчасти John Deere 554 592 - PILOT SIGNAL MANIFOLD VALVES 3364 HYDRAULIC RESERVOIR

0

4468337

Flow Control Hyd. Valve

(CONTAINS ALL PARTS ON THIS PAGE - ADDITI ONAL COMPONENTS LISTED ON PREVIOUS PAGES)

1шт.

4486321

Flow Control Hyd. Valve

(CONTAINS ALL PARTS ON THIS PAGE - ADDITI ONAL COMPONENTS LISTED ON PREVIOUS PAGES)

1шт.

11

4453819

Spool Valve

(SUB FOR TH4453819)

6шт.

12

4453820

Spool Valve

(SUB FOR TH4453820)

1шт.

13

0788703

Spring

(SUB FOR TH0788703)

2шт.

14

0788704

Spring

(SUB FOR TH0788704)

4шт.

15

0788705

Spring

(SUB FOR TH0788705)

1шт.

16

0788706

Spring

(SUB FOR TH0788706)

1шт.

17

0788707

Valve Seat

(SUB FOR TH0788707)

7шт.

18

4452647

Pipe Plug

(SUB FOR TH4452647)

7шт.

18A

CH11560

Packing

1шт.

20

4452648

Spool Valve

(SUB FOR TH4452648)

1шт.

20A

CH11560

Packing

1шт.

20B

CH10567

Packing

1шт.

27

Plate

NLA

1шт.

28

Screw

NLA

4шт.

33

0788710

Plate

(SUB FOR TH0788710)

1шт.

34

0788711

Plate

(SUB FOR TH0788711)

1шт.

35

0788712

Plate

(SUB FOR TH0788712)

1шт.

36

0788713

Bolt

(SUB FOR TH0788713)

11шт.
