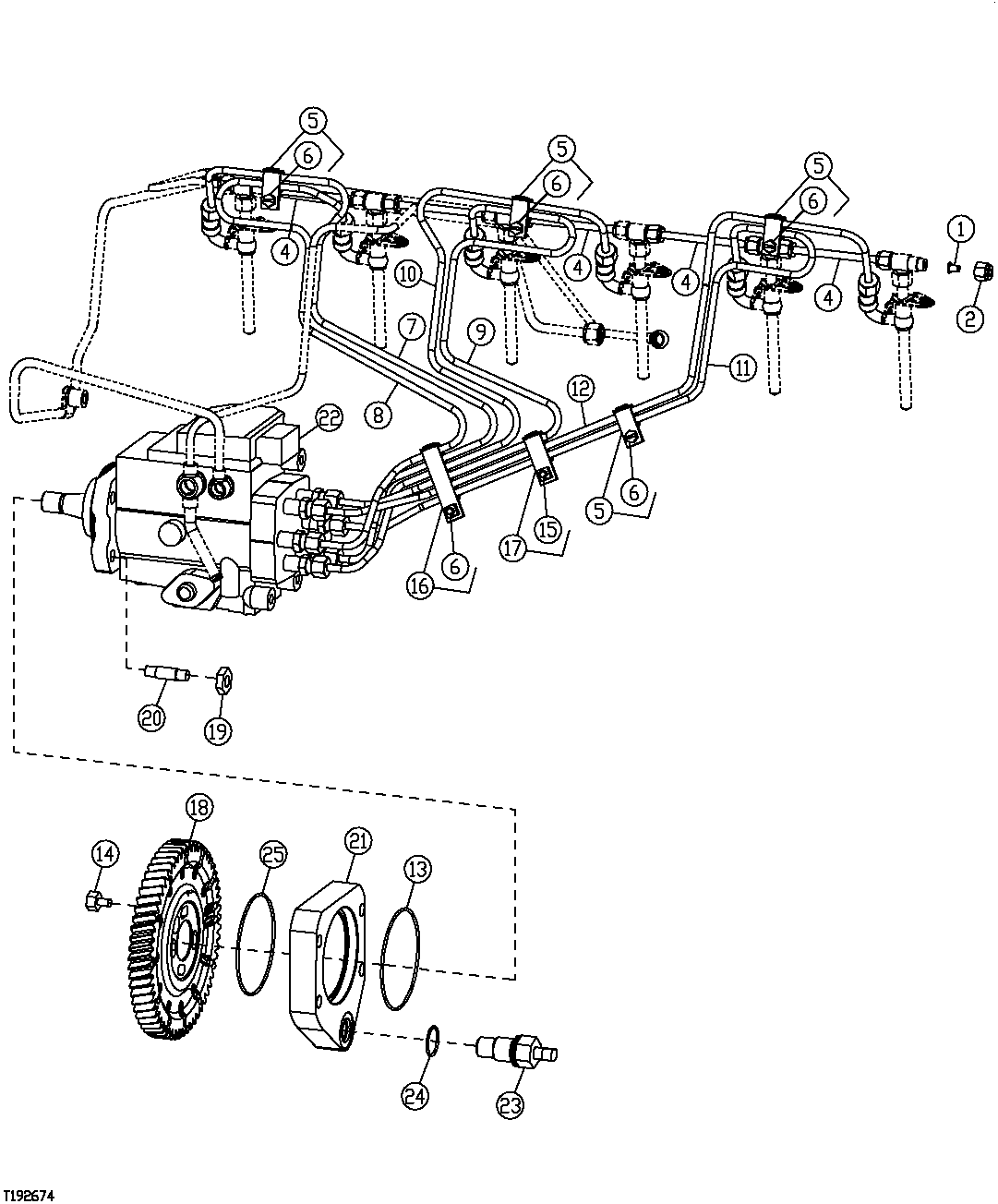

Запчасти John Deere 554 42 - 16MN Fuel Injection System ( - 254350) 0400A Engine 6068HT053 6068HT053

1

AR85519

Plug

1шт.

2

R123593

Tube Nut

1шт.

4

RE68748

Tube

INCLUDES (2) R51936

4шт.

R51936

Sealing Washer

(A)

2шт.

5

RE19797

Clamp

(FUEL LINE 1-2, 3-4, 5-6)

4шт.

6

19M7923

Cap Screw

M6 X 12

5шт.

7

RE507653

Fuel Line

NO. 1

1шт.

8

RE507654

Fuel Line

NO. 2

1шт.

9

RE507655

Fuel Line

NO. 3

1шт.

10

RE507656

Fuel Line

NO. 4

1шт.

11

RE507657

Fuel Line

NO. 5

1шт.

12

RE507658

Fuel Line

NO. 6

1шт.

13

R54873

O-Ring

1шт.

14

R504798

Screw

1шт.

15

19M8560

Cap Screw

M6 X 12

1шт.

16

RE19800

Clamp

(FUEL LINE 1, 2, 3, 4, 5, 6)

1шт.

17

RE20901

Clamp

(FUEL LINE 4-6)

1шт.

18

R515150

Gear

1шт.

19

14M7276

Nut

M16

4шт.

20

R134212

Stud

4шт.

21

R501039

Adapter Fitting

1шт.

22

RE522826

Fuel Injection Pump

(SUB FOR RE506681)(ROBERT BOSCH-VP44)

1шт.

SE501616

Fuel Injection Pump Reman

(REMAN FOR RE522826)

1шт.

23

RE519144

Sensor

(SUB FOR RE508195)(CRANKSHAFT POSITION)

1шт.

24

51M7044

O-Ring

17.300 X 2.200 mm

1шт.

25

R123295

O-Ring

1шт.
