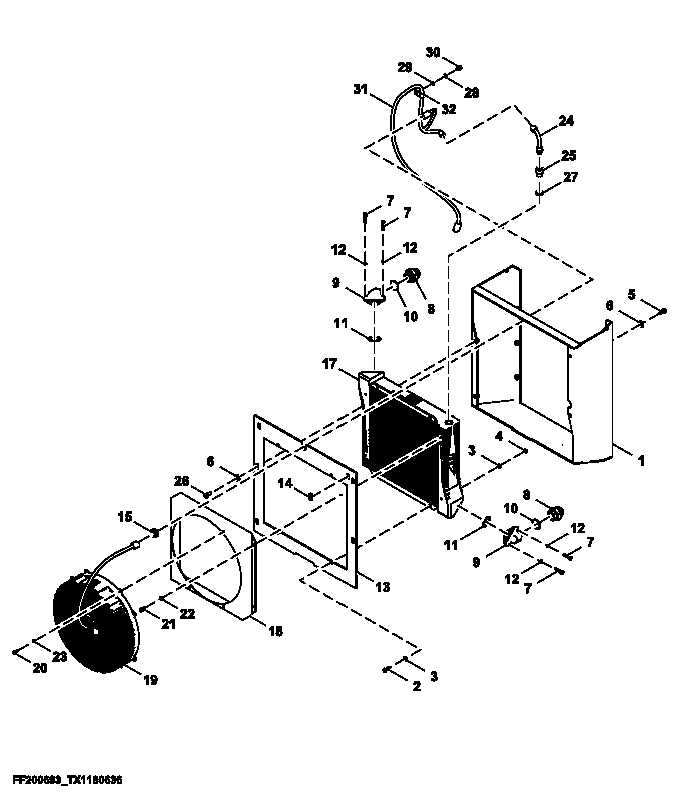

Запчасти John Deere 554 579 - Auxiliary Oil Cooler 3363 Lines, Hoses & Fittings

1

FFSB115268

Housing

1шт.

2

19M7407

Cap Screw

M8 X 25 SUB FOR J900825

4шт.

3

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

8шт.

4

14M7273

Nut

M8 SUB FOR J950008

4шт.

5

19M7402

Cap Screw

M10 X 25 SUB FOR J901025

6шт.

6

24M7136

Washer

10.500 X 27 X 2 mm

10шт.

7

19M7561

Screw

M8 X 30

6шт.

8

FF200617

Adapter Fitting

2шт.

9

FF200616

Adapter

2шт.

10

U13639

O-Ring

2шт.

11

A811045

O-Ring

2шт.

12

FF200638

Spring Washer

6шт.

13

FF200684

Plate

1шт.

14

FF200689

Plug

2шт.

15

FFSB111099

Grommet

1шт.

17

FF215760

Radiator

1шт.

18

FF215762

Housing

1шт.

19

FF215759

Fan

1шт.

20

19M7768

Screw

M6 X 16

4шт.

21

19M7931

Screw

M8 X 16

4шт.

22

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

23

24M7105

Washer

6 X 12 X 1.600 mm

4шт.

24

FF215723

Switch

1шт.

25

FF215540

Adapter

1шт.

26

19M7402

Cap Screw

M10 X 25 SUB FOR J901025

4шт.

27

FFSB114743

Seal

1шт.

28

12M7065

Lock Washer

8 mm SUB FOR A590908

1шт.

29

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

1шт.

30

19M7162

Cap Screw

M8 X 16 SUB FOR J900816

1шт.

31

FF215887

Wiring Harness

1шт.

32

H75541

Clamp

SUB FOR FFSB105438

1шт.
