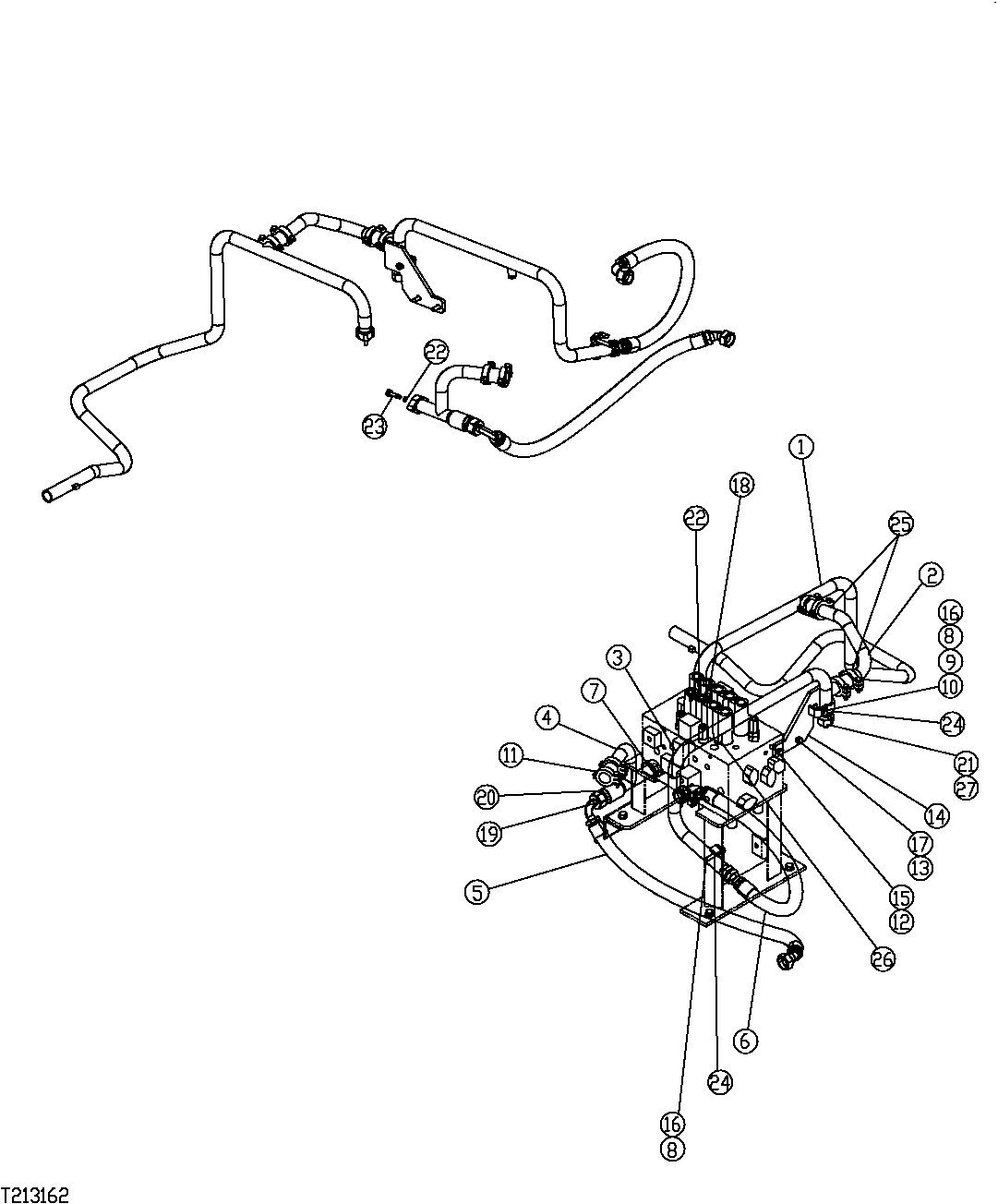

Запчасти John Deere 554 578 - AUXILIARY OIL COOLER LINES (SN 200363- ) 3363 Lines, Hoses & Fittings

1

FFSB114674

Tube

1шт.

2

FFSB114677

Tube

1шт.

3

FFSB114675

Tube

1шт.

4

FFSB114676

Tube

1шт.

5

FFSB114678

Hydraulic Hose

1шт.

6

FFSB114679

Hose

1шт.

7

19M8338

Screw

M10 X 40 (SUB FOR FFSB114297)

2шт.

8

12M7067

Lock Washer

12 mm (SUB FOR FFSB107911)

2шт.

9

14M7275

Nut

M12 (SUB FOR FFSB107245)

1шт.

10

24M7047

Washer

13 X 24 X 2.500 mm (SUB FOR FFSB105797)

1шт.

11

4069801

Coupling

(SUB FOR FFSB114167, 4712341 AND 4196259)

1шт.

4196259

Seal

NLA, ORDER 4069801

2шт.

12

24M7085

Washer

15 X 28 X 2.500 mm (SUB FOR FFSB110013)

1шт.

13

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

1шт.

14

FFSB114680

Bracket

1шт.

15

19M7393

Cap Screw

M14 X 50 (SUB FOR FFSB114467)

1шт.

16

19M7364

Cap Screw

M12 X 80 (SUB FOR FFSB114699)

3шт.

17

19M7382

Cap Screw

M10 X 40 (SUB FOR FFSB109189)

1шт.

18

19M8337

Screw

M10 X 30 (SUB FOR FFSB107143)

2шт.

19

4276584

Flow Control Hyd. Valve

(SUB FOR FFSB114682)

1шт.

20

PMH1654

Adapter Fitting

(SUB FOR FFSB114683)

1шт.

21

T78612

O-Ring

(SUB FOR FFSB114288)

3шт.

22

A811040

O-Ring

(SUB FOR FFSB114684)

2шт.

23

4272164

Flow Control Hyd. Valve

(SUB FOR FFSB114685)

1шт.

24

4053698

Clamp

(SUB FOR FFSB113716)

2шт.

25

FFSB114744

Coupling

2шт.

26

4451789

Pipe Plug

(SUB FOR FFSB110896)

1шт.

27

X20FNL-S

Fitting

(SUB FOR FFSB114429)

1шт.
