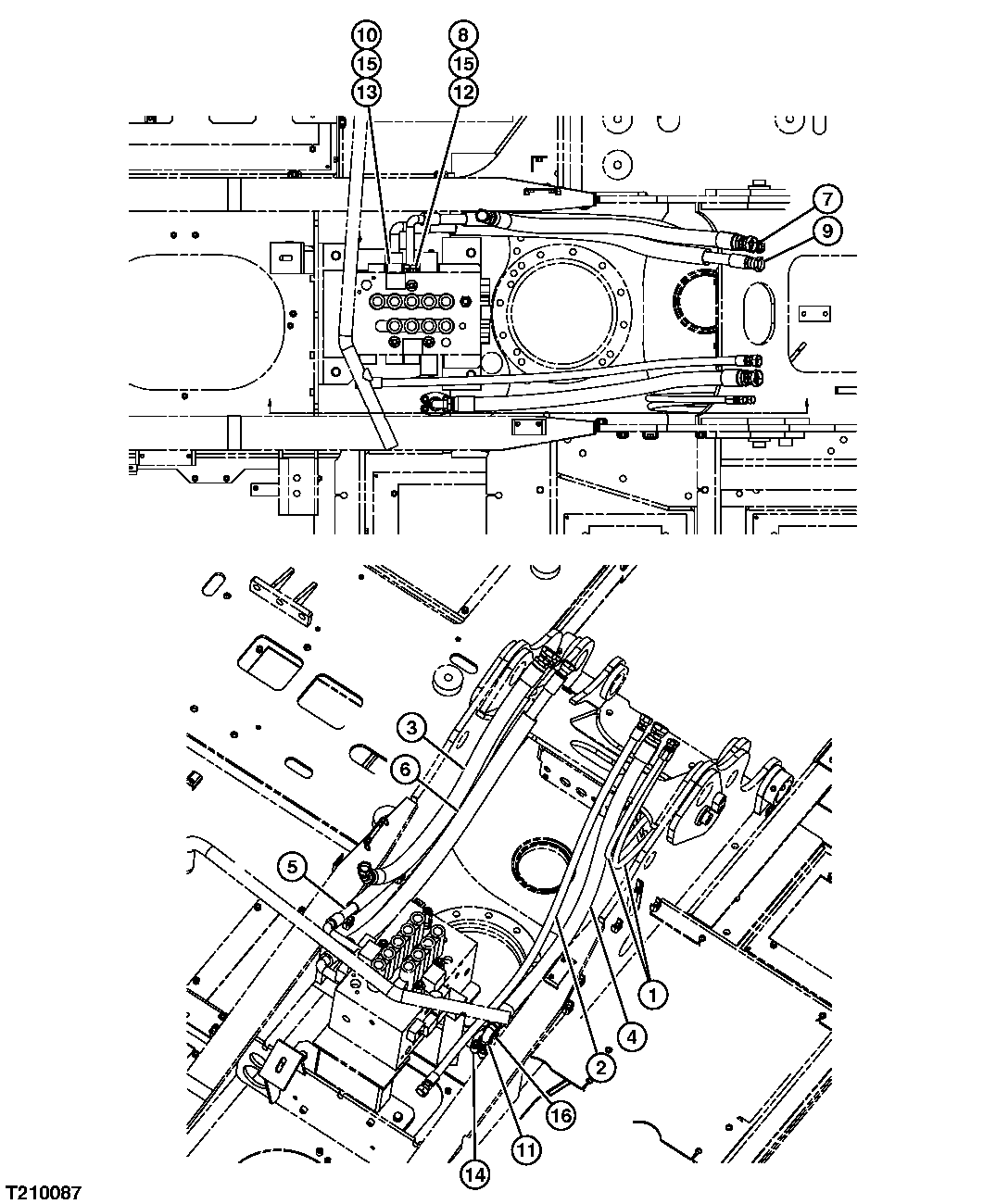

Запчасти John Deere 554 573 - DECK TO BOOM HOSES (PROCESSOR CONFIGURATION)(SN. 200336-) 3363 Lines, Hoses & Fittings

1

FFSB113668

Hydraulic Hose

(ROTATE)

2шт.

2

FFSB114029

Hydraulic Hose

(CASE DRAIN)

1шт.

3

FFSB114031

Hydraulic Hose

(RETURN)

1шт.

4

FFSB114024

Hydraulic Hose

(SUPPLY)

1шт.

5

4413854

Hydraulic Hose

Arm Cylinder Retract (SUB FOR FFSB 114375 ) (ALSO ORDER XHG-075 (CTL))

1шт.

Hose Guard

(SUB FOR 4327294 ) (MAKE FROM XHG-075)(CTL)

1шт.

6

4413856

Hydraulic Hose

Arm Cylinder Extend (SUB FOR FFSB1 14374 ) (ALSO ORDER XHG-075 (CTL))

1шт.

Hose Guard

(SUB FOR 4327294 ) (MAKE FROM XHG-075)(CTL)

1шт.

7

T77858

O-Ring

(SUB FOR FFSB109689)

1шт.

8

X711510-5

O-Ring

(SUB FOR FFSB103505)

1шт.

9

T76938

O-Ring

(SUB FOR FFSB106416 OR TH108326)

1шт.

10

T78313

O-Ring

(SUB FOR FFSB106430)

1шт.

11

X711510-3

O-Ring

(SUB FOR FFSB106288)

1шт.

12

XM1H-12

Flange Fitting

(SUB FOR FFSB103504)

2шт.

13

H61354

Flange Fitting

(SUB FOR FFSB110184)

2шт.

14

AT131685

Flange Fitting

(SUB FOR FFSB110975)

2шт.

15

19M7576

Screw

M10 X 30 (SUB FOR J781030)

8шт.

16

19M8734

Screw

M14 X 45 (SUB FOR FFSB110972)

4шт.
