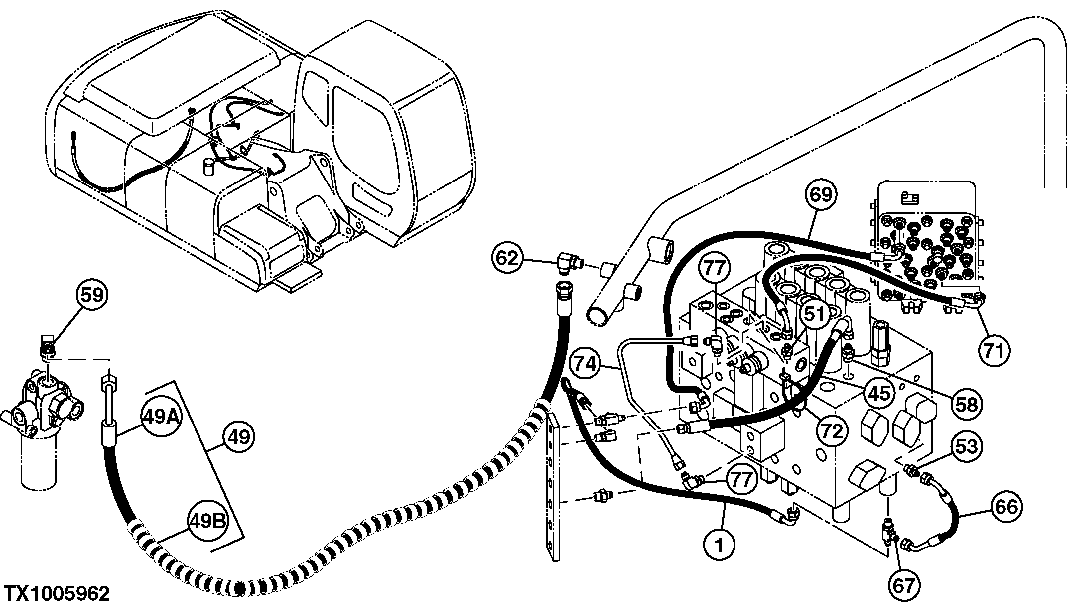

Запчасти John Deere 554 569 - PILOT HYDRAULIC PIPINGS 3360 HYDRAULIC SYSTEM

1

4427119

Hydraulic Hose

SUB FOR TH4427119

1шт.

45

4427152

Hydraulic Hose

1шт.

49A

4331726

Hose

1шт.

49B

4327315

Hose Guard

4327293 NLA

3шт.

51

A852122

Adapter Fitting

( 4200465 NOT USED FOR THIS APPLICATION)

1шт.

M800650

Packing

1шт.

53

A852122

Adapter Fitting

( 4200465 NOT USED FOR THIS APPLICATION)

2шт.

M800650

Packing

1шт.

58

A852133

Adapter Fitting

( 4200466 NOT USED FOR THIS APPLICATION)

1шт.

CH11570

O-Ring

1шт.

59

A852344

Elbow Fitting

( 4154672 NOT USED FOR THIS APPLICATION)

1шт.

4506418

O-Ring

1шт.

62

A852334

Elbow Fitting

1шт.

CH11570

O-Ring

1шт.

66

4427357

Hydraulic Hose

1шт.

67

A852422

Tee Fitting

1шт.

M800650

Packing

1шт.

69

4444461

Hydraulic Hose

1шт.

71

4442812

Hydraulic Hose

1шт.

72

H77698

Tie Band

1шт.

74

4632041

Hydraulic Hose

ALSO ORDER (2) A852122, 4452054 NLA

1шт.

77

A852122

Adapter Fitting

INCLUDES 957366

2шт.

957366

O-Ring

1шт.
