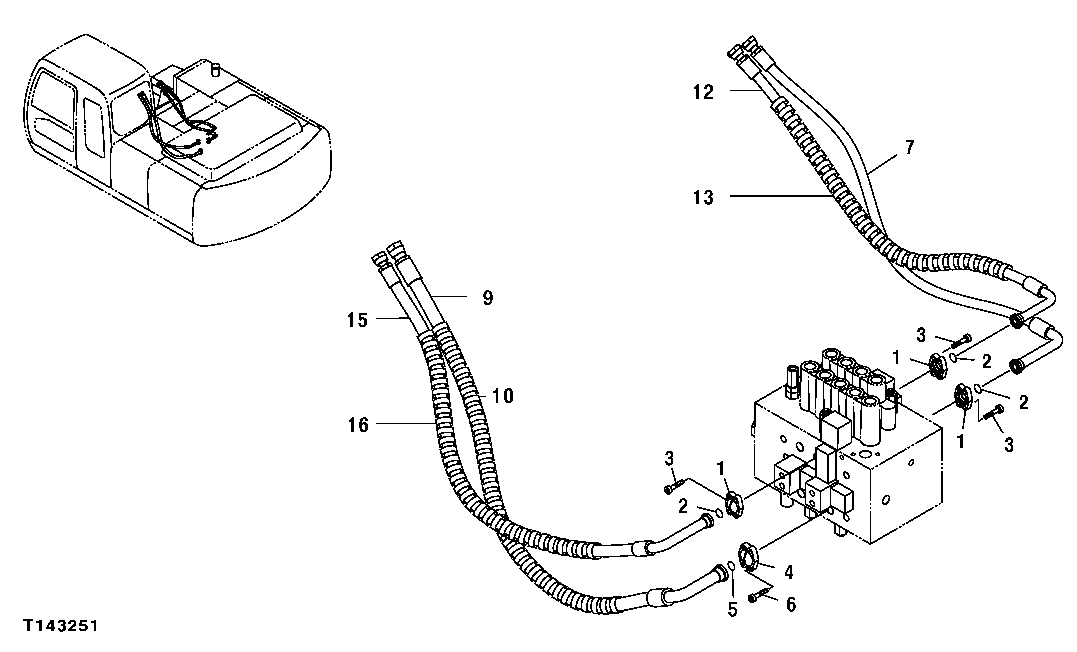

Запчасти John Deere 554 560 - CONTROL VALVE TO BOOM LINE HOSES (ARM AND BUCKET CYLINDER) 3360 HYDRAULIC SYSTEM

1

R29424

Flange Fitting

6шт.

2

T59014

O-Ring

24.994 X 3.531 mm (63/64" X 0.139")

3шт.

3

19M7576

Screw

M10 X 30 (SUB FOR J781030)

12шт.

4

H61354

Flange Fitting

2шт.

5

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

6

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

7

4410314

Hydraulic Hose

(SUB FOR TH4410314)

1шт.

9

4413856

Hydraulic Hose

(SUB FOR TH4413856)

1шт.

10

Hose Guard

(MAKE FROM XHG-075 ) (SUB F OR AT213832 OR 4327294)(CTL)

4шт.

12

4413858

Hydraulic Hose

(SUB FOR TH4413858)

1шт.

13

Hose Guard

(MAKE FROM XHG-075 ) (SUB F OR AT213832 OR 4327294)(CTL)

4шт.

15

4413854

Hydraulic Hose

(SUB FOR TH4413854)

1шт.

16

Hose Guard

(MAKE FROM XHG-075 ) (SUB F OR AT213832 OR 4327294)(CTL)

4шт.
