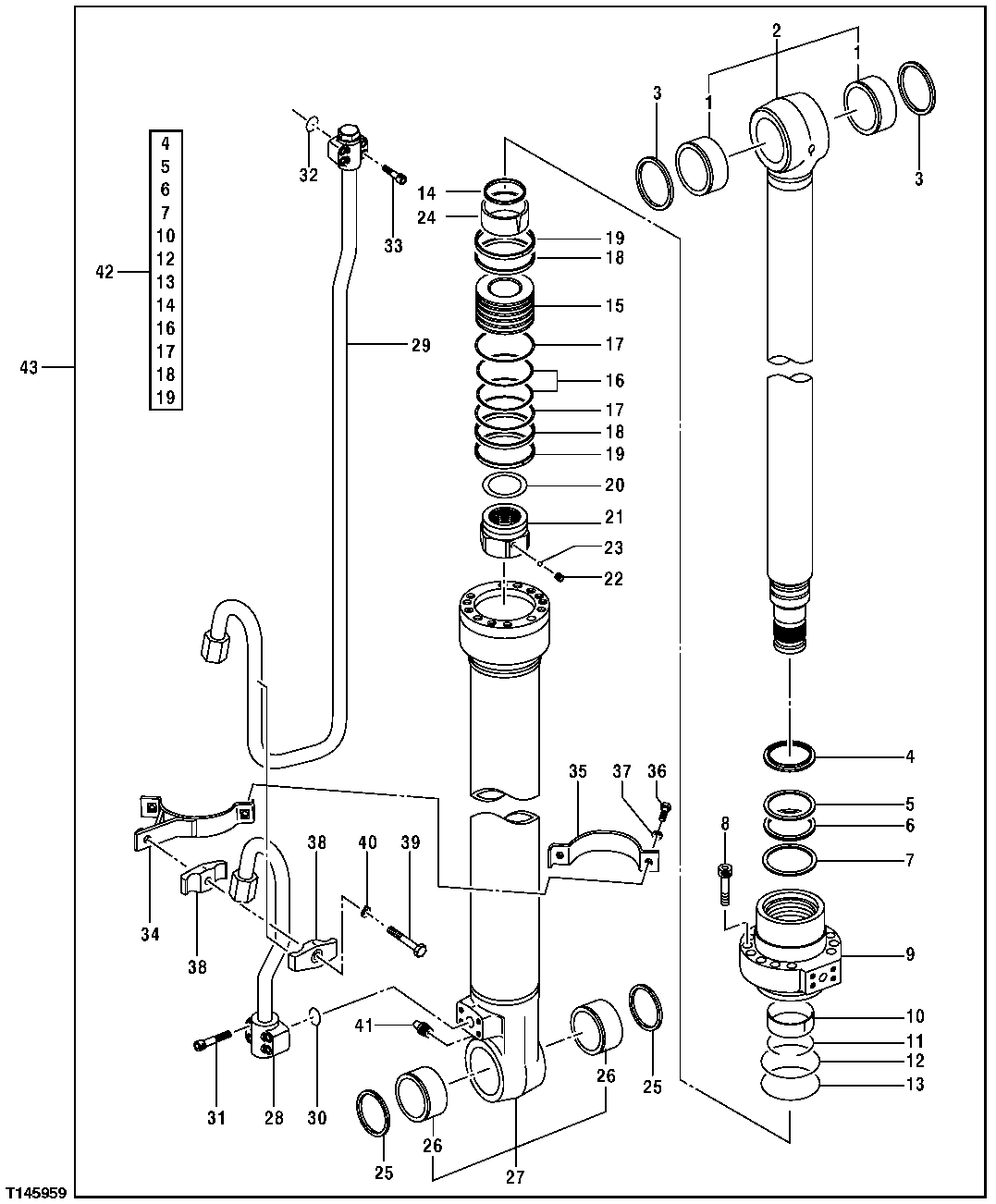

Запчасти John Deere 554 550 - Right Boom Cylinder And Oil Lines, Excavator Boom 3360 HYDRAULIC SYSTEM

1

4355875

Bushing

SUB FOR AT213976

2шт.

2

AH173456

Rod

1шт.

AH173456

Rod

SUB FOR PG201374

1шт.

3

TH102445

Seal

2шт.

4

H155911

Seal

1шт.

5

AT309614

Back-Up Ring

SUB FOR TH104953 OR 4S00174

1шт.

6

H227912

Seal

SUB FOR TH104952, 4S00173 OR AT309613

1шт.

7

H179701

Seal

1шт.

8

19M8931

Screw

M16 X 75

12шт.

9

Hydr. Cylinder Rod Guide

SUB TH9175422

1шт.

10

AT264272

Bushing

SUB FOR T108019, AT154778 OR 4272960

1шт.

11

TH104944

Snap Ring

SUB FOR 0208304

1шт.

12

AT264359

Back-Up Ring

SUB FOR TH104929 OR 4S00175

1шт.

13

AT264342

O-Ring

SUB FOR TH100125

1шт.

14

H155919

Seal

1шт.

15

H155921

Piston

1шт.

16

AT264355

Seal

SUB FOR TH104922

1шт.

17

H155916

Back-Up Ring

2шт.

18

Ring

2шт.

19

AT264356

Wear Ring

SUB FOR 4S00158 OR TH104923

2шт.

20

T108030

Shim

SUB FOR 0309013

1шт.

21

H178713

Nut

1шт.

22

22M7009

Set Screw

M12 X 12

1шт.

23

T13624

Ball

1шт.

24

H155920

Ring

1шт.

25

TH102446

Seal

2шт.

26

4352398

Bushing

SUB FOR AT213964

2шт.

27

AH165678

Hydraulic Cylinder Barrel

1шт.

Hyd Cylinder Barrel Reman

PG201478 NLA

1шт.

28

AH233833

Oil Line

SUB FOR AH148788

1шт.

29

AH148789

Oil Line

1шт.

30

AT264348

O-Ring

SUB FOR TH102788

1шт.

31

19M8444

Screw

M12 X 60

4шт.

32

AT264360

O-Ring

SUB FOR TH104930 OR 4506430

1шт.

33

19M8339

Screw

M10 X 55

4шт.

34

AH233834

Clamp

SUB FOR AH148790

1шт.

35

T108048

Clamp

SUB FOR 0309314

1шт.

36

19M7550

Cap Screw

M10 X 35

2шт.

37

12M7066

Lock Washer

10 mm

2шт.

38

0236915J

Half Clamp

SUB FOR TH102783 OR 0236915

2шт.

39

19M7607

Cap Screw

M14 X 80

1шт.

40

12M7068

Lock Washer

14 mm

1шт.

41

TH100074

Lubrication Fitting

1шт.

42

AH173457

Seal Kit

1шт.

43

9175422

Hydraulic Cylinder

REMAN

1шт.
