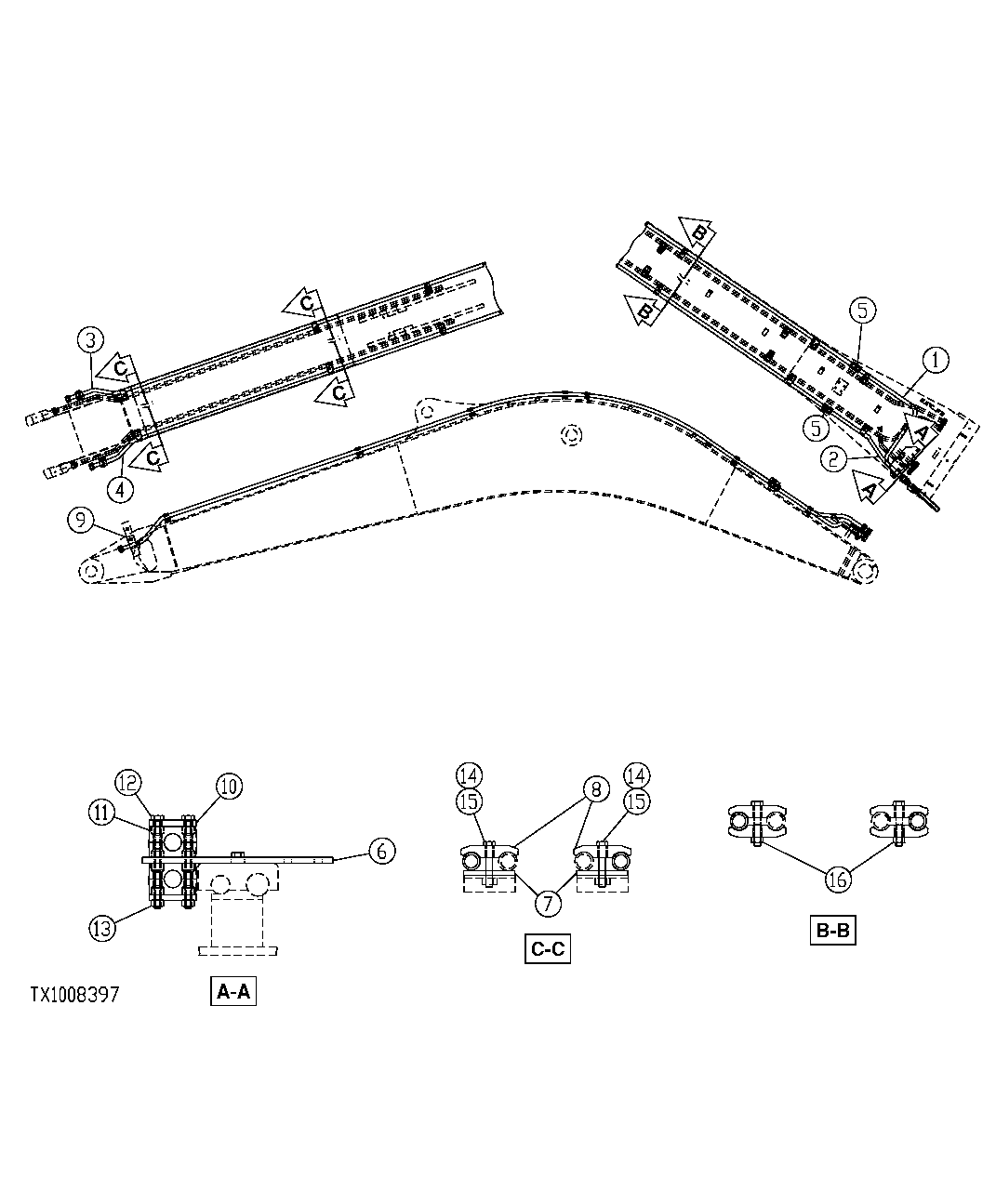

Запчасти John Deere 554 545 - EXCAVATOR BOOM OIL LINES FOR SINGLE FUNCTION FRONT 3360 HYDRAULIC SYSTEM

1

FFSB110279

Structural Tube

(RH) Open and Close

1шт.

2

FFSB110331

Structural Tube

(LH) Open and Close

1шт.

3

FFSB110333

Structural Tube

(RH) Open and Close

1шт.

4

FFSB110335

Dipstick Tube

(LH) Open and Close

1шт.

5

38H1281

Union Fitting

(SUB FOR FFSB102147)

2шт.

T76938

O-Ring

4шт.

6

FFSB110278

Plate

1шт.

7

FFSB110337

Plate

4шт.

8

FFSB105147

Clamp

14шт.

9

4190126

Clamp

(SUB FOR FFSB108708 ) (SUB FOR TH109830)

2шт.

10

FFSB100114

Reinforcement

2шт.

11

FFSB100112

Half Clamp

4шт.

12

19M7638

Cap Screw

M10 X 130 ( FFSB110277 NLA)

2шт.

13

14M7274

Nut

M10 (SUB FOR FFSB107411)

2шт.

14

12M7058

Lock Washer

12 mm (SUB FOR FFSB107 244 ) (SUB FOR 12M7067)

14шт.

15

19M8348

Cap Screw

M12 X 65 (SUB FOR FFSB107244)

14шт.

16

14M7275

Nut

M12 (SUB FOR FFSB107245)

2шт.
