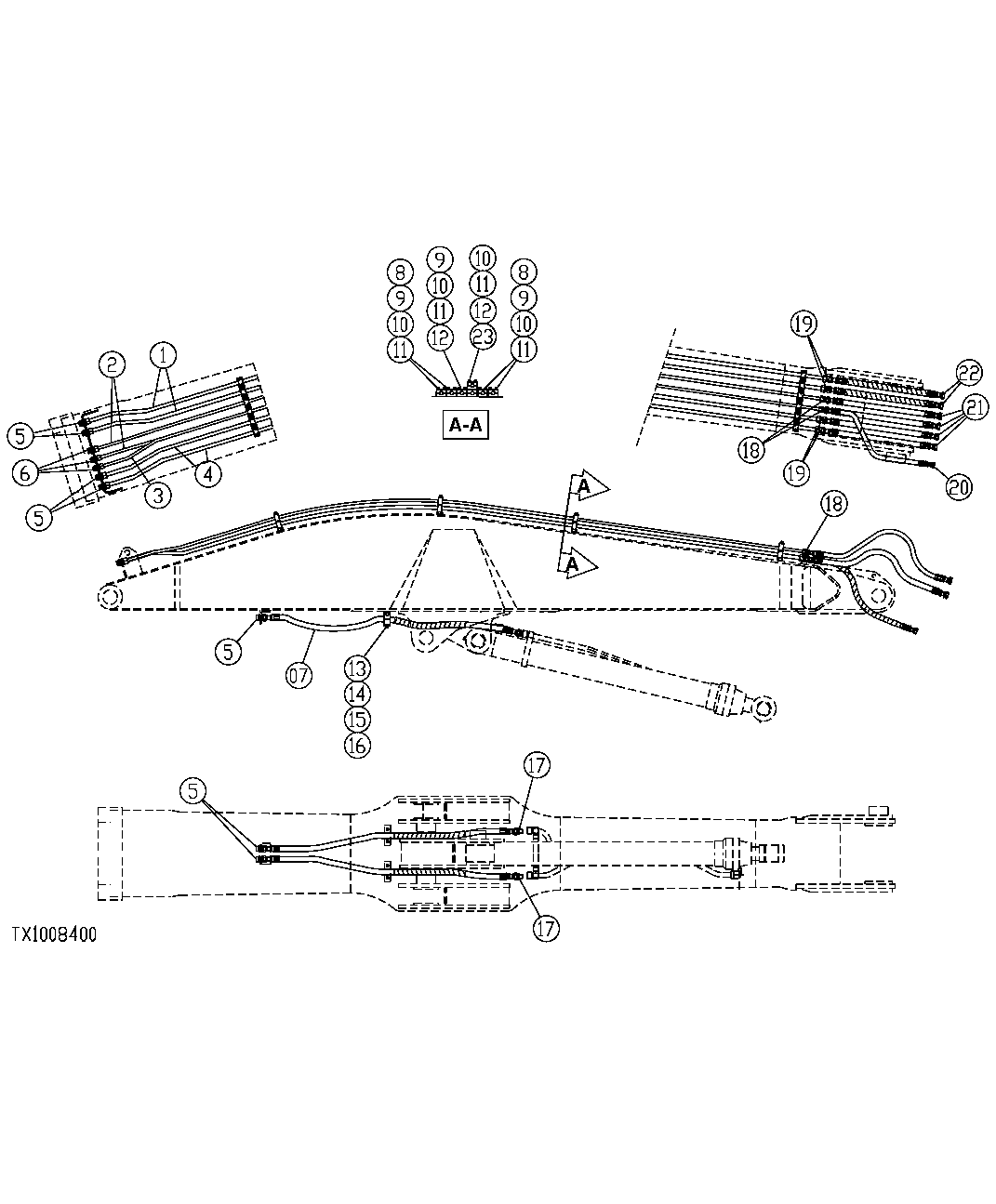

Запчасти John Deere 554 543 - BOOM PLUMBING FOR HEELER FRONT 3360 HYDRAULIC SYSTEM

1

FFSB103187

Oil Line

(LH)

2шт.

2

FFSB103188

Oil Line

(LH)

2шт.

3

FFSB103189

Oil Line

(RH)

1шт.

4

FFSB103190

Oil Line

(RH)

2шт.

5

38H1287

Adapter Fitting

(SUB FOR FFSB102144)

6шт.

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

12шт.

T78715

Nut

36.525 mm (1-7/16")

6шт.

6

38H1276

Adapter Fitting

(SUB FOR FFSB102145)

3шт.

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

6шт.

T78707

Nut

30.175 mm (1-3/16")

3шт.

7

FFSB103295

Hydraulic Hose

2шт.

Cover

( FFSB110057 NLA)

2шт.

8

FFSB100112

Half Clamp

32шт.

9

19M8499

Cap Screw

M10 X 60 (SUB FOR FFSB109895)

40шт.

10

FFSB100114

Reinforcement

28шт.

11

F120999

Nut

( FFSB109897 NLA)

48шт.

12

FFSB100113

Half Clamp

24шт.

13

FFSB100118

Half Clamp

4шт.

14

FFSB110867

Insert

2шт.

15

FFSB100116

Reinforcement

2шт.

16

19M7216

Cap Screw

M12 X 100 (SUB FOR FFSB109192)

4шт.

17

X16F5OLO-S

Adapter Fitting

(SUB FOR FFSB102146)

2шт.

18

38H1272

Union Fitting

(SUB FOR FFSB102148)

3шт.

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

6шт.

19

X16-12HLO-S

Union Fitting

(SUB FOR FFSB102143)

4шт.

20

FFSB103297

Hydraulic Hose

1шт.

21

FFSB103296

Hydraulic Hose

4шт.

22

FFSB103298

Hydraulic Hose

2шт.

XHG-125

Hose Spring Guard

(SUB FOR FFSB108315)

2шт.

23

19M8343

Cap Screw

M10 X 120 (SUB FOR FFSB111324)

8шт.
