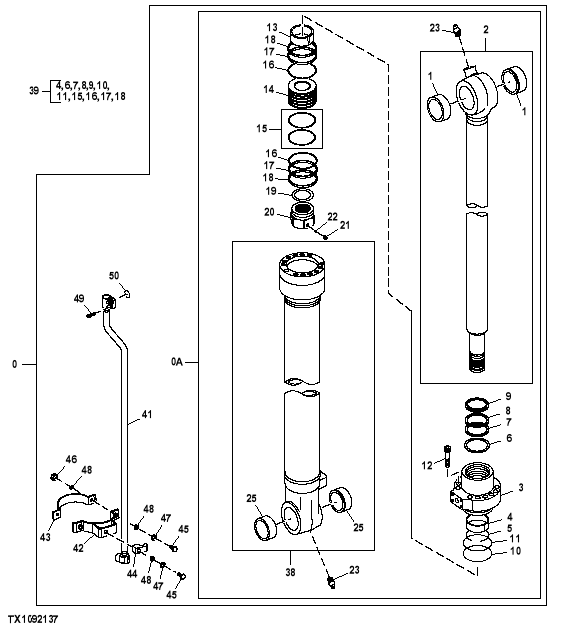

Запчасти John Deere 554 539 - HEELER AND VALVE IN HEAD TILT CYLINDER (SN 200052- ) 3360 HYDRAULIC SYSTEM

0

FFSB113079

Hydraulic Cylinder

(NLA) Order Components

1шт.

0A

AH207408

Hydraulic Cylinder

(SUB FOR FFSB112846)

1шт.

1

4352398

Bushing

(SUB FOR AT213964)

2шт.

2

AH228105

Rod

(SUB FOR AH207409)

1шт.

3

H178708

Hydr. Cylinder Rod Guide

1шт.

4

AT264314

Wear Ring

(SUB FOR T108041)

1шт.

5

AT132690

Snap Ring

(SUB FOR 4004663)

1шт.

6

H179700

Seal

1шт.

7

AT264357

Seal

(SUB FOR TH104925)

1шт.

8

AT264358

Back-Up Ring

(SUB FOR TH104926)

1шт.

9

H157235

Seal

1шт.

10

AT264320

O-Ring

(SUB FOR T110448)

1шт.

11

TH109353

Back-Up Ring

1шт.

12

19M8931

Screw

M16 X 75

10шт.

13

H206880

Bushing

1шт.

14

H161605

Piston

1шт.

15

TH105767

Ring

1шт.

16

H163431

Back-Up Ring

2шт.

17

H163432

Ring

2шт.

18

TH109357

Ring

(SUB FOR AT309610)

2шт.

19

T108030

Shim

(SUB FOR 0309013)

1шт.

20

H178713

Nut

1шт.

21

22M7009

Set Screw

M12 X 12

1шт.

22

T13624

Ball

1шт.

23

TH100074

Lubrication Fitting

2шт.

25

4352400

Bushing

(SUB FOR AT213966)

2шт.

38

AH207410

Hydraulic Cylinder Barrel

1шт.

39

AH173451

Hydraulic Cylinder Kit

Seal and Ring Kit

1шт.

41

FFSB103094

Oil Line

1шт.

42

FFSB111966

Clamp

1шт.

43

FFSB111967

Clamp

1шт.

44

4190126

Clamp

1шт.

45

19M7363

Cap Screw

M12 X 60 (SUB FOR J921260)

3шт.

46

14M7275

Nut

M12 (SUB FOR J950012)

2шт.

47

12H301

Lock Washer

1/2" (SUB FOR A590912)

3шт.

48

24M7047

Washer

13 X 24 X 2.500 mm (SUB FOR A590112)

5шт.

49

19M8339

Screw

M10 X 55 (SUB FOR M341056)

4шт.

50

T59014

O-Ring

(SUB FOR Z971489)

1шт.
