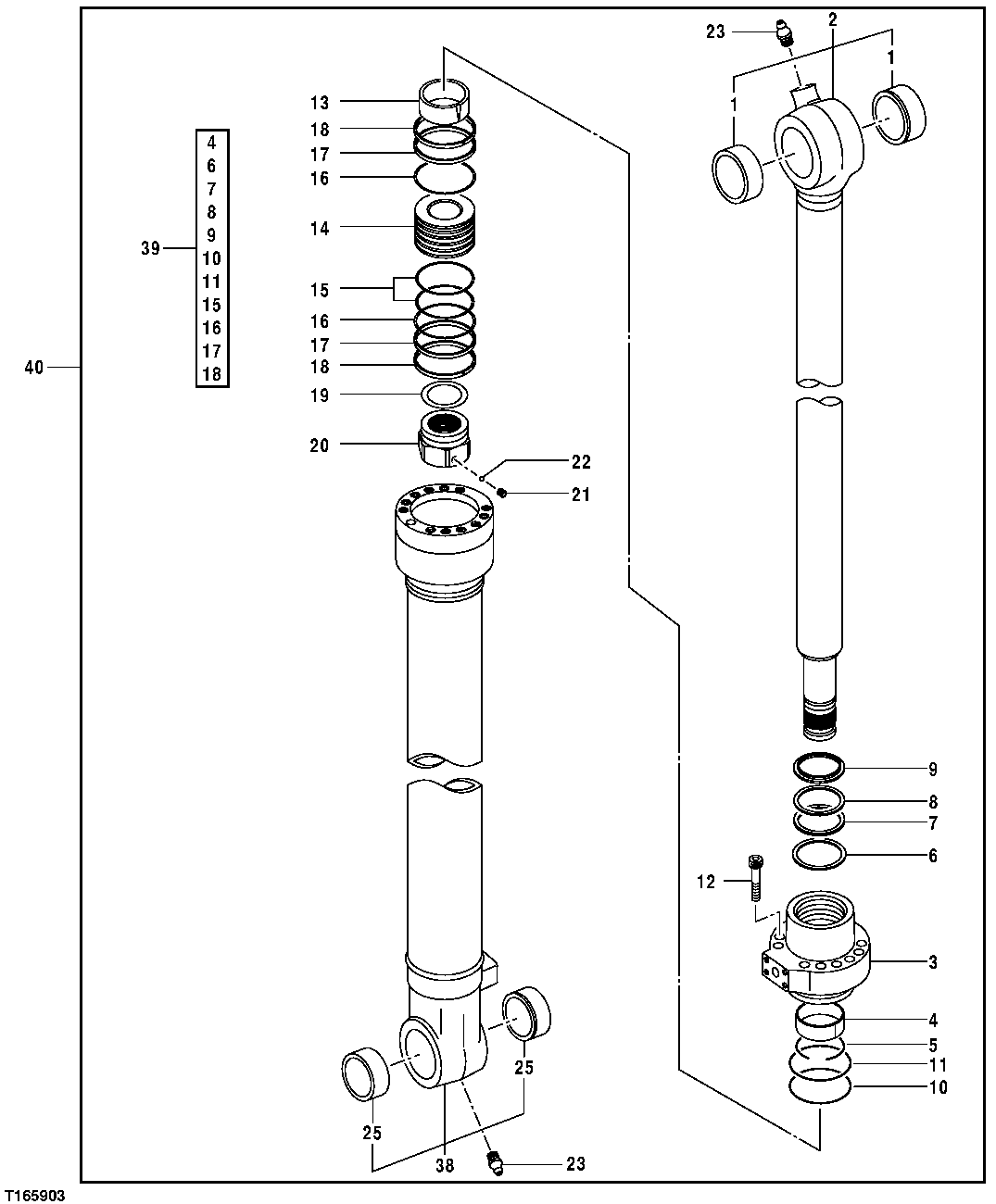

Запчасти John Deere 554 538 - HEELER AND VALVE IN HEAD TILT CYLINDER (SN 200016-200051) 3360 HYDRAULIC SYSTEM

1

4352398

Bushing

(SUB FOR AT213964)

2шт.

2

AH173450

Rod

1шт.

3

H178708

Hydr. Cylinder Rod Guide

1шт.

4

AT264314

Wear Ring

(SUB FOR T108041)

1шт.

5

AT132690

Snap Ring

(SUB FOR 4004663)

1шт.

6

H179700

Seal

1шт.

7

AT264357

Seal

(SUB FOR TH104925)

1шт.

8

AT264358

Back-Up Ring

(SUB FOR TH104926)

1шт.

9

H157235

Seal

1шт.

10

AT264320

O-Ring

(SUB FOR T110448)

1шт.

11

TH109353

Back-Up Ring

1шт.

12

19M8931

Screw

M16 X 75

10шт.

13

H206880

Bushing

1шт.

14

H161605

Piston

1шт.

15

TH105767

Ring

1шт.

16

H163431

Back-Up Ring

2шт.

17

H163432

Scraper Ring

2шт.

18

TH109357

Ring

(SUB FOR AT309610)

2шт.

19

T108030

Shim

(SUB FOR 0309013)

1шт.

20

H178713

Nut

1шт.

21

22M7009

Set Screw

M12 X 12

1шт.

22

T13624

Ball

1шт.

23

TH100074

Lubrication Fitting

2шт.

25

4352400

Bushing

(SUB FOR AT213966)

2шт.

38

AH173449

Hydraulic Cylinder Barrel

1шт.

39

AH173451

Hydraulic Cylinder Kit

1шт.

40

Hydraulic Cylinder

( FFSB111965, FFSB1119 68 NLA) (SUB AH207408)

1шт.
