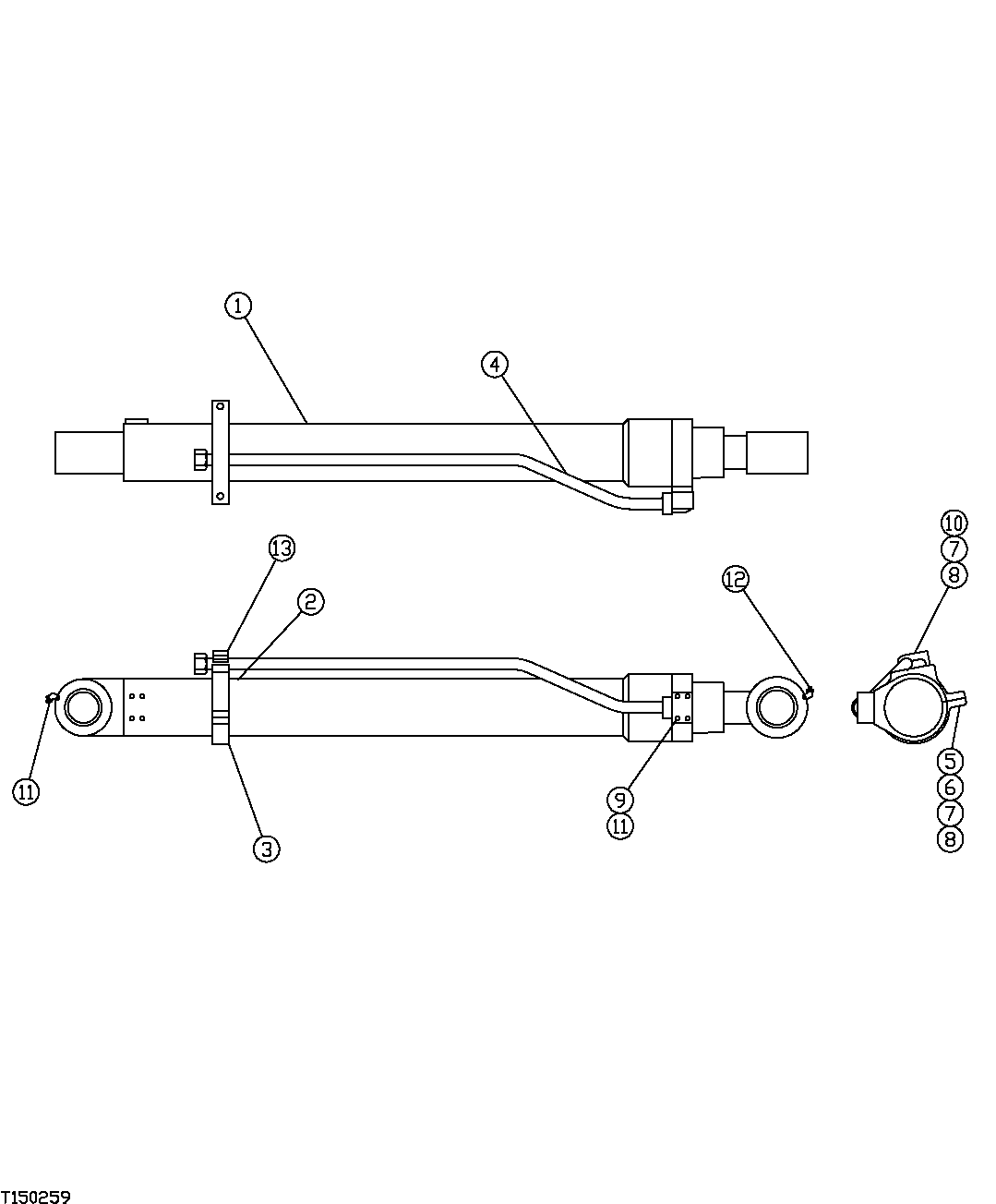

Запчасти John Deere 554 534 - HEELER TILT CYLINDER OIL LINES (SN -200015) 3360 HYDRAULIC SYSTEM

1

AH163278

Hydraulic Cylinder Reman

( FFSB109841 NLA) Compo nents On Following Pages

1шт.

2

FFSB103004

Clamp

1шт.

3

FFSB103003

Clamp

1шт.

4

FFSB109842

Oil Line

1шт.

5

19M7363

Cap Screw

M12 X 60 (SUB FOR FFSB109215)

2шт.

6

14M7275

Nut

M12 (SUB FOR FFSB107245)

2шт.

7

12H301

Lock Washer

1/2" (SUB FOR FFSB107139)

3шт.

8

24M7047

Washer

13 X 24 X 2.500 mm (SUB FOR FFSB105797)

5шт.

9

19M8339

Screw

M10 X 55 (SUB FOR FFSB107524)

4шт.

10

19M8008

Cap Screw

M8 X 35 (SUB FOR FFSB109217)

1шт.

11

AT264360

O-Ring

(SUB FOR FFSB109688, TH104930, 4506430)

1шт.

12

T116334

Lubrication Fitting

(SUB FOR FFSB107456)

2шт.

13

4190126

Clamp

(SUB FOR FFSB108708 ) (SUB FOR TH109830)

1шт.
