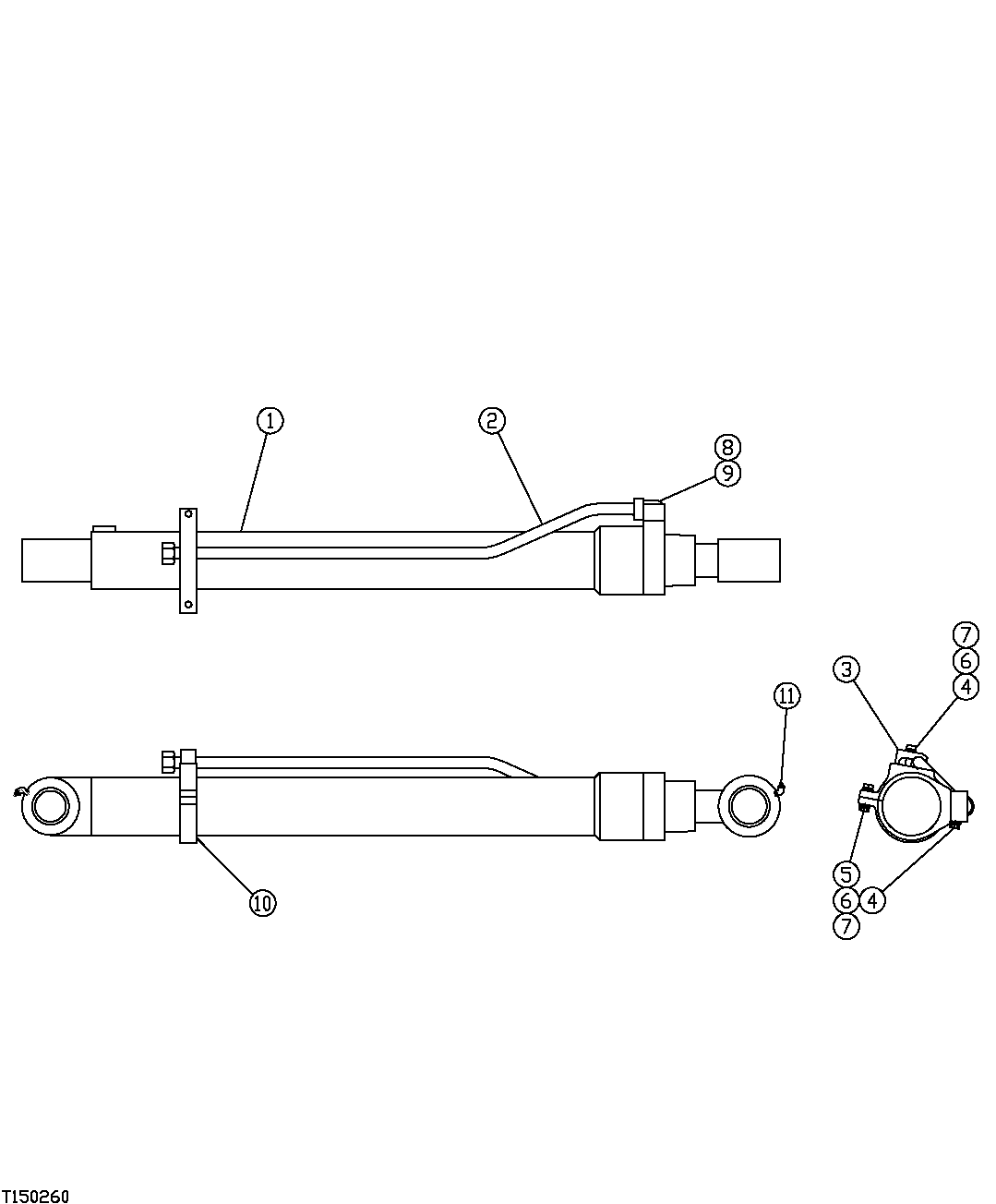

Запчасти John Deere 554 531 - VALVE IN HEAD TILT CYLINDER OIL LINES (SN -200015) 3360 HYDRAULIC SYSTEM

1

AH163278

Hydraulic Cylinder Reman

(TURN AH163278 180° THIS APPLICATION) (SUB FOR FFSB105486) Components On Following Page

1шт.

2

FFSB103094

Oil Line

1шт.

3

4190126

Clamp

(SUB FOR FFSB108708 ) (SUB FOR TH109830)

1шт.

4

19M7361

Cap Screw

M12 X 50 (SUB FOR FFSB109214)

3шт.

5

14M7275

Nut

M12 (SUB FOR FFSB107245)

2шт.

6

12H301

Lock Washer

1/2" (SUB FOR FFSB107139)

3шт.

7

24M7047

Washer

13 X 24 X 2.500 mm (SUB FOR FFSB105797)

5шт.

8

19M8339

Screw

M10 X 55 (SUB FOR FFSB107524)

4шт.

9

AT264360

O-Ring

(SUB FOR FFSB109688, TH104930, 4506430)

1шт.

10

FFSB103004

Clamp

1шт.

11

T116334

Lubrication Fitting

(SUB FOR FFSB109614)

2шт.
