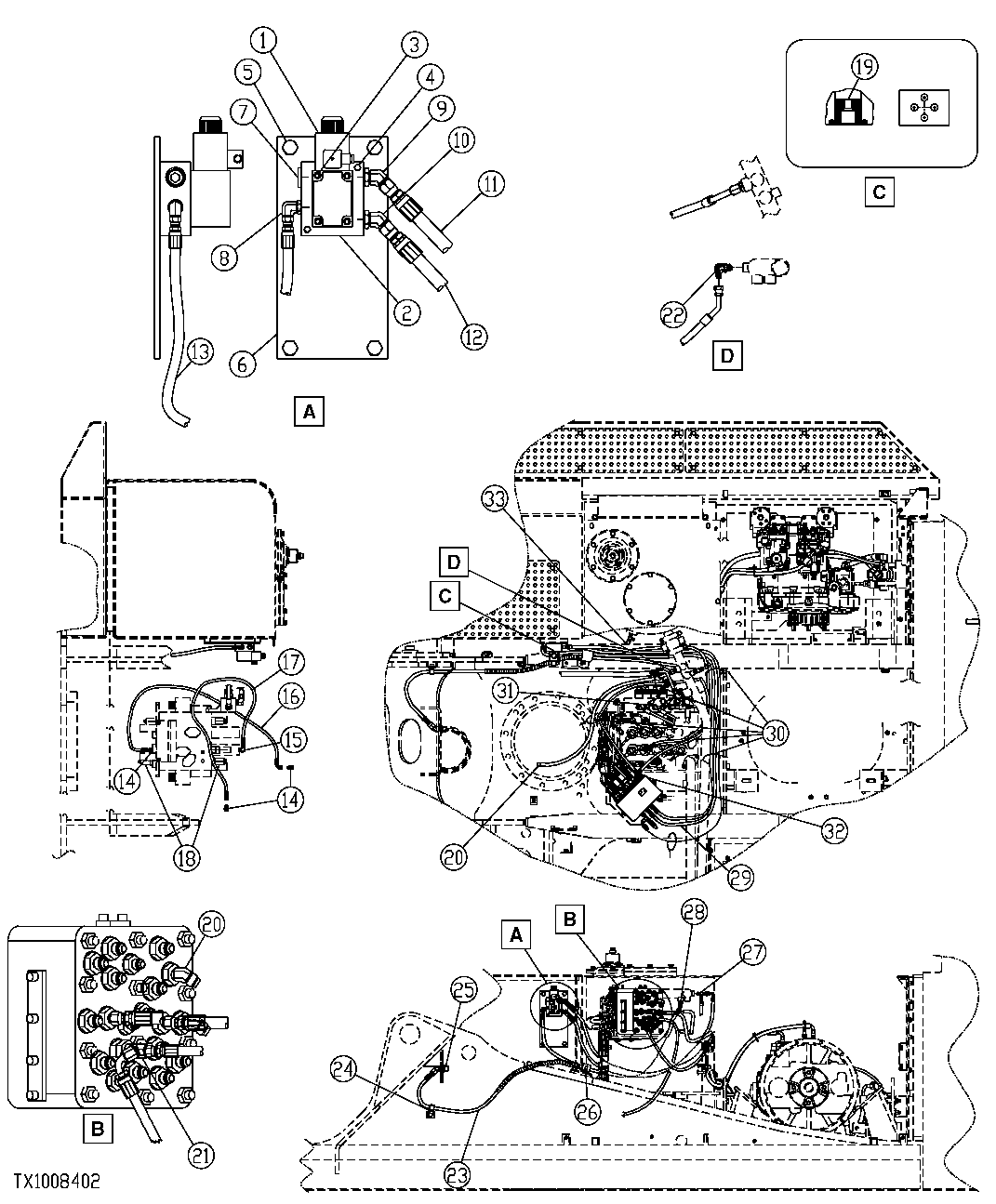

Запчасти John Deere 554 530 - VALVE IN HEAD PILOT PLUMBING 3360 HYDRAULIC SYSTEM

1

FFSB102545

Solenoid Valve

1шт.

2

FFSB102547

Plate

1шт.

3

19H3070

Screw

0.190" X 1-1/4" ( FFSB102861 NLA)

4шт.

4

19M8713

Screw

M6 X 45 (SUB FOR FFSB110136)

2шт.

5

19M7407

Cap Screw

M8 X 25 (SUB FOR FFSB107195)

6шт.

6

FFSB110138

Plate

1шт.

7

X8HP5ON-S

Fitting Plug

(SUB FOR FFSB105066)

1шт.

8

X8C5OX-S

Elbow Fitting

(SUB FOR FFSB106174)

1шт.

9

AN113929

Elbow Fitting

(SUB FOR FFSB109811)

1шт.

10

X8V5OX-S

Elbow Fitting

(SUB FOR FFSB109903 AND FFSB103648)

1шт.

11

FFSB110026

Hydraulic Hose

1шт.

12

FFSB110038

Hydraulic Hose

1шт.

13

FFSB110027

Hydraulic Hose

1шт.

14

X6-6F4OMXS

Adapter Fitting

(SUB FOR FFSB105049)

3шт.

15

4208913

Adapter Fitting

(SUB FOR AT126458)

1шт.

16

FFSB110029

Hydraulic Hose

1шт.

17

FFSB104944

Hydraulic Hose

1шт.

18

4228353

Pressure Relief Valve

(SUB FOR FFSB106048 ) (SUB FOR TH111705)

2шт.

19

FFSB106319

Orifice

2шт.

20

4190244

Adapter Fitting

(SUB FOR FFSB108477 ) (SUB FOR TH106152)

3шт.

21

AT36921

Adapter Fitting

(SUB FOR FFSB104940)

1шт.

22

X6-6C4OMXS

Adapter Fitting

(SUB FOR FFSB104942)

1шт.

23

FFSB110039

Adapter Fitting

(SUB FOR FFSB110211)

1шт.

Hose Guard

1шт.

24

F053301

Holder

( FFSB102835 NLA)

1шт.

25

38H1321

Elbow Fitting

(SUB FOR FFSB104346)

1шт.

T78716

Nut

1шт.

T77857

O-Ring

2шт.

26

AT119290

Clamp

(SUB FOR FFSB105440)

1шт.

27

X8R4OMXS

Adapter Fitting

(SUB FOR FFSB110192)

1шт.

28

4190243

Adapter Fitting

(SUB FOR FFSB109418 ) (SUB FOR TH106151)

1шт.

29

FFSB110037

Hydraulic Hose

1шт.

30

R44302

Tie Band

(SUB FOR FFSB108110)

6шт.

31

X4-4F4OMXS

Adapter Fitting

(SUB FOR FFSB103515)

1шт.

32

4451789

Pipe Plug

(SUB FOR FFSB110896 ) (SUB FOR TH4451789)

1шт.

33

X4FNTX-S

Fitting

(SUB FOR FFSB110895)

1шт.
