529 - CONTROL VALVE TO BOOM LINE HOSES (SINGLE FUNCTION)

Запчасти John Deere 554 529 - CONTROL VALVE TO BOOM LINE HOSES (SINGLE FUNCTION) 3360 HYDRAULIC SYSTEM

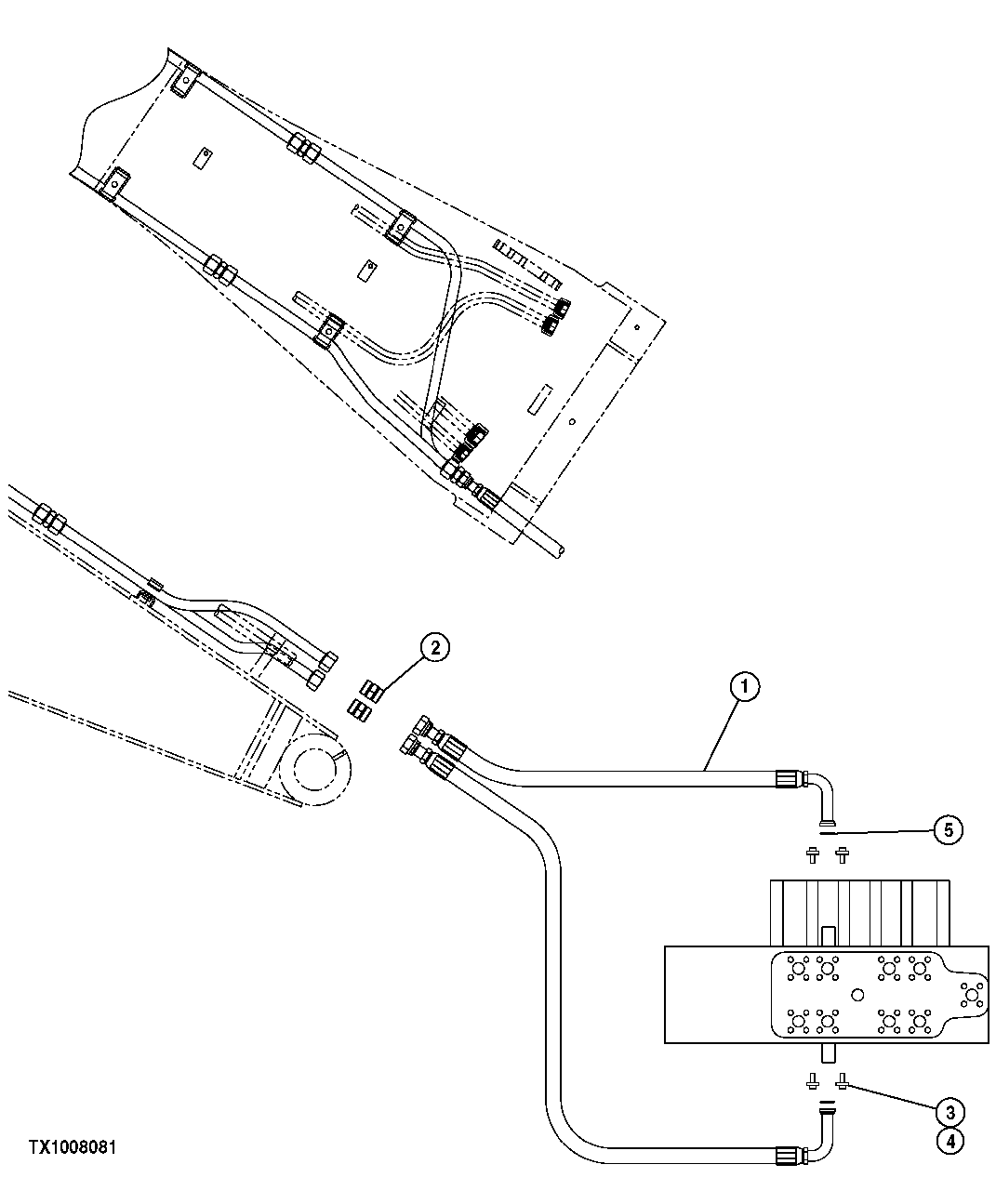

Схема запчастей John Deere 554 - 529 - CONTROL VALVE TO BOOM LINE HOSES (SINGLE FUNCTION) 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

FFSB110028

Hydraulic Hose

2шт.

2

38H1281

Union Fitting

(SUB FOR FFSB102147)

2шт.

T76938

O-Ring

2шт.

3

H61354

Flange Fitting

(SUB FOR FFSB110184)

4шт.

4

19M7576

Screw

M10 X 30 (SUB FOR FFSB107708)

8шт.

5

T78313

O-Ring

(SUB FOR FFSB106430)

2шт.

Выбрано товаров: 6
