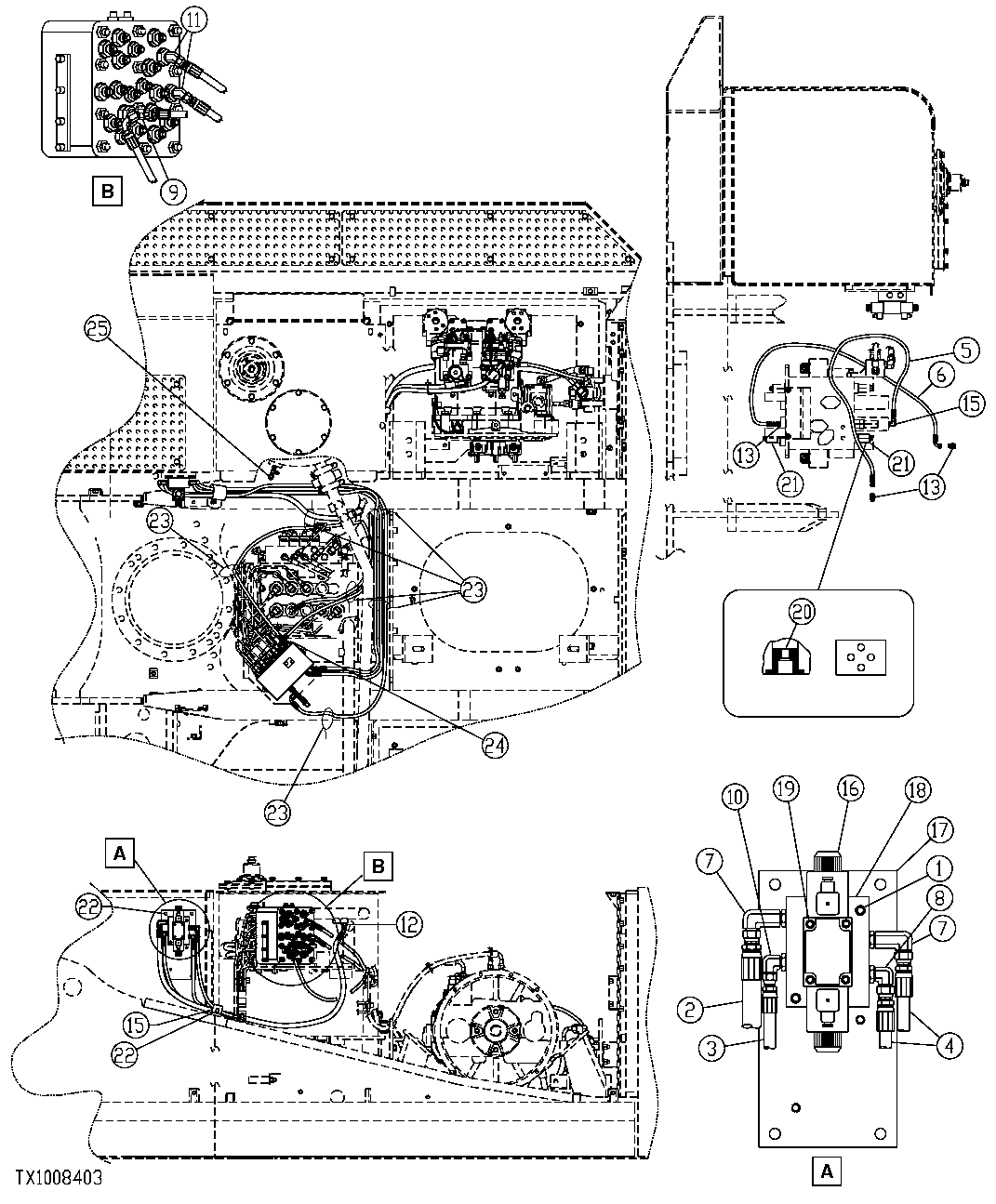

Запчасти John Deere 554 528 - SINGLE FUNCTION PILOT PLUMBING 3360 HYDRAULIC SYSTEM

1

19M8713

Screw

M6 X 45 (SUB FOR FFSB110136)

2шт.

2

FFSB110025

Hydraulic Hose

1шт.

3

FFSB110026

Hydraulic Hose

1шт.

4

FFSB110027

Hydraulic Hose

2шт.

5

FFSB104944

Hydraulic Hose

1шт.

6

FFSB110029

Hydraulic Hose

1шт.

7

AH61439

Elbow Fitting

(SUB FOR FFSB109448)

2шт.

8

X8C5OX-S

Elbow Fitting

(SUB FOR FFSB106174)

1шт.

9

AT36921

Tee Fitting

(SUB FOR FFSB104940)

1шт.

10

X6-8C5OX-S

Elbow Fitting

(SUB FOR FFSB104941)

1шт.

11

4190244

Elbow Fitting

(SUB FOR FFSB108477 ) (SUB FOR TH106152)

2шт.

12

4190243

Adapter Fitting

(SUB FOR FFSB109418 ) (SUB FOR TH106151)

1шт.

13

X6-6F4OMXS

Adapter Fitting

(SUB FOR FFSB105049)

3шт.

14

4208913

Adapter Fitting

(SUB FOR 4208913, FFSB107487 , AT126458)(NOT ILLUSTRATED)

1шт.

15

FFSB110137

Clamp

1шт.

16

FFSB102383

Solenoid Valve

1шт.

17

FFSB110138

Plate

1шт.

18

FFSB102547

Plate

1шт.

19

19H3070

Screw

0.190" X 1-1/4" ( FFSB102861 NLA)

4шт.

20

FFSB106319

Orifice

2шт.

21

4228353

Pressure Relief Valve

(SUB FOR FFSB106048 ) (SUB FOR TH111705)

2шт.

22

19M7407

Cap Screw

M8 X 25 (SUB FOR FFSB107195)

5шт.

23

R44302

Tie Band

(SUB FOR FFSB108110)

ARшт.

24

4451789

Pipe Plug

(SUB FOR FFSB110896 ) (SUB FOR TH4451789)

1шт.

25

X4FNTX-S

Fitting

(SUB FOR FFSB110895)

1шт.
