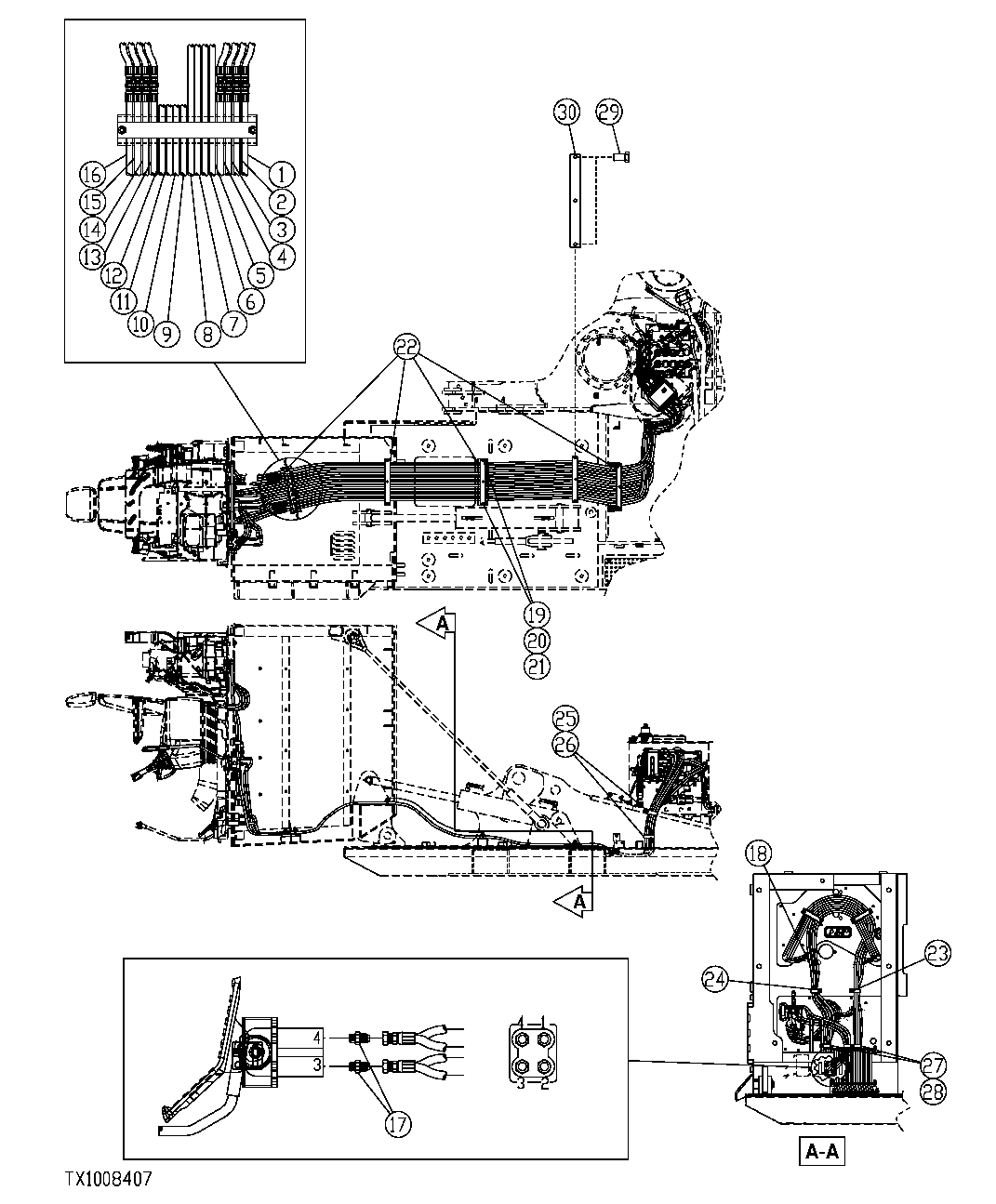

Запчасти John Deere 554 515 - SIDE ENTRY CAB PILOT HOSES FROM SIGNAL MANIFOLD (48 INCH RISER) 3360 HYDRAULIC SYSTEM

1

FFSB110260

Hydraulic Hose

1шт.

2

FFSB110261

Hydraulic Hose

1шт.

3

FFSB110263

Hydraulic Hose

1шт.

4

FFSB110262

Hydraulic Hose

1шт.

5

FFSB110273

Hydraulic Hose

1шт.

6

FFSB110272

Hydraulic Hose

1шт.

7

FFSB110274

Hydraulic Hose

1шт.

8

FFSB110275

Hydraulic Hose

1шт.

9

FFSB110270

Hydraulic Hose

1шт.

10

FFSB110268

Hydraulic Hose

1шт.

11

FFSB110271

Hydraulic Hose

1шт.

12

FFSB110269

Hydraulic Hose

1шт.

13

FFSB110264

Hydraulic Hose

1шт.

14

FFSB110266

Hydraulic Hose

1шт.

15

FFSB110267

Hydraulic Hose

1шт.

16

FFSB110265

Hydraulic Hose

1шт.

17

4200467

Adapter Fitting

(SUB FOR TH108417)

4шт.

18

H77698

Tie Band

( R44302 NOT USED FOR THIS APP LICATION) (SUB FOR FFSB108261)

5шт.

19

24M7096

Washer

10.500 X 18 X 1.600 mm

8шт.

20

12M7066

Lock Washer

10 mm

8шт.

21

14M7274

Nut

M10

8шт.

22

FFSB110347

Clamp

4шт.

23

FFSB107369

Nut

1шт.

24

FFSB110137

Clamp

2шт.

25

FFSB105405

Clamp

2шт.

26

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

27

F010967

Hose Support

(SUB FOR FFSB104269)

3шт.

28

19M7402

Cap Screw

M10 X 25

2шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

29

19M7935

Cap Screw

M10 X 55 (SUB FOR FFSB107954)

2шт.

30

FFSB112976

Clamp

1шт.
