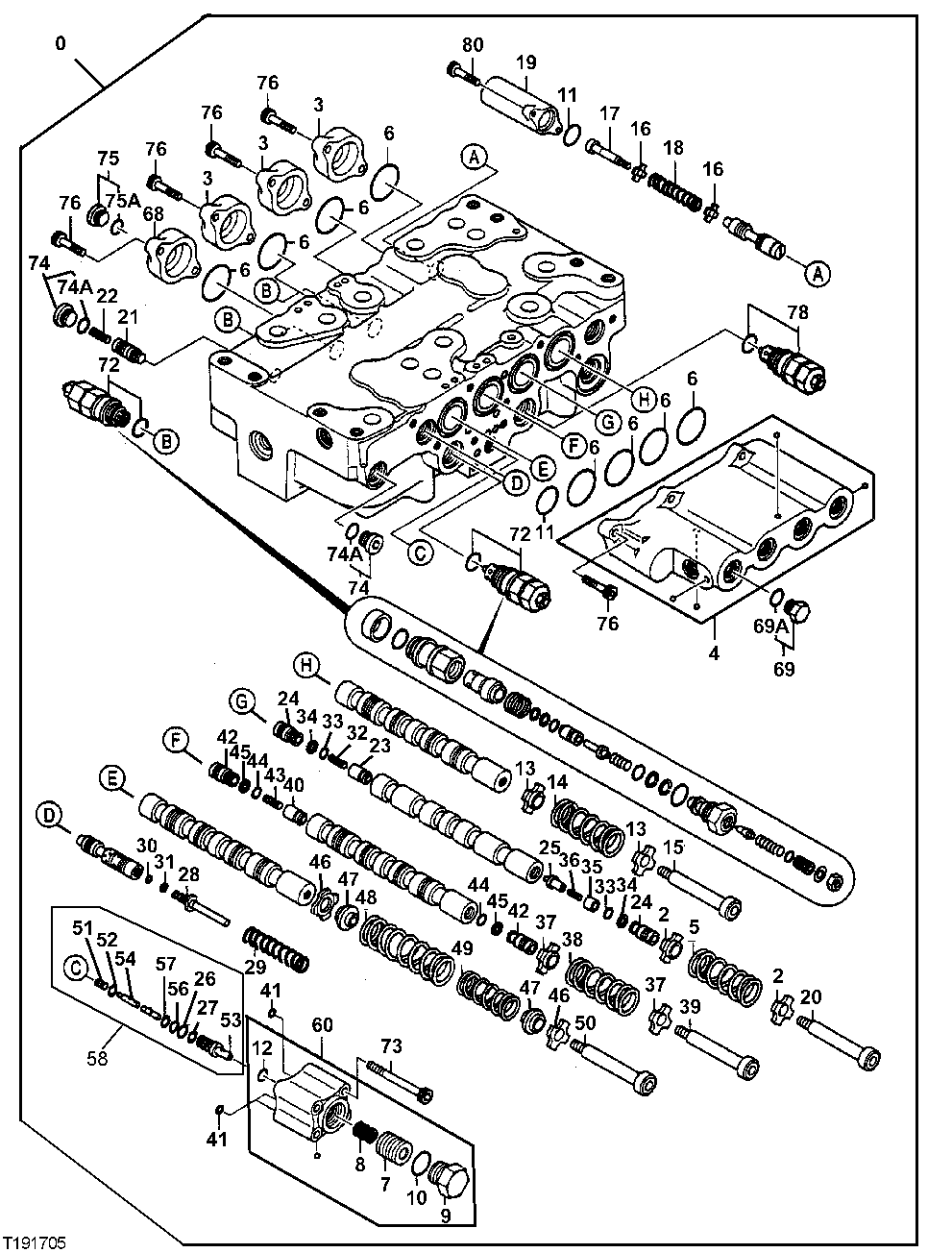

Запчасти John Deere 554 507 - CONTROL VALVE SPOOLS, SEALS AND COVER (FOUR SPOOL SIDE) (CONTINUED) 3360 HYDRAULIC SYSTEM

0

4398652

Flow Control Hyd. Valve

Contains All Items On This Pag e Additional Components Listed On Previous and Following Pages

1шт.

50

0791815

Stop

1шт.

51

0791808

Spring

1шт.

52

0791809

Valve Seat

1шт.

53

Sleeve

( 0791810 NLA)

1шт.

54

Poppet

( 0791811 NLA)

1шт.

56

CH11560

Packing

1шт.

57

4105067

Back-Up Ring

1шт.

58

0791818

Valve

(ASSY)

1шт.

60

4454198

Flow Control Hyd. Valve

1шт.

68

0791816

Cap

1шт.

69

0332914

Drain Plug

(SUB FOR 0309732)

1шт.

69A

CH11570

O-Ring

(SUB FOR 4509180)

1шт.

72

4372039

Pressure Relief Valve

3шт.

73

0791622

Bolt

4шт.

74

0695007

Fitting Plug

2шт.

74A

CH11570

O-Ring

(SUB FOR 4509180)

1шт.

75

0689405

Fitting Plug

1шт.

75A

M800650

Packing

(SUB FOR 957366)

1шт.

76

19M8337

Screw

M10 X 30 (SUB FOR 0459541)

14шт.

78

4358914

Pressure Relief Valve

1шт.

80

12M7006

Lock Washer

6 mm

2шт.
