497 - CONTROL VALVE TO BOOM LINE HOSES (DOUBLE FUNCTION)

Запчасти John Deere 554 497 - CONTROL VALVE TO BOOM LINE HOSES (DOUBLE FUNCTION) 3360 HYDRAULIC SYSTEM

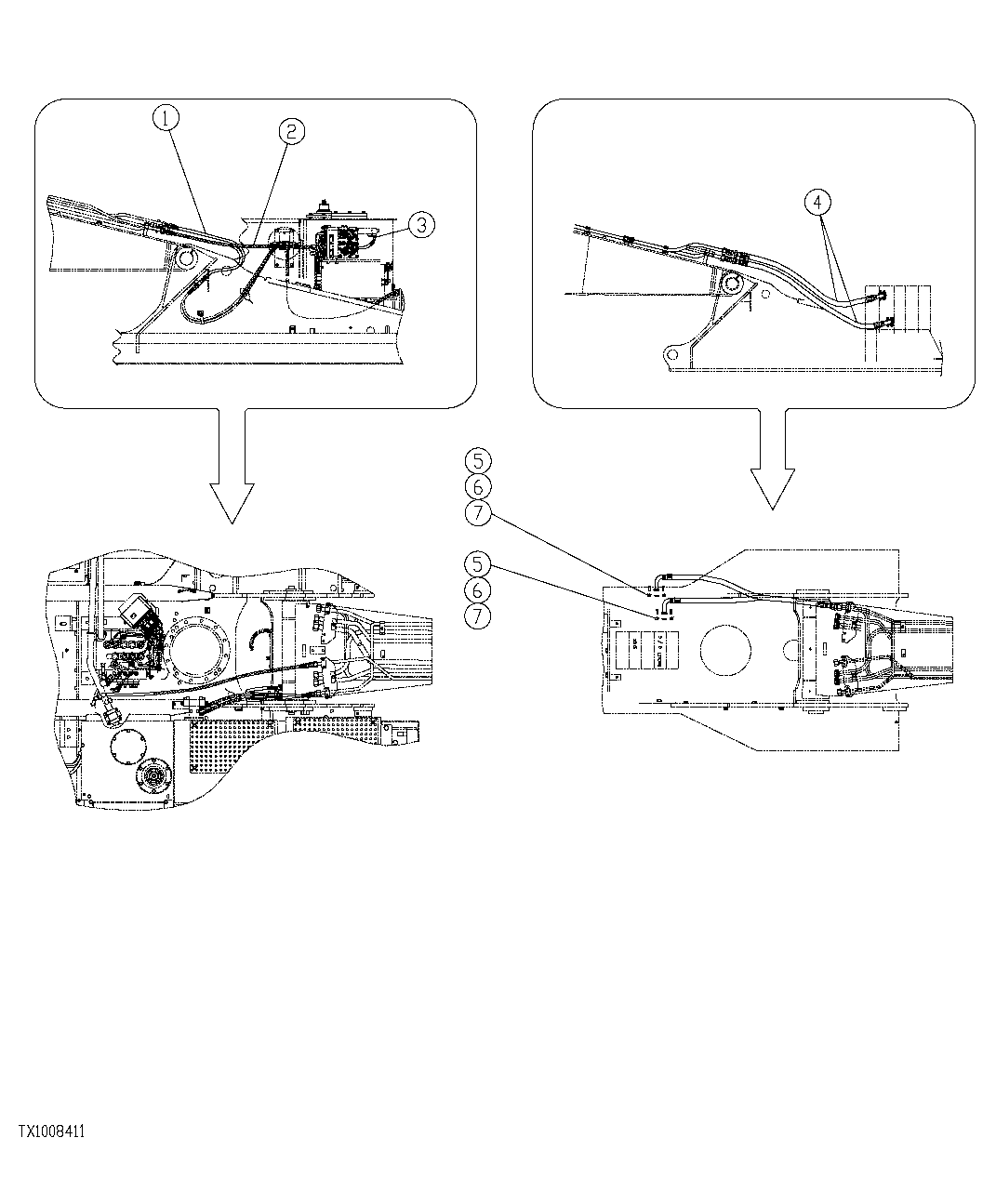

Схема запчастей John Deere 554 - 497 - CONTROL VALVE TO BOOM LINE HOSES (DOUBLE FUNCTION) 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

FFSB110157

Hydraulic Hose

2шт.

2

FFSB111001

Hydraulic Hose

(SUB FOR FFSB111000)

1шт.

XHG-075

Hose Guard

1шт.

3

4190243

Adapter Fitting

(SUB FOR FFSB109418 ) (SUB FOR TH106151)

1шт.

4

FFSB110028

Hydraulic Hose

2шт.

5

T78313

O-Ring

(SUB FOR FFSB106430)

2шт.

6

19M7576

Screw

M10 X 30 (SUB FOR FFSB109271 OR J781030)

8шт.

7

H61354

Flange Fitting

(SUB FOR FFSB110184)

4шт.
