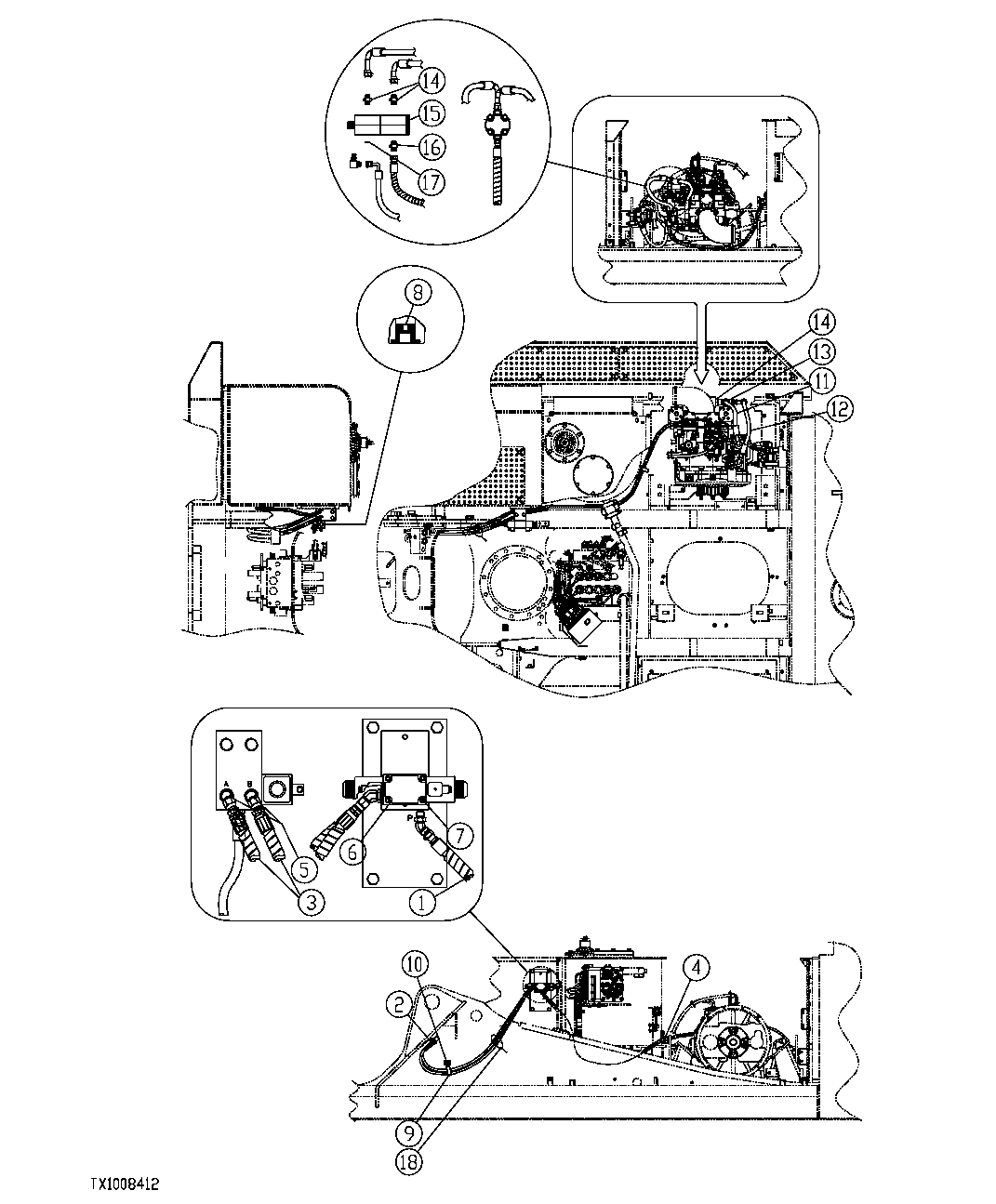

Запчасти John Deere 554 496 - DOUBLE FUNCTION GRAPPLE ROTATE PLUMBING 3360 HYDRAULIC SYSTEM

1

FFSB110033

Hydraulic Hose

(SUB FOR FFSB110204)

1шт.

XHG-075

Hose Guard

1900 mm., 74.80 in., (C TL) (SUB FOR FFSB108096)

1шт.

2

38H1321

Elbow Fitting

(ALSO ORDER T77857 AND T78716 ) (SUB FO R FFSB102227)( 4202422, FFSB109410, AND TH108440 NOT USED FOR THIS APPLICATION)

2шт.

T77857

O-Ring

2шт.

T78716

Nut

2шт.

3

FFSB110032

Hydraulic Hose

(SUB FOR FFSB110210)

2шт.

XHG-075

Hose Guard

400 mm., 15.75 in., (CT L) (SUB FOR FFSB108096)

2шт.

4

F026126

Hose Support

(SUB FOR FFSB105404)

1шт.

5

X8V5OLO-S

Elbow Fitting

(SUB FOR FFSB103644)

2шт.

6

FFSB102384

Solenoid Hydraulic Valve

Grapple

1шт.

7

19H3070

Screw

0.190" X 1-1/4" ( FFSB102861 NLA)

4шт.

8

FFSB104023

Orifice

2шт.

9

FFSB110137

Clamp

1шт.

10

19M7407

Cap Screw

M8 X 25 (SUB FOR FFSB107195)

1шт.

11

FFSB107458

Hydraulic Hose

1шт.

12

FFSB107457

Hydraulic Hose

1шт.

13

FFSB109457

Adapter Fitting

1шт.

14

A853166

Adapter Fitting

(SUB FOR FFSB109423 OR AT107392 OR 4189619)

3шт.

15

9218033

Pump

(SUB FOR FFSB109717, 4278696)

1шт.

16

Adapter Fitting

( FFSB102389 NLA)

1шт.

17

4506418

O-Ring

1шт.

18

R44302

Tie Band

(SUB FOR FFSB108110)

1шт.
