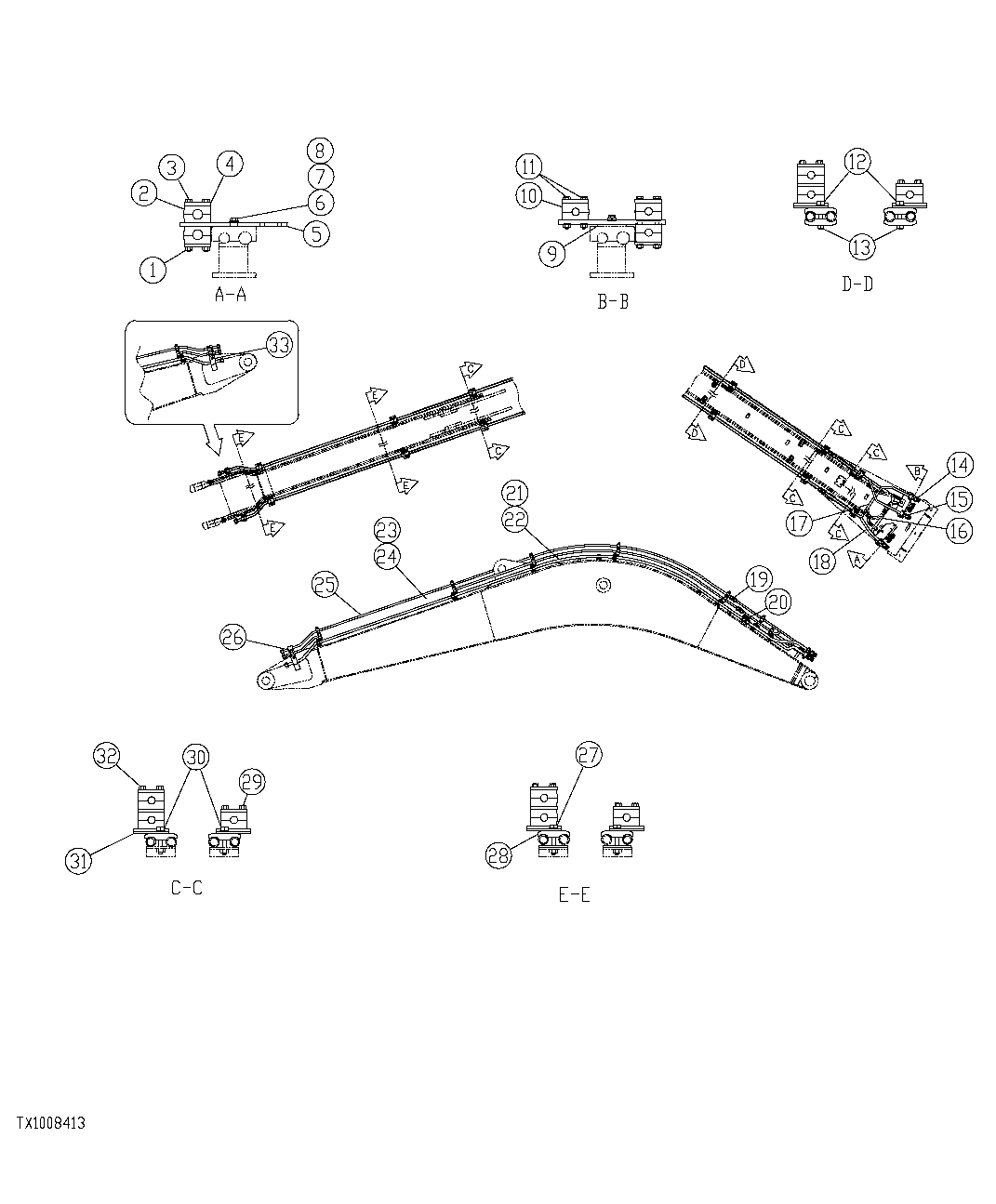

Запчасти John Deere 554 495 - EXCAVATOR BOOM OIL LINES FOR DOUBLE FUNCTION FRONT 3360 HYDRAULIC SYSTEM

1

14M7167

Lock Nut

M10 ( FFSB110984 NLA)

6шт.

2

FFSB100112

Half Clamp

4шт.

3

19M7638

Cap Screw

M10 X 130 ( FFSB110277 NLA)

4шт.

4

FFSB100114

Reinforcement

23шт.

5

FFSB110278

Plate

2шт.

6

19M7943

Cap Screw

M12 X 90 (SUB FOR FFSB109218)

2шт.

7

12M7058

Lock Washer

12 mm (SUB FOR FFSB107 911 ) (SUB FOR 12M7067)

18шт.

8

24M7038

Washer

13.500 X 24 X 2.500 mm (SUB FOR FFSB108102)

6шт.

9

FFSB110337

Plate

5шт.

10

FFSB100113

Half Clamp

42шт.

11

19M8081

Cap Screw

M10 X 80 (SUB FOR FFSB108412)

2шт.

12

19M8348

Cap Screw

M12 X 65 (SUB FOR FFSB107244)

4шт.

13

14M7275

Nut

M12 (SUB FOR FFSB107245)

2шт.

14

FFSB110810

Brake Line

1шт.

15

FFSB110812

Conduit

1шт.

16

FFSB110279

Structural Tube

1шт.

17

FFSB110808

Tube

1шт.

18

FFSB110331

Structural Tube

1шт.

19

38H1272

Union Fitting

(SUB FOR FFSB102148)

6шт.

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

12шт.

20

38H1281

Union Fitting

(SUB FOR FFSB102147)

4шт.

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

8шт.

21

FFSB110333

Structural Tube

1шт.

22

FFSB110335

Dipstick Tube

1шт.

23

FFSB110804

Oil Line

1шт.

24

FFSB110802

Tube

1шт.

25

FFSB110806

Cable And Hose Carrier

1шт.

26

4190124

Clamp

(SUB FOR FFSB108710 ) (SUB FOR TH108727)

1шт.

27

19M7753

Cap Screw

M12 X 70 (SUB FOR FFSB109216)

4шт.

28

FFSB105147

Clamp

15шт.

29

19M8499

Cap Screw

M10 X 60 (SUB FOR FFSB109895)

12шт.

30

19M7363

Cap Screw

M12 X 60 (SUB FOR FFSB109215)

8шт.

31

FFSB110837

Bracket

1шт.

32

19M8166

Cap Screw

M10 X 110 (SUB FOR FFSB1 09896 ) (SUB FOR 19M7346)

12шт.

33

4190126

Clamp

(SUB FOR FFSB108708 ) (SUB FOR TH109830)

2шт.
