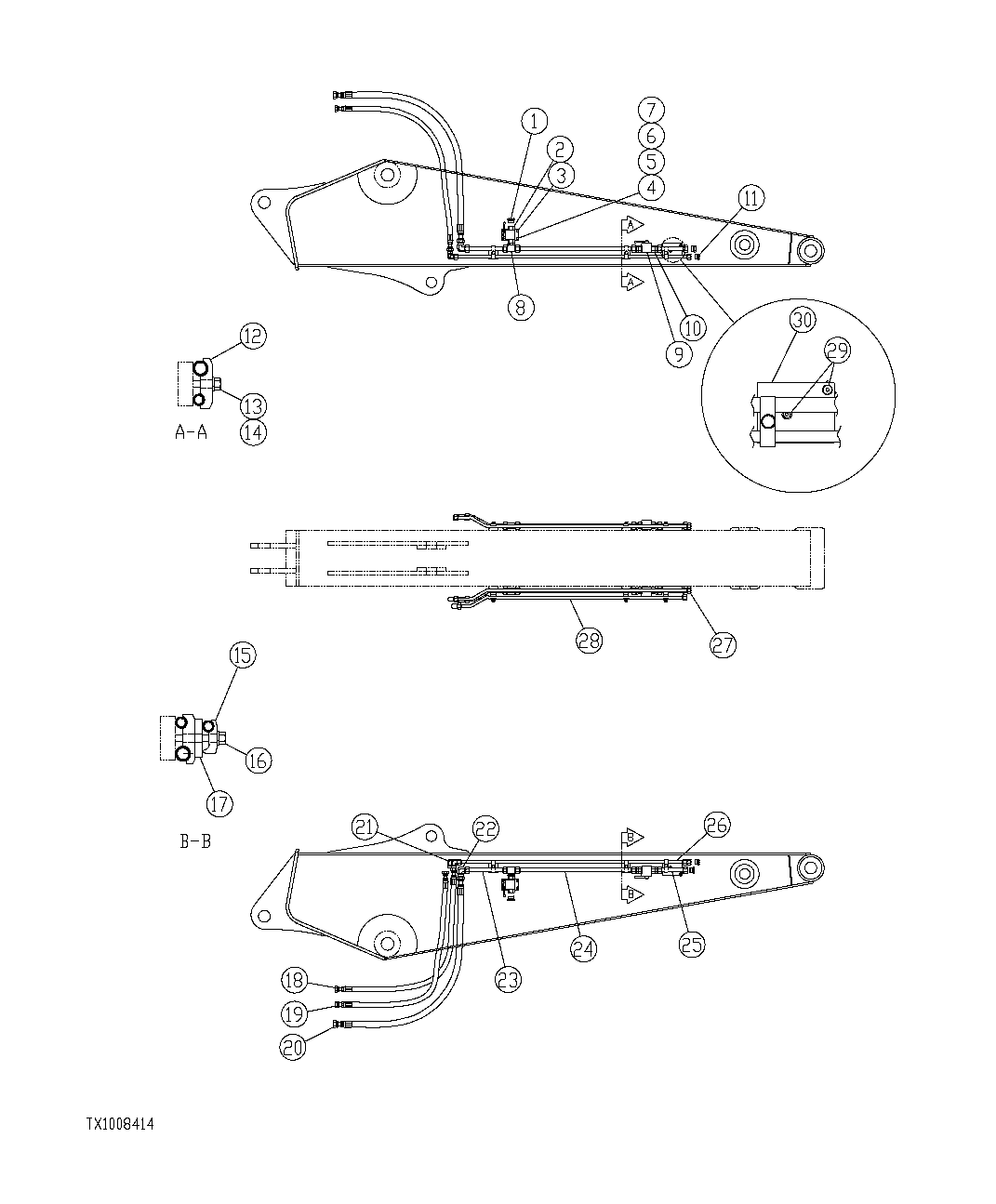

Запчасти John Deere 554 494 - EXCAVATOR ARM PLUMBING FOR DOUBLE FUNCTION FRONT 3360 HYDRAULIC SYSTEM

1

38H1150

Fitting Plug

(SUB FOR FFSB104579)

4шт.

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

1шт.

X16P5ON-S

Fitting Plug

(SUB FOR FFSB105069)

4шт.

2

FFSB103834

Ball Cock Valve

2шт.

3

FFSB110834

Bracket

2шт.

4

19M7163

Cap Screw

M8 X 25 (SUB FOR FFSB109186)

8шт.

19M7881

Screw

M8 X 20 (SUB FOR FFSB109904)

8шт.

5

12M7056

Lock Washer

8 mm (SUB FOR FFSB1033 70 ) (SUB FOR 12M7065)

8шт.

6

24M7055

Washer

8.400 X 16 X 1.600 mm (SUB FOR FFSB108152)

8шт.

7

14M7273

Nut

M8 (SUB FOR FFSB108151)

8шт.

8

38H1020

Tee Fitting

(SUB FOR FFSB103880)

2шт.

R29936

O-Ring

29.743 X 2.946 mm (1.171" X 0.116")

2шт.

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

9

FFSB103835

Ball Cock Valve

2шт.

10

X16F5OLO-S

Adapter Fitting

(SUB FOR FFSB102146)

4шт.

11

38H1149

Fitting Plug

(SUB FOR FFSB104580)

3шт.

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

6шт.

12

4141806

Clamp

(SUB FOR FFSB109515 ) (SUB FOR TH100968)

6шт.

13

19M7388

Cap Screw

M12 X 55 (SUB FOR FFSB108226)

3шт.

14

12M7058

Lock Washer

12 mm (SUB FOR FFSB107 911 ) (SUB FOR 12M7067)

6шт.

15

4190124

Clamp

(SUB FOR TH108727)

3шт.

16

19M7943

Cap Screw

M12 X 90 (SUB FOR FFSB109218)

3шт.

17

FFSB104581

Spacer

3шт.

18

FFSB110823

Hydraulic Hose

(SUB FOR FFSB110823)

2шт.

19

FFSB110824

Hydraulic Hose

1шт.

20

FFSB110825

Hydraulic Hose

2шт.

21

X12ELO-S

Elbow Fitting

(SUB FOR FFSB110822)

3шт.

22

X16ELO-S

Elbow Fitting

(SUB FOR FFSB108351)

2шт.

23

FFSB110816

Air Duct

2шт.

24

FFSB110814

Oil Tube

2шт.

25

FFSB110818

Reach

2шт.

26

FFSB110833

Bracket

1шт.

27

FFSB110820

Cylinder Liner

2шт.

28

FFSB110830

Oil Line

1шт.

29

19M9200

Screw

M10 X 20 (SUB FOR FFSB110828)

4шт.

30

FFSB110832

Bracket

1шт.
