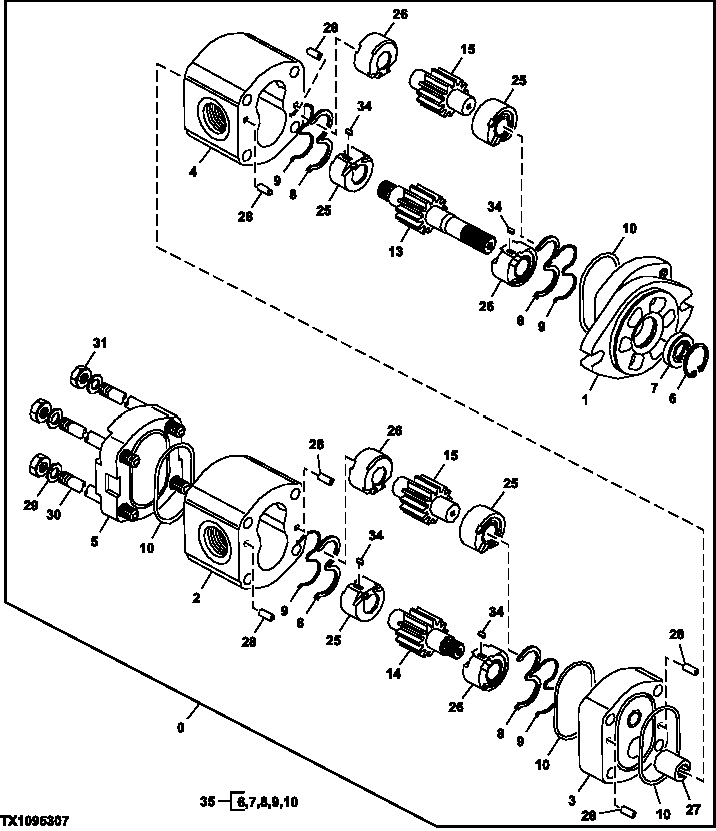

Запчасти John Deere 554 493 - Gear Pump Assembly Components 3360 HYDRAULIC SYSTEM

0

9218033

Pump

GEAR, (SUB FOR AT183093, 4278696)

1шт.

1

Flange

(SUB FOR AT203653)( 2050209 NLA)

1шт.

2

Housing

1шт.

3

0424901

Flange

(SUB FOR AT183922)

1шт.

4

Housing

1шт.

5

Cover

1шт.

6

Snap Ring

(K)

1шт.

7

0408202

Seal

(K) (SUB FOR AT153880)

1шт.

8

Seal

(K)

4шт.

9

Back-Up Ring

(K)

4шт.

10

4488720

O-Ring

(K) (SUB FOR 4206163, TH10 9922, 0354608 OR TH0354608)

4шт.

13

Gear

1шт.

14

Gear

1шт.

15

Gear

2шт.

25

Bushing

4шт.

26

Bushing

4шт.

27

3096565

Coupling

(SUB FOR 0424902)

1шт.

28

Pin

6шт.

29

AT153837

Washer

10.400 X 18 X 2 mm (0. 409" X 0.709" X 0.079")

4шт.

30

2050299

Bolt

(SUB FOR AT183924 OR 0415302)

4шт.

31

14M7274

Nut

M10 (SUB FOR AT183925 ) (SUB FOR 0354613)

4шт.

34

4484119

Key

(SUB FOR AT153838)

4шт.

35

0424903

Seal Kit

(INCLUDES ALL (K) PARTS) (SUB FOR AT183921)

1шт.
