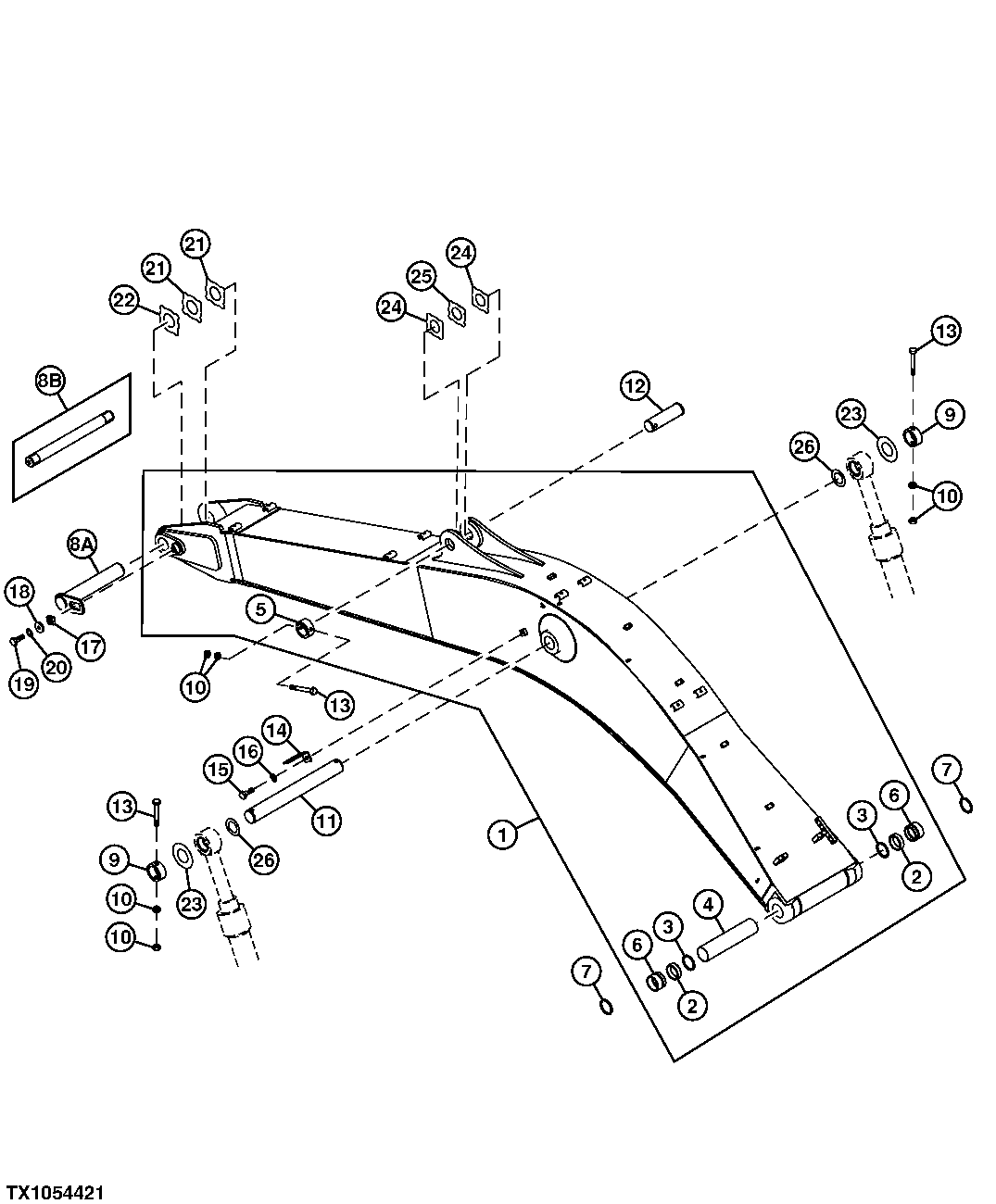

Запчасти John Deere 554 491 - BOOM ASSEMBLY AND PINS (ROADBUILDER FRONT)(REAR ENTRY CAB) 3344 BOOM

1

7035538

Excavator Boom

(SUB FOR TH7035538)

1шт.

2

4402460

Bushing

(SUB FOR TH4402460)

2шт.

3

TH102445

Seal

2шт.

4

4435508

Spacer

(SUB FOR TH4435508)

1шт.

5

4434953

Stop

(SUB FOR TH4434953)

1шт.

6

4443880

Bushing

(SUB FOR TH4443880)

2шт.

7

TH102445

Seal

2шт.

8A

8102161

Pin

(SUB FOR FFSB109929, TH8081448 OR 8081448)

1шт.

8B

AT361204

Pin

(EXPANDER PIN OPTION)

1шт.

T248619

Sleeve

2шт.

9

TH102409

Bushing

92.075 X 120.650 X 50.800 mm (3-5/8" X 4-3/4" X 2")

2шт.

10

14M7277

Nut

M20

6шт.

11

3088574

Pin

(SUB FOR TH3088574)

1шт.

12

3088575

Pin

(SUB FOR TH3088575)

1шт.

13

4435126

Pin Fastener

(SUB FOR TH4435126)

3шт.

14

4224631

Angle

(SUB FOR TH111685)

1шт.

15

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

16

12H317

Lock Washer

9/16"

1шт.

17

4424425

Spacer

(SUB FOR TH4424425 OR FFSB109927)

1шт.

18

4640621

Plate

( 4426128 NLA)

1шт.

19

T116332

Bolt

M18 X 40 (SUB FOR FFSB113548)

1шт.

20

J257218

Lock Washer

(SUB FOR AT250277 OR FFSB109364)

1шт.

21

4470743

Thrust Washer

(SUB FOR 4444284 OR FFSB111690)

2шт.

22

4444285

Thrust Washer

(SUB FOR TH4444285 OR FFSB111691)

1шт.

23

4444755

Thrust Washer

(SUB FOR TH4444755)

2шт.

24

4444286

Thrust Washer

(SUB FOR TH4444286)

2шт.

25

4444287

Thrust Washer

(SUB FOR TH4444287)

1шт.

26

4476062

Thrust Washer

(SUB FOR 4450013, TH4450013)

2шт.
