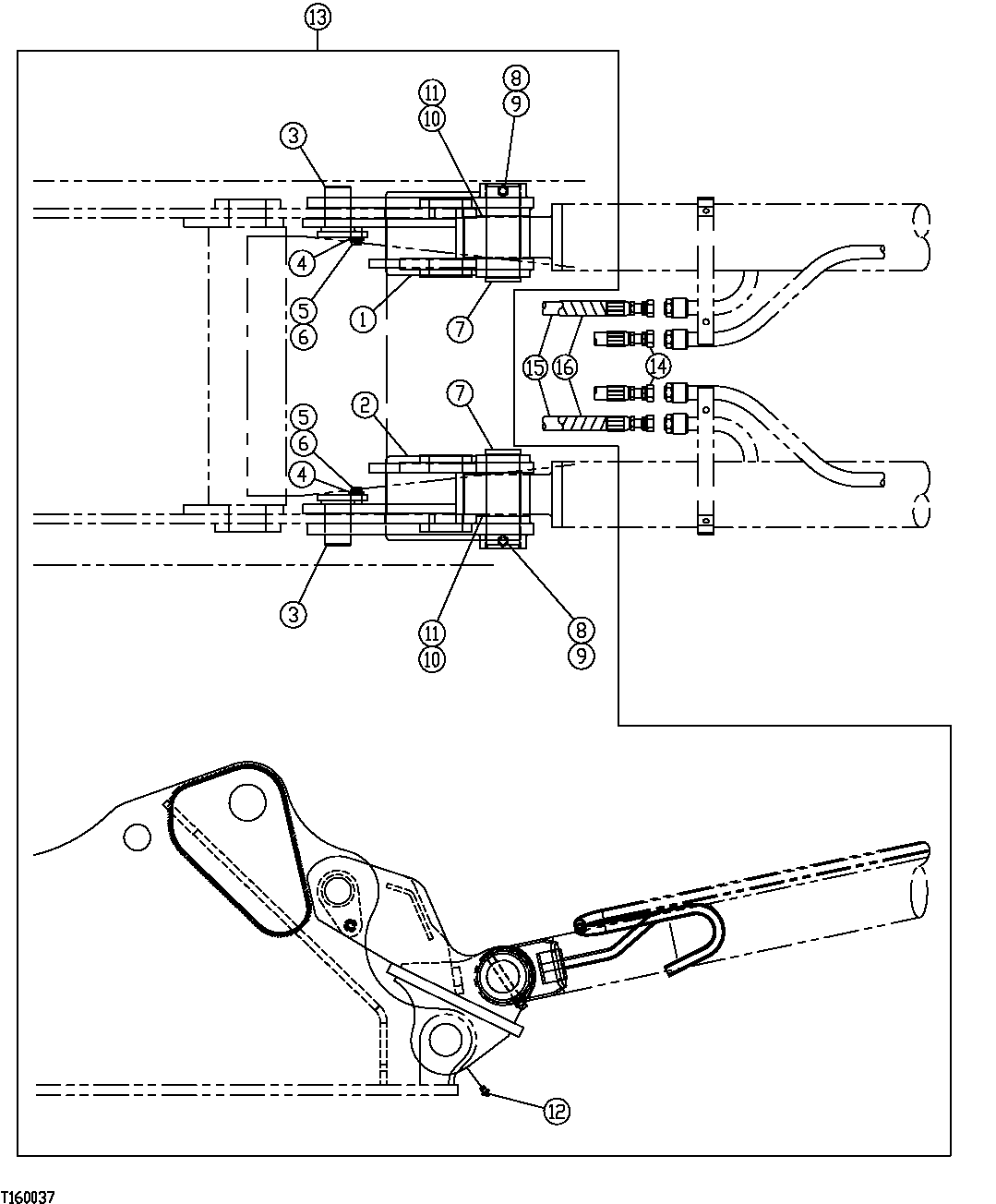

Запчасти John Deere 554 490 - BOOM HOIST ADAPTER AND HOSES (REAR ENTRY CAB) 3344 BOOM

1

FFSB104063

Adapter Fitting

Left

1шт.

2

FFSB104064

Adapter Fitting

Right

1шт.

3

FFSB108070

Pin Fastener

2шт.

4

FFSB103467

Spacer

2шт.

5

12M7058

Lock Washer

12 mm (SUB FOR FFSB107 911 ) (SUB FOR 12M7067)

2шт.

6

19M7403

Cap Screw

M12 X 35 (SUB FOR FFSB103477)

2шт.

7

FF105528

Pin

(SUB FOR FFSB109930)

2шт.

8

19M7954

Cap Screw

M16 X 150 (SUB FOR FFSB109221)

2шт.

9

14M7276

Nut

M16 (SUB FOR FFSB108865)

4шт.

10

4361179R

Thrust Washer

(SUB FOR FFSB109802, 4361179 OR AT214006)

6шт.

11

4361604R

Thrust Washer

(SUB FOR FFSB109804, 4361604 OR AT214008)

6шт.

12

T162396

Lubrication Fitting

(SUB FOR FFSB109615)

2шт.

13

Kit

(WHOLE GOODS) ( AT280810 NLA) Boom Hoist Adapter

1шт.

14

FFSB106027

Hydraulic Hose

(SUB FOR FFSB108312, THIS APPLICATION)

2шт.

15

FFSB108310

Hydraulic Hose

2шт.

FFSB106027

Hydraulic Hose

2шт.

16

XHG-125

Hose Spring Guard

(SUB FOR FFSB108315)

2шт.
