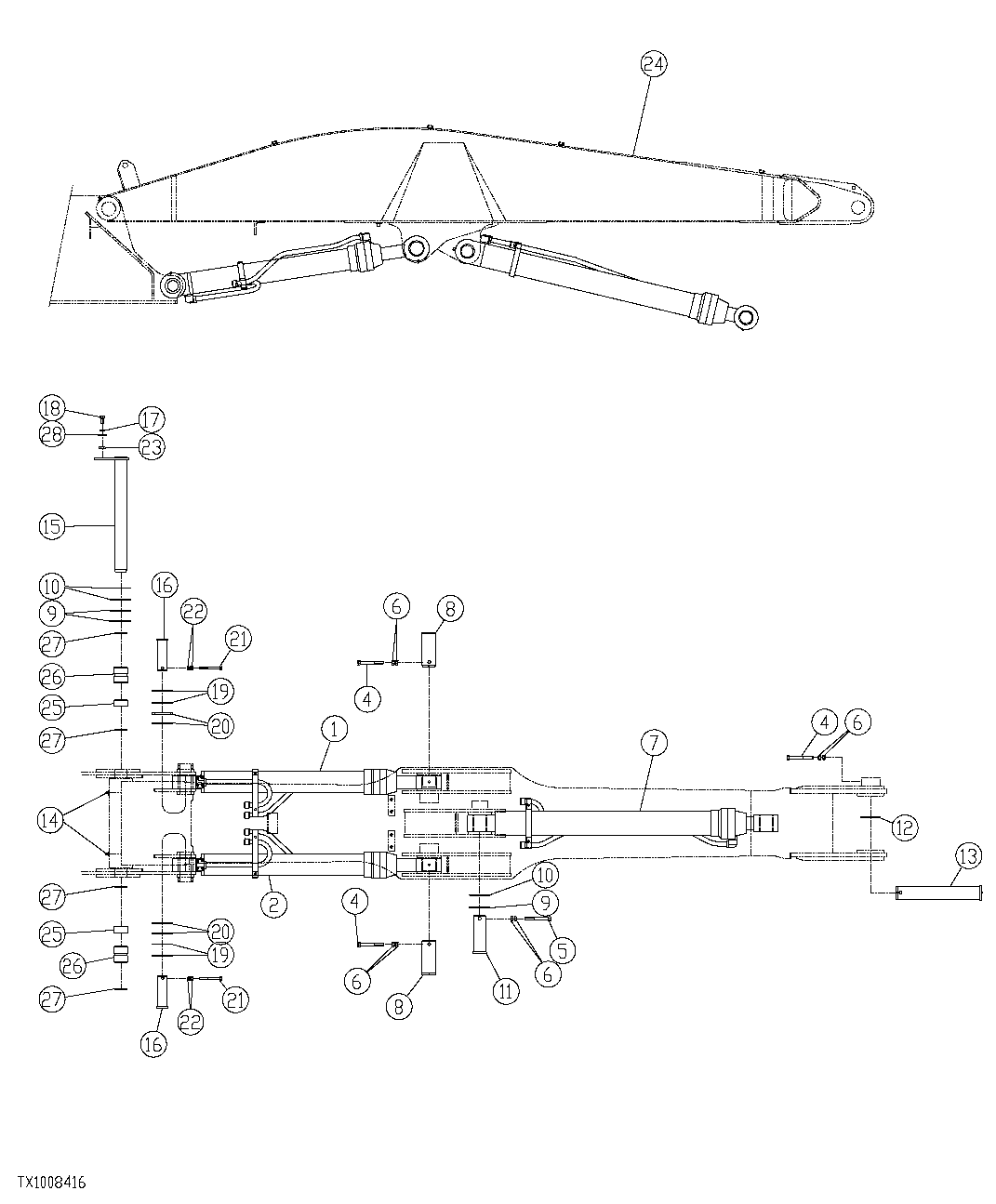

Запчасти John Deere 554 488 - LOG LOADER BOOM, BUSHINGS AND ATTACHING PINS 3344 BOOM

0

4640621

Plate

( 4426128 NLA)

1шт.

1

Hydraulic Cylinder

( FFSB107100, 9218634, OR FF SB104899 NLA) (LH) (BOOM) (SEE BOOM CYLINDER PAGE FOR DETAIL)

1шт.

4641544

Hydraulic Cylinder

(SUB FOR 4656437)(LEFT BOOM CYLINDER) (MUST REPLACE RIGHT AND LEFT CYLINDERS AS A PAIR) (COMPONENTS ON SEPARATE PAGE )

1шт.

2

Hydraulic Cylinder

( FFSB110793, 9218634, OR FF SB104898 NLA) (RH) (BOOM) (SEE BOOM CYLINDER PAGE FOR DETAIL)

1шт.

4641543

Hydraulic Cylinder

(SUB FOR 4656437)(RIGHT BOOM CYLINDER) (MUST REPLACE RIGHT AND LEFT CYLINDERS A S A PAIR) (COMPONENTS ON SEPARATE PAGE)

1шт.

3

Bushing

( FFSB102564 NLA) (SUB 4402460 AND 4443880)

2шт.

4

19M8100

Cap Screw

M20 X 180 (SUB FOR FFSB109230)

3шт.

5

19M8503

Cap Screw

M20 X 160 (SUB FOR FFSB109229)

1шт.

6

14M7277

Nut

M20 (SUB FOR FFSB109330)

8шт.

7

Hydraulic Cylinder

( 9218636, FFSB104900 NLA) (ARM ) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

Hydraulic Cylinder

(ARM) (W/O LINES) (COMPONEN TS NOT CURRENTLY AVAILABLE)

1шт.

4641545

Hydraulic Cylinder

(SUB FOR FFSB115435)(ARM) (S EE SEPARATE PAGE FOR DETAIL)

1шт.

8

FF105529

Pin

(SUB FOR FFSB107285)

2шт.

9

TH106308

Washer

(SUB FOR FFSB108128)

3шт.

10

TH106307

Washer

(SUB FOR FFSB108127)

3шт.

11

FFSB107532

Pin Fastener

1шт.

12

FFSB113080

Wear Plate

(SUB FOR FFSB108121, TH102423 AND 4144513)

1шт.

13

FFSB107288

Pin Fastener

1шт.

14

JD7769

Lubrication Fitting

(SUB FOR FFSB104342)

2шт.

15

Pin

( 8081448 NLA) (SUB FOR FFSB109929)

1шт.

8102160

Pin

1шт.

16

FF105528

Pin

(SUB FOR FFSB109930)

2шт.

17

J257218

Lock Washer

(SUB FOR FFSB109364 ) (SUB FOR AT250277)

1шт.

18

T116332

Bolt

(SUB FOR FFSB108707)

1шт.

19

TH104296

Washer

(SUB FOR FFSB108123)

4шт.

20

TH104297

Washer

(SUB FOR FFSB108124)

4шт.

21

19M7954

Cap Screw

M16 X 150 (SUB FOR FFSB109221)

2шт.

22

14M7276

Nut

M16 (SUB FOR FFSB109328)

4шт.

23

4424425

Spacer

(SUB FOR FFSB109927)

1шт.

24

FFSB109136

Main Boom

(ALSO ORDER (2) 4402460, (2 ) 4443880 AND (4) TH102445)

1шт.

25

4402460

Bushing

(SUB FOR FFSB112296)

2шт.

26

4443880

Bushing

(SUB FOR FFSB112295)

2шт.

27

TH102445

Seal

(SUB FOR FFSB108289)

4шт.
