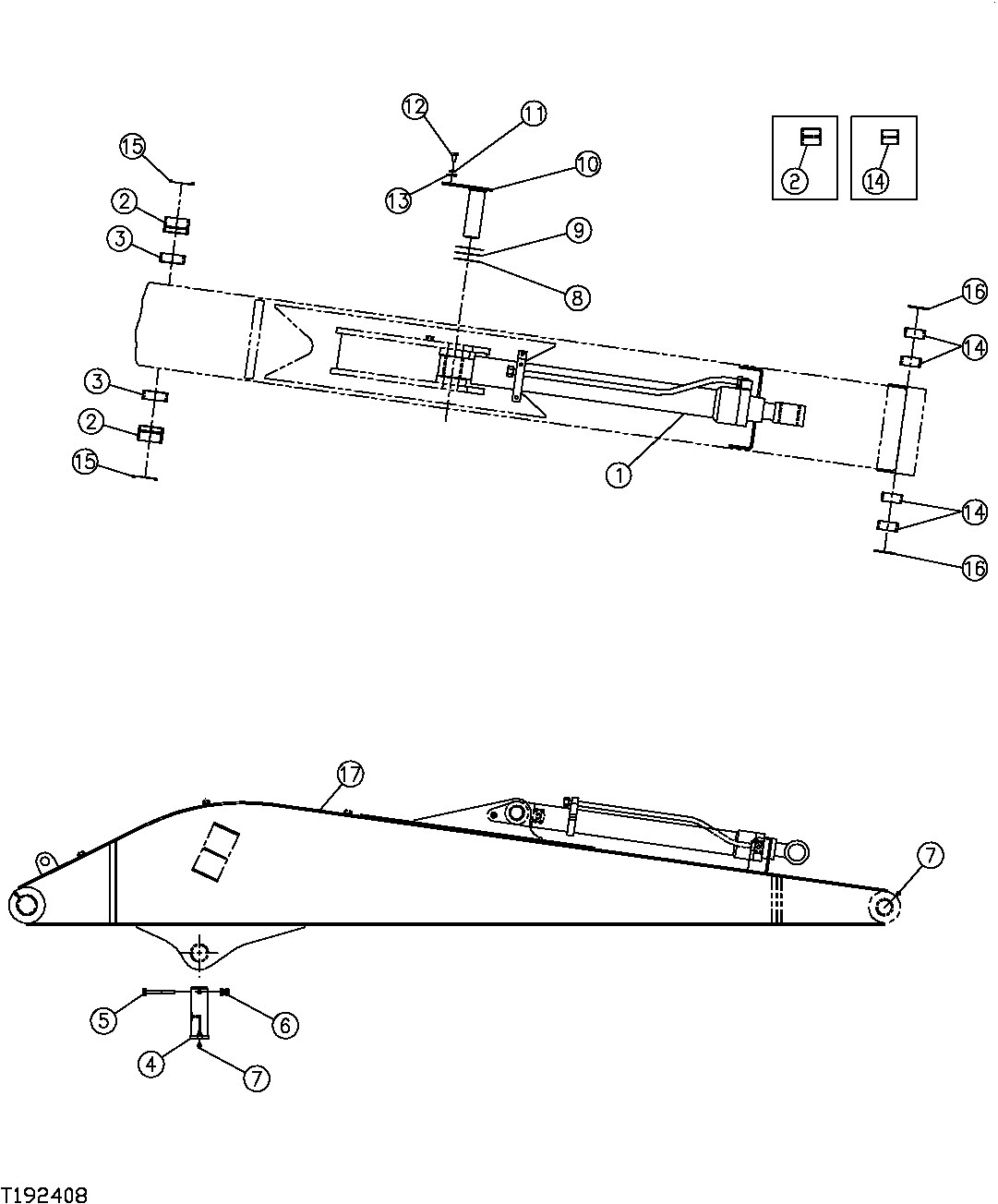

Запчасти John Deere 554 482 - VALVE IN HEAD ARM, PINS AND BUSHINGS 3340 BACKHOE AND EXCAVATOR FRAMES

1

AH163278

Hydraulic Cylinder Reman

1шт.

Hydraulic Cylinder

( FFSB111968 NLA)

1шт.

AH207408

Hydraulic Cylinder

(SUB FOR FFSB113079)

1шт.

2

4443885

Bushing

(SUB FOR FFSB100055)

2шт.

3

4364501

Bushing

2шт.

4

FFSB107287

Pin Fastener

1шт.

5

19M8503

Cap Screw

M20 X 160 (SUB FOR FFSB109229)

1шт.

6

14M7277

Nut

M20 (SUB FOR FFSB109330)

2шт.

7

JD7769

Lubrication Fitting

(SUB FOR FFSB104342)

2шт.

8

4367410R

Thrust Washer

(SUB FOR FFSB108125, TH105592 OR 4367410)

1шт.

9

4366692R

Thrust Washer

(SUB FOR FFSB108126, 4366692 OR TH105593)

2шт.

10

FF105535

Pin

(SUB FOR FFSB107528)

1шт.

11

12M7069

Lock Washer

16 mm (SUB FOR FFSB109363)

1шт.

12

19M8029

Cap Screw

M16 X 30 (SUB FOR FFSB108861)

1шт.

13

FFSB105526

Spacer

1шт.

14

4352398

Bushing

(SUB FOR FFSB102565)

2шт.

4352398

Bushing

(SUB FOR FFSB102565)

4шт.

15

TH102411

Seal

2шт.

16

TH102446

Seal

2шт.

17

Arm

( FFSB105475 NLA)

1шт.

FFSB113265

Arm

1шт.
