Запчасти John Deere 554 473 - SEVERE DUTY PLATE LIP BUCKET TOOTH ASSEMBLY (SEE FOOTNOTE) 3302 BUCKETS

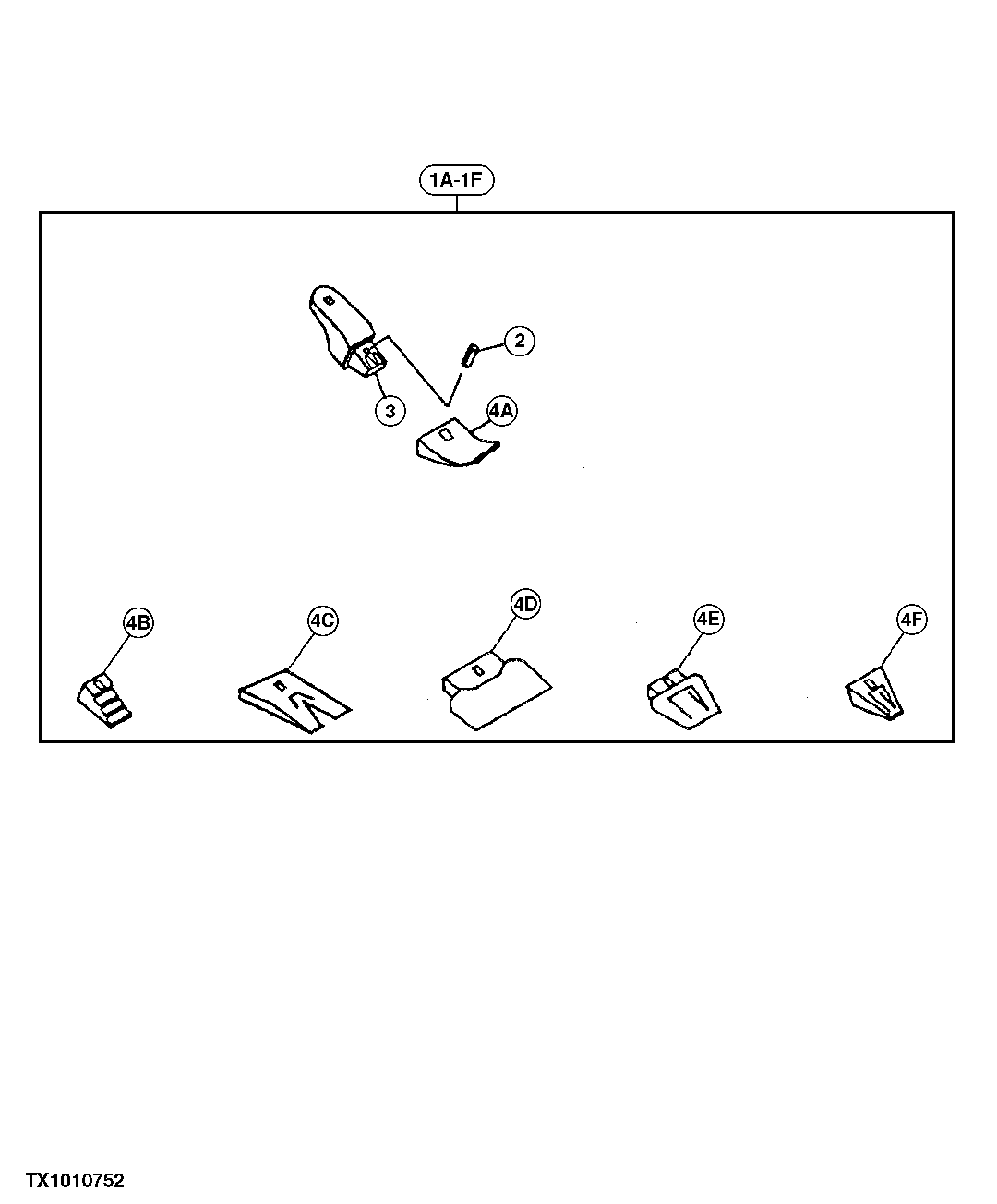

Схема запчастей John Deere 554 - 473 - SEVERE DUTY PLATE LIP BUCKET TOOTH ASSEMBLY (SEE FOOTNOTE) 3302 BUCKETS

Артикул

Название

Примечание

Количество

1A

Kit

(TOOTH) (FANGGS™) ( AT163548 NLA)

1шт.

1B

Kit

(TOOTH) (STANDARD) ( AT163549 NLA)

1шт.

1C

Kit

(TOOTH) (TWIN TIGER) ( AT163553 NLA)

1шт.

1D

Kit

(TOOTH) (FLARE) ( AT163552 NLA)

1шт.

1E

Kit

(TOOTH) (ABRASION PANEL) ( AT163551 NLA)

1шт.

1F

Kit

(TOOTH) (TIGER) ( AT163550 NLA)

1шт.

1G

Kit

(A) (ESCO STANDARD)(TOOTH) ( AT163554 NLA)

1шт.

1H

Kit

(A) (ESCO TWIN TIGER) (TOOTH) ( AT163557 NLA)

1шт.

1I

Kit

(A) (ESCO FLARE) (TOOTH) ( AT163556 NLA)

1шт.

1J

Kit

(A) (ESCO TIGER) (TOOTH) ( AT163555 NLA)

1шт.

1K

Kit

(A) (CATERPILLAR REPLACEMENT FANGGS)(TOOTH) ( AT167196 NLA)

1шт.

1L

Kit

(A) (CATERPILLAR REPLACEMENT S TANDARD)(TOOTH) ( AT167197 NLA)

1шт.

1O

Kit

(A) (SUPER V-STYLE EV39SYL TOOTH KIT) ( AT199361 NLA)

1шт.

2

TP400HD

Pin

(SUB FOR PTP400HD)

1шт.

EX37VPN

Pin

(A) (B) (ESCO VERTALOK)

1шт.

3

T802X400

Shank

(SUB FOR PT802X400)

1шт.

Bucket Tooth Adapter

(A) (B) ( EX5856-37V NLA) (ESCO VERTALOK)

1шт.

4A

TF400

Tooth

1шт.

4B

TX400

Tooth

1шт.

4C

TX400WT

Tooth

1шт.

4D

TX400F

Tooth

1шт.

4E

TX400AP

Tooth

1шт.

4F

TT400

Tooth

1шт.

4G

EX37SYL

Tooth

(A) (B) EX5824-37 NLA

1шт.

4H

Tooth

(A) (B) EX37TVIP NLA (ESCO TWIN TIGER)

1шт.

4I

Tooth

(A) (B) EX37S7F NLA (ESCO FLARE)

1шт.

4J

Tooth

(A) EX37VIP NLA (B) (ESCO TIGER)

1шт.

5

EX37VPL

Plug

(A) (B)

1шт.

Выбрано товаров: 28
