Запчасти John Deere 554 470 - HEAVY DUTY BUCKET TOOTH ASSEMBLY (CONTINUED) (SEE FOOTNOTE) 3302 BUCKETS

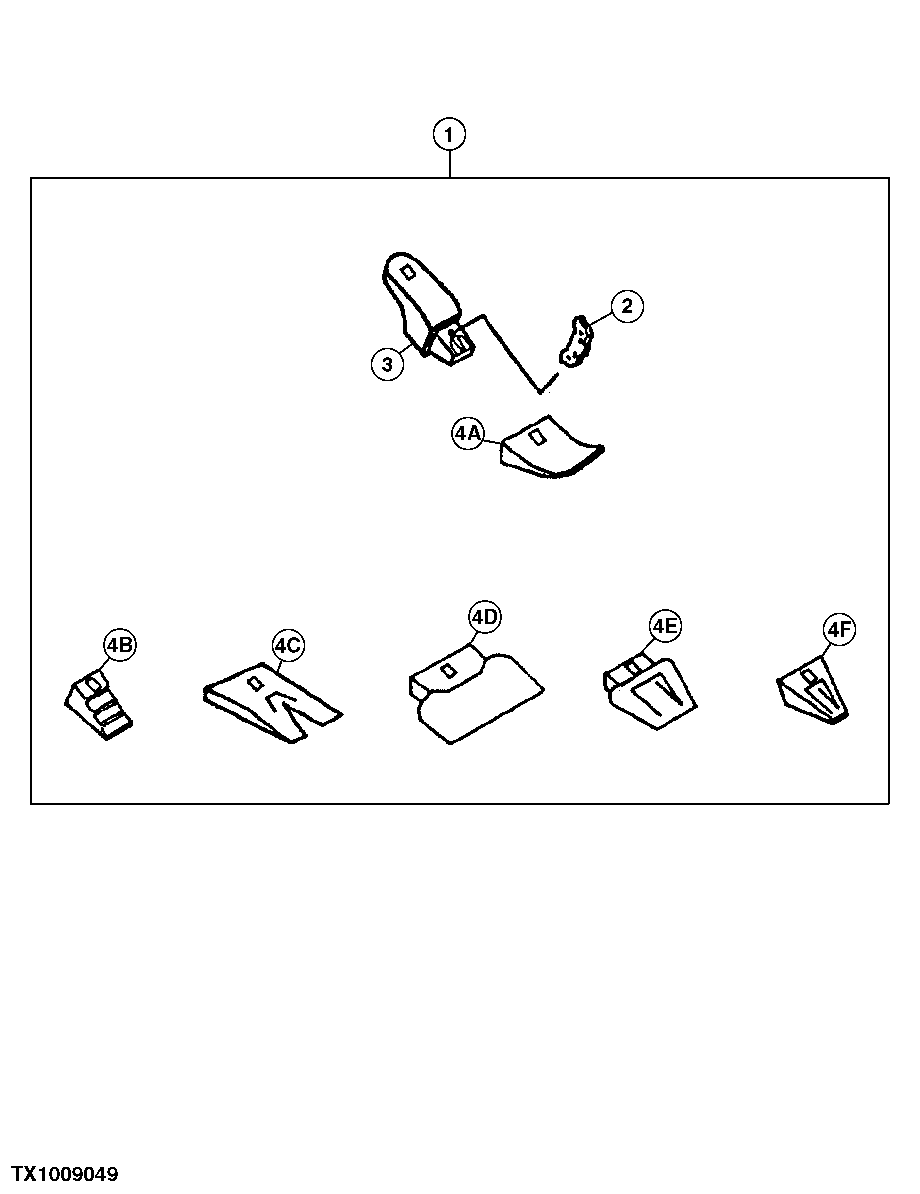

Схема запчастей John Deere 554 - 470 - HEAVY DUTY BUCKET TOOTH ASSEMBLY (CONTINUED) (SEE FOOTNOTE) 3302 BUCKETS

Артикул

Название

Примечание

Количество

2

TP160

Pin

(SUB FOR TP160L, THIS APPLICATIO N)(USE WITH 310 TOOTH ASSEMBLIES)

1шт.

TK330

Pin

(USE WITH 330 TOOTH ASSEMBLIES)

1шт.

TK290

Pin

(USE WITH 290 TOOTH ASSEMBLIES)

1шт.

EX27VPN

Pin

(A) (B) (ESCO)

1шт.

T9J2358

Pin Fastener

(A) (CATERPILLAR REPLACEMENT)

1шт.

3

T153X310

Bucket Tooth Adapter

(USE WITH 310 TOOTH ASSEMBLIES)

1шт.

T158X330

Bucket Tooth Adapter

(USE WITH 330 TOOTH ASSEMBLIES)

1шт.

T158X290

Bucket Tooth Adapter

(USE WITH 290 TOOTH ASSEMBLIES)

1шт.

Bucket Tooth Adapter

(A) (B) EX5850-27V NLA (ESCO)

1шт.

T3G8354

Bucket Tooth Adapter

(A) (CATERPILLAR REPLACEMENT)

1шт.

4A

TF310

Tooth

(ALSO ORDER TP160L)(FANGGS™)

1шт.

TF330

Tooth

(FANGGS™)

1шт.

TF290

Tooth

(FANGGS™)

1шт.

4B

TX310

Tooth

(ALSO ORDER TP160L)(STANDARD)

1шт.

TX330

Tooth

(STANDARD)

1шт.

TX290

Tooth

(STANDARD)

1шт.

4C

TX310WT

Tooth

(ALSO ORDER TP160L)(TWIN TIGER)

1шт.

TX330WT

Tooth

(TWIN TIGER)

1шт.

TX290WT

Tooth

(TWIN TIGER)

1шт.

4D

TX310F

Tooth

(ALSO ORDER TP160L)

1шт.

4E

TX310AP

Tooth

(ALSO ORDER TP160L)

1шт.

4F

TT310

Tooth

(ALSO ORDER TP160L)(TIGER)

1шт.

TT330

Tooth

(TIGER)

1шт.

TT290

Tooth

(TIGER)

1шт.

4G

EX27SYL

Tooth

(A) (B) (ESCO STANDARD)

1шт.

4H

EX27TVIP

Tooth

(A) (B) (ESCO TWIN TIGER)

1шт.

4I

Tooth

(A) (B) EX27S6F NLA (ESCO FLARE)

1шт.

4J

EX27VIP

Tooth

(A) (B) (ESCO TIGER)

1шт.

4K

TF1U3352D

Tooth

(A) (CATERPILLAR REPLACEMENT FANGGS)

1шт.

4L

T1U3352

Tooth

(A) (CATERPILLAR REPLACEMENT STANDARD)

1шт.

4M

TX1U3352WT

Tooth

(A) (CATERPILLAR REPLACEMENT TWIN TIGER)

1шт.

4N

TT1U3352

Tooth

(A) (CATERPILLAR REPLACEMENT TIGER)

1шт.

4O

EV39SYL

Tooth

(A) (FOR SUPER V-STYLE EV39SYL TOOTH KIT)

1шт.

5

T3G9549

Retainer

(A) (CATERPILLAR REPLACEMENT)

1шт.

6

EX27VPL

Plug

(A) (B)

1шт.

Выбрано товаров: 35
