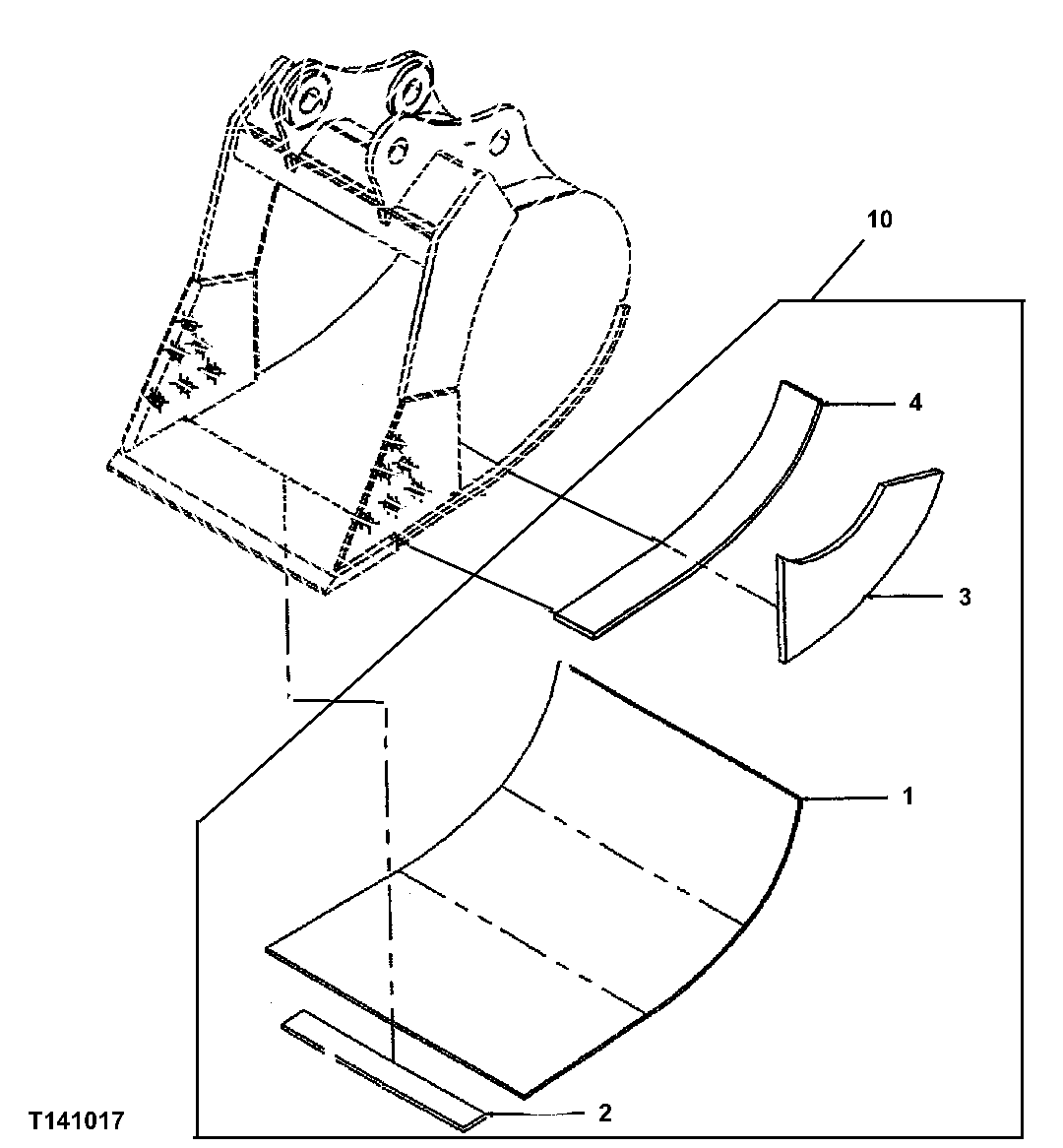

Запчасти John Deere 554 466 - ROADBUILDER BUCKET KIT (SEE FOOTNOTE) 3302 BUCKETS

1

623269

Moldboard

(A) (USE WITH 24 INCH BUCKET)

1шт.

623270

Moldboard

(A) (USE WITH 30 INCH BUCKET)

1шт.

623271

Moldboard

(A) (USE WITH 36 INCH BUCKET)

1шт.

623272

Moldboard

(A) (USE WITH 42 INCH BUCKET)

1шт.

2

28025

Bar

(A) (WEAR) (USE WITH 24 INCH BUCKET)

5шт.

28031

Bar

(A) (WEAR) (USE WITH 30 INCH BUCKET)

5шт.

28037

Bar

(A) (WEAR) (USE WITH 36 INCH BUCKET)

5шт.

28043

Bar

(A) (WEAR) (USE WITH 42 INCH BUCKET)

5шт.

3

313114

Plate

(A)

2шт.

4

304564

Plate

(A) (WEAR)

2шт.

10

Kit

(ALSO ORDER AT332693 24 IN CH BUCKET) ( AT187249 NLA)

1шт.

Kit

(ALSO ORDER AT332695 30 IN CH BUCKET) ( AT187250 NLA)

1шт.

Kit

(ALSO ORDER AT332696 36 IN CH BUCKET) ( AT187251 NLA)

1шт.

Kit

(ALSO ORDER AT332697 42 IN CH BUCKET) ( AT187252 NLA)

1шт.

Kit

(ALSO ORDER AT332698 48 IN CH BUCKET) ( AT199359 NLA)

1шт.
