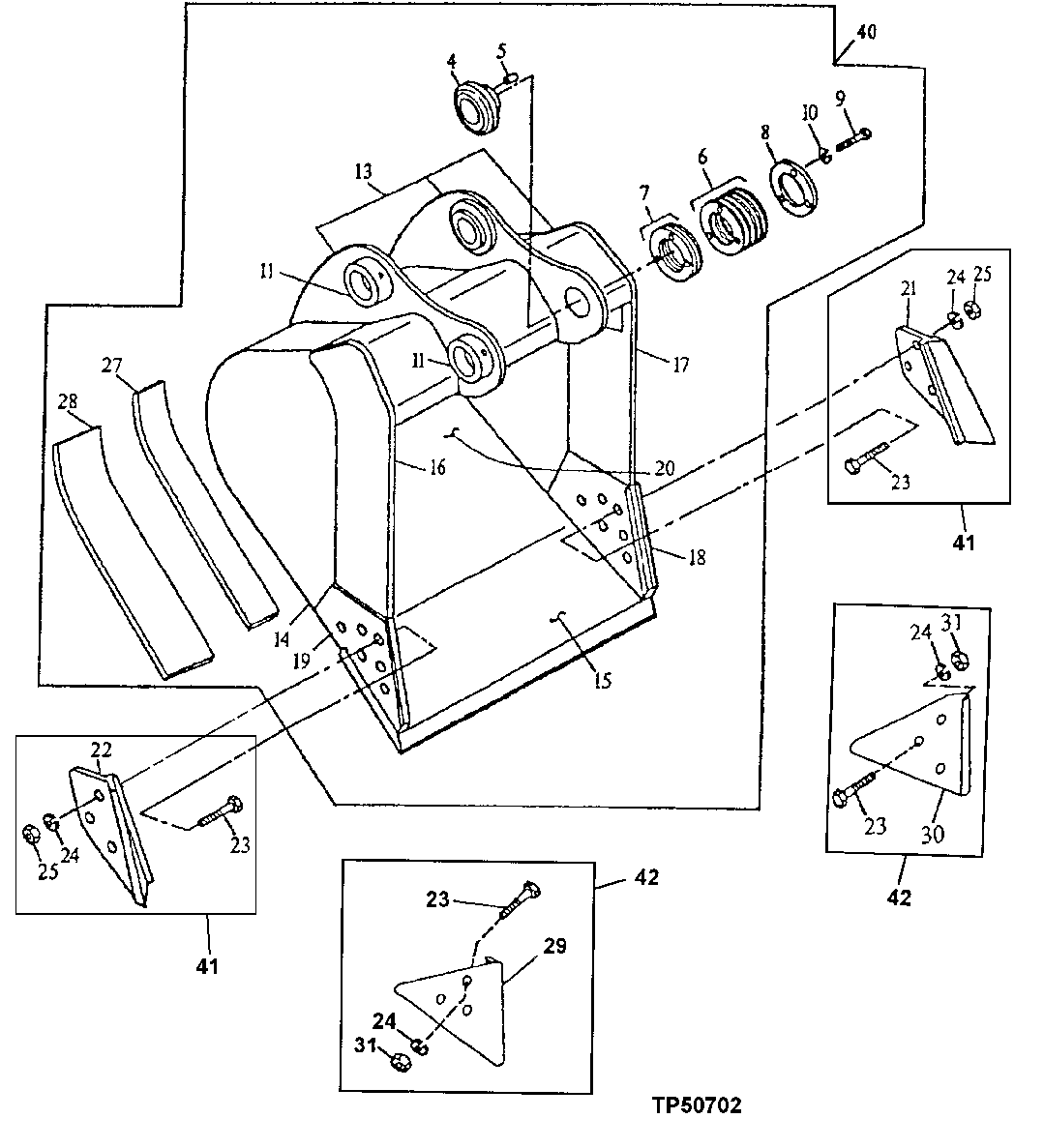

Запчасти John Deere 554 463 - HEAVY DUTY HIGH CAPACITY BUCKET (SEE FOOTNOTE) 3302 BUCKETS

4

Self-Aligning Bushing

(1 INCH HEAD THICKNESS) ( AT131083 NLA)

1шт.

5

R48685

Dowel Pin

1шт.

6

TH104512

Washer

9шт.

7

TH104513

Shim

1шт.

8

TH104514

Spacer

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH104509

Bushing

(LOCKING COLLAR)

2шт.

13

C607480

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300167

Plate

(A) (RH / LH)

2шт.

15

Cutting Edge

(CUT TO LENGTH) ( AT131090 BULK MATERIAL)

1шт.

C252567

Cutting Edge

(A) Use With 36 in. Bucket (CTL)

1шт.

16

300159

Vertical Cutter

(A) Upper (RH)

1шт.

17

300160

Vertical Cutter

(A) Upper (LH)

1шт.

18

300158

Vertical Cutter

(A) (LH) Insert

1шт.

19

300157

Vertical Cutter

(A) (RH) Insert

1шт.

20

600118

Moldboard

(A) (24 INCH)

1шт.

600119

Moldboard

(A) (30 INCH)

1шт.

600120

Moldboard

(A) (36 INCH)

1шт.

600121

Moldboard

(A) (42 INCH)

1шт.

600122

Moldboard

(A) (48 INCH)

1шт.

21

Cutting Edge

(SUB AT131085)(LH)

1шт.

22

Cutting Edge

(SUB AT131085)(RH)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300156

Bar

(A) (INNER WEAR)

1шт.

28

306452

Bar

(A) (OUTER WEAR)

2шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

6шт.

40

Excavator Bucket

24 in., .73 yd³, (WHOLE GOODS) ( AT163616 NLA)(SUB AT332693)

1шт.

Excavator Bucket

30 in., .95 yd³, (WHOLE GOODS) ( AT163617 NLA)(SUB AT332695)

1шт.

Excavator Bucket

36 in., 1.16 yd³, (WHOLE GOODS ) ( AT163618 NLA)(SUB AT332696)

1шт.

Excavator Bucket

42 in., 1.38 yd³, (WHOLE GOODS) ( AT163620 NLA ) (SUB AT332697)

1шт.

Excavator Bucket

36 in., 1.25 yd³, (WHOL E GOODS) ( AT183961 NLA)

1шт.

Excavator Bucket

42in., 1.6 yd³, (WHOLE GOODS) ( AT199358 NLA) (SUB AT332698)

1шт.

41

Kit

Side Cutter ( AT131085 NLA)

1шт.

42

Kit

Edge Protector ( AT167876 NLA)

1шт.
