Запчасти John Deere 554 462 - HEAVY DUTY BUCKET 3302 BUCKETS

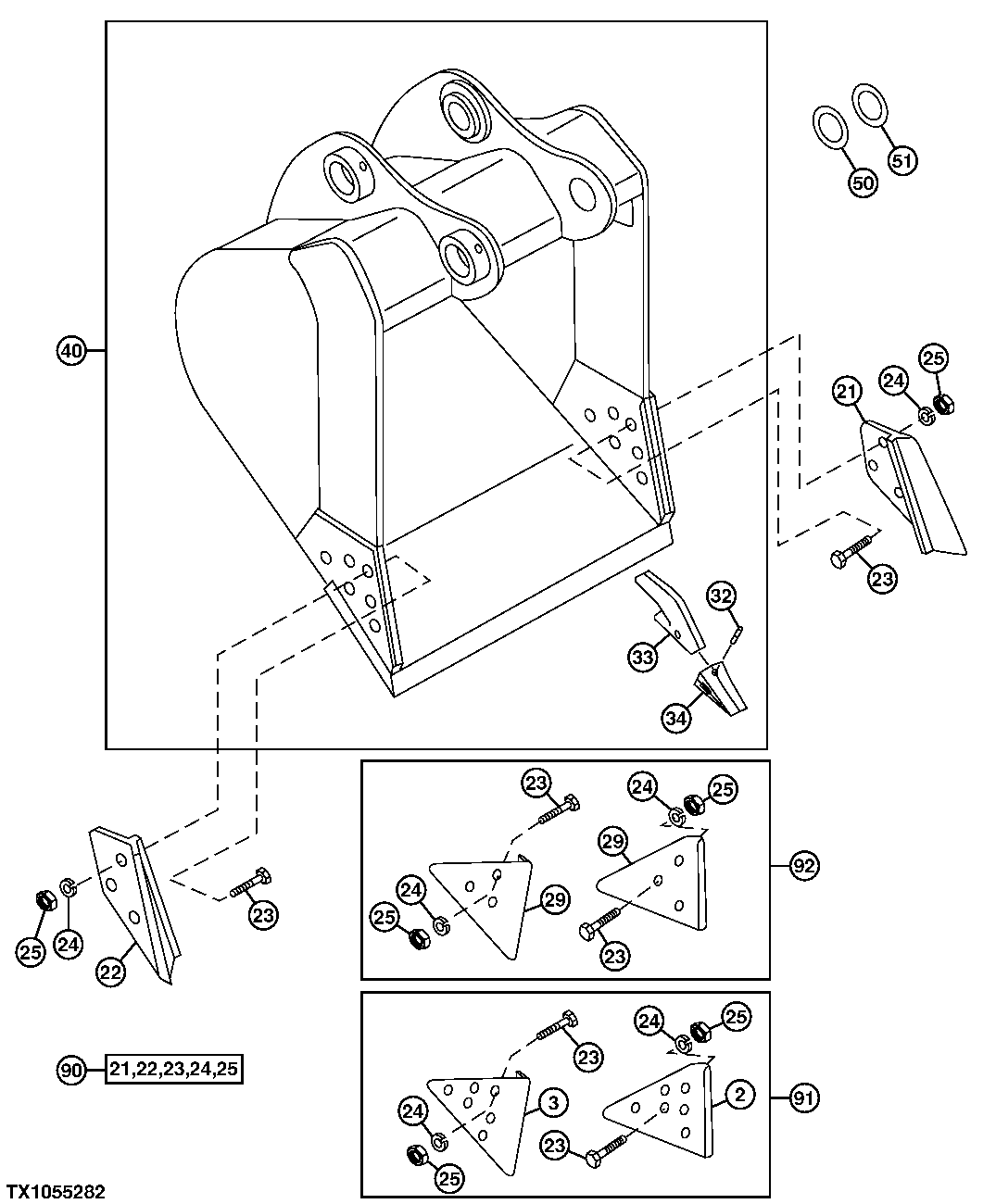

Схема запчастей John Deere 554 - 462 - HEAVY DUTY BUCKET 3302 BUCKETS

Артикул

Название

Примечание

Количество

2

T1156A

End Bit

1шт.

3

T1157A

End Bit

1шт.

21

CE17748L3

End Bit

1шт.

22

CE17748R3

End Bit

1шт.

23

09H1772

Bolt

7/8" X 3-1/2"

ARшт.

24

12H245

Lock Washer

7/8"

ARшт.

25

14H1077

Nut

7/8"

ARшт.

29

TPDE31329

Shroud

Wear

2шт.

32

TK290

Pin

ARшт.

33

T158X290

Bucket Tooth Adapter

ARшт.

34

TF290

Tooth

ARшт.

40

AT339128

Excavator Bucket

24 in., .52 yd³, 4 Teeth (WH OLEGOODS) (SUB FOR AT332688)

1шт.

AT339130

Excavator Bucket

30 in., .71 yd³, (WHOLE GOODS) (SUB FOR AT332689)

1шт.

AT339132

Excavator Bucket

36 in., 1.09 yd³, (WHOLE GOODS) (SUB FOR AT332690)

1шт.

AT339134

Excavator Bucket

42 in., 1.09 yd³, 5 Teeth (WH OLE GOODS) (SUB FOR AT332691)

1шт.

AT339136

Excavator Bucket

48 in., 1.29 yd³, 6 Te eth (SUB FOR AT332692)

1шт.

50

T241930

Washer

85 X 140 X 1 mm (3.346" X 5.512" X 0.039") (1 MM)

ARшт.

51

T241937

Shim

(.5 MM)

ARшт.

90

AT342511

Kit

Side Cutter Kit (WHOLE GOODS)

1шт.

91

AT342513

Kit

Edge Protector (WHOLE GOODS) (6 INCH)

1шт.

92

AT342512

Kit

Edge Protector (WHOLE GOODS) (3 INCH)

1шт.

Выбрано товаров: 21
