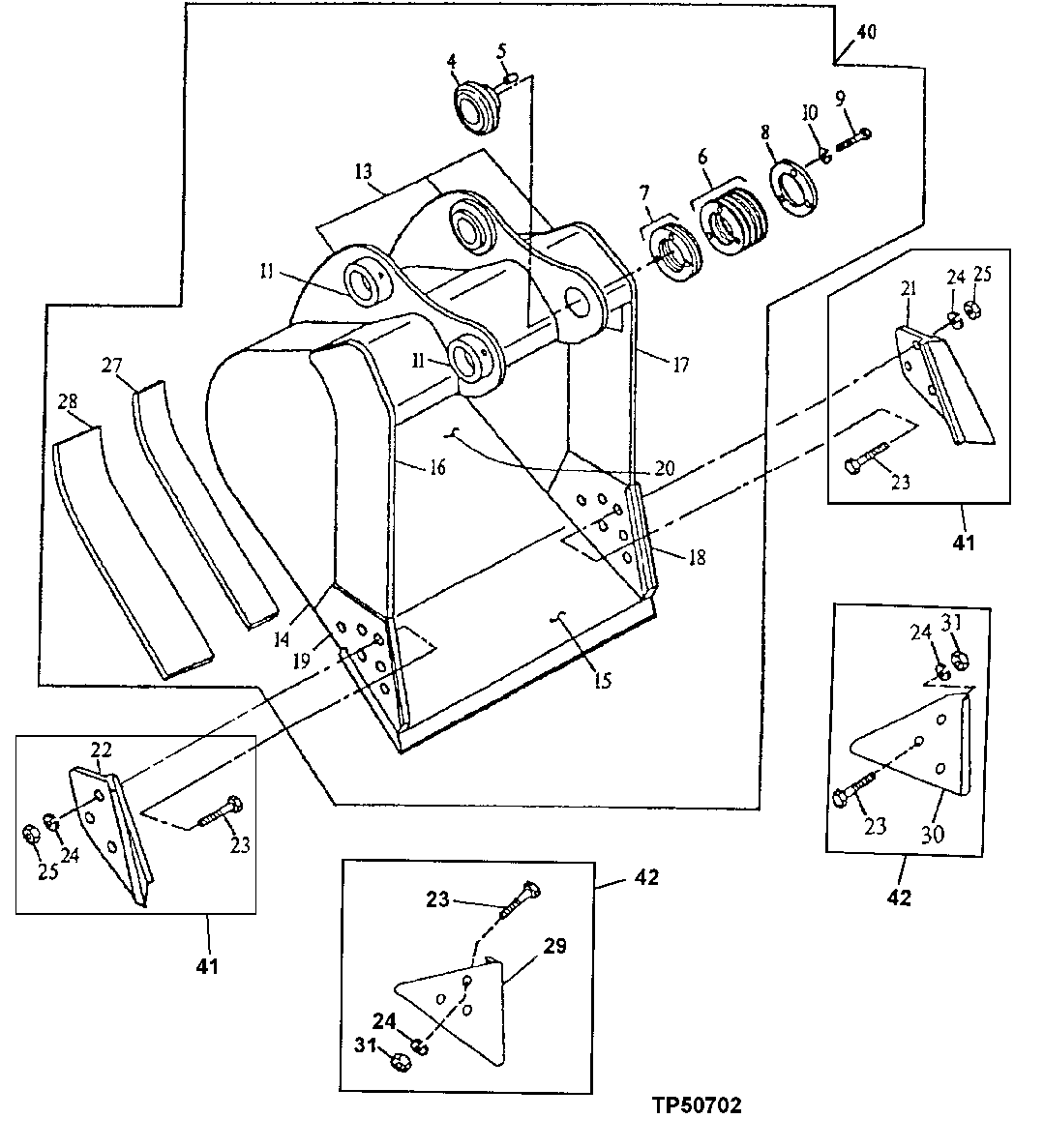

Запчасти John Deere 554 460 - HEAVY DUTY BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES) (SEE FOOTNOTE) 3302 BUCKETS

4

Self-Aligning Bushing

(1 INCH HEAD THICKNESS) ( AT131083 NLA)

1шт.

5

R48685

Dowel Pin

1шт.

6

TH104512

Washer

9шт.

7

TH104513

Shim

1шт.

8

TH104514

Spacer

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH104509

Bushing

(LOCKING COLLAR)

2шт.

13

C607480

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300804

Plate

(A) (RH / LH)

2шт.

15

Cutting Edge

(CUT TO LENGTH) ( AT131082 BULK MATERIAL)

1шт.

16

300526

Vertical Cutter

(A) Upper (RH)

1шт.

17

300527

Vertical Cutter

(A) Upper (LH)

1шт.

18

304568

Vertical Cutter

(A) Insert (LH)

1шт.

19

304567

Vertical Cutter

(A) Insert (RH)

1шт.

20

600417

Moldboard

(A) (24 INCH)

1шт.

600418

Moldboard

(A) (30 INCH)

1шт.

600419

Moldboard

(A) (36 INCH)

1шт.

600420

Moldboard

(A) (42 INCH)

1шт.

600122

Moldboard

(A) (48 INCH)

1шт.

21

Cutting Edge

(LH) (SUB AT131085)

1шт.

22

Cutting Edge

(RH) (SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300524

Bar

(A) (INNER WEAR)

1шт.

28

304564

Bar

(A) (OUTER WEAR)

2шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

6шт.

40

Excavator Bucket

24 in., .59yd³, (WHOLEGOODS) ( AT163611 NLA) (SUB AT332688)

1шт.

Excavator Bucket

30 in., .77yd³, (WHOLEGOODS) ( AT163612 NLA) (SUB AT332689)

1шт.

Excavator Bucket

36 in., .95 yd³, (WHOLEGOODS) ( AT163613 NLA)(SUB AT332690)

1шт.

Excavator Bucket

42 in., 1.12 yd³, (WHOLEGOODS) ( AT163614 NLA) (SUB AT332691)

1шт.

Excavator Bucket

48 in., 1.30 yd³, (WHOLEGOODS) ( AT163615 NLA) (SUB AT332692)

1шт.

41

Kit

Side Cutter ( AT131085 NLA)

1шт.

42

Kit

Edge Protector ( AT167876 NLA)

1шт.
