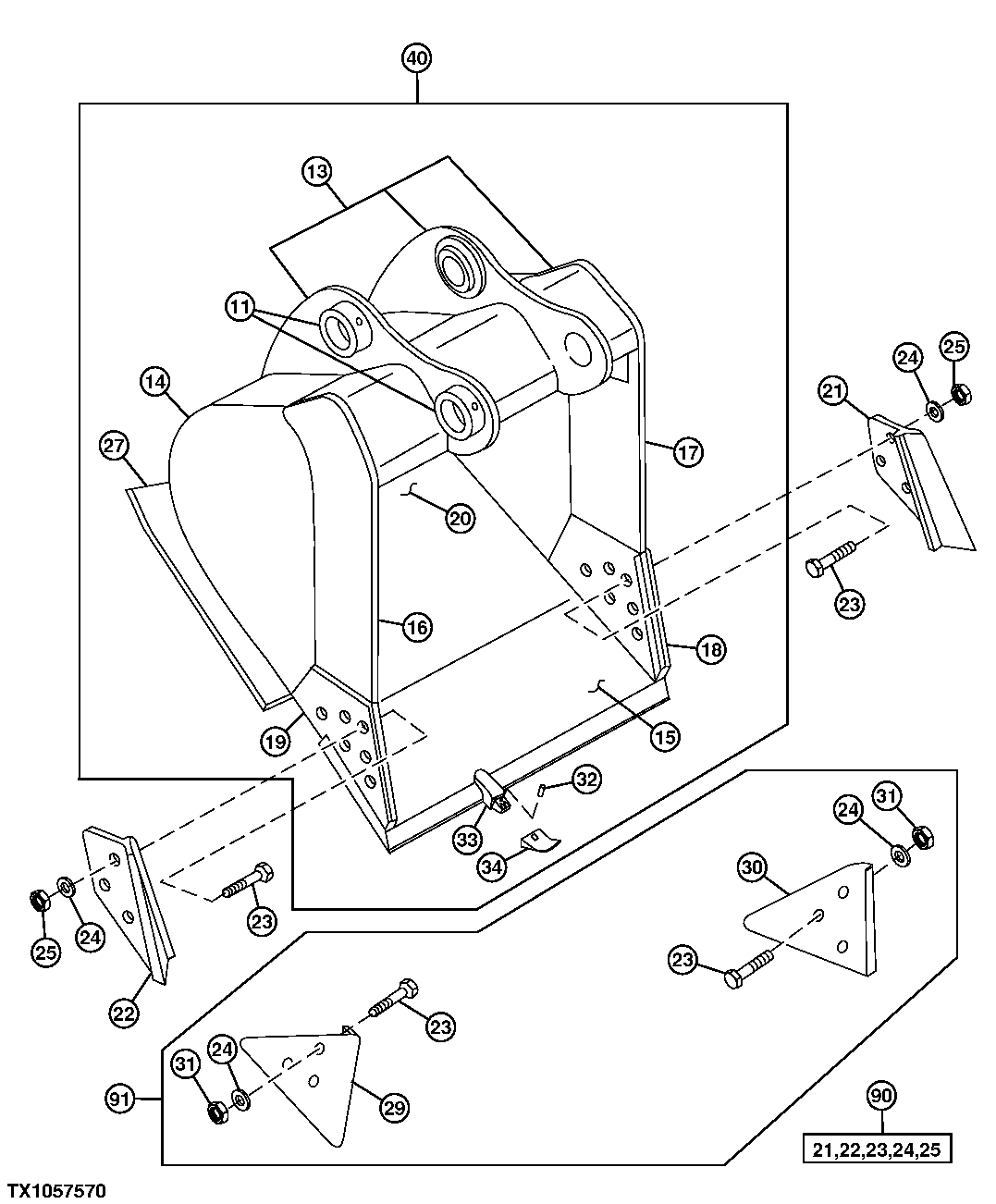

Запчасти John Deere 554 459 - SEVERE DUTY PLATE LIP BUCKET (SEE FOOTNOTE) 3302 BUCKETS

11

TH104509

Bushing

(LOCKING COLLAR)

2шт.

13

C607480

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

305511

Plate

(A) (RH / LH)

2шт.

15

Cutting Edge

(CUT TO LENGTH) ( AT131097 BULK MATERIAL)

1шт.

16

305512

Vertical Cutter

(A) (UPPER) (RH)

1шт.

17

305513

Vertical Cutter

(A) (UPPER) (LH)

1шт.

18

305531

Vertical Cutter

(A) (INSERT) (LH)

1шт.

19

305530

Vertical Cutter

(A) (INSERT) (RH)

1шт.

20

605990

Moldboard

(A) (30 INCH)

1шт.

605991

Moldboard

(A) (36 INCH)

1шт.

21

Cutting Edge

(SUB AT131085)

1шт.

22

Cutting Edge

(SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

605995

Bar

(A) (USE WITH 30 INCH BUCKET)

1шт.

605996

Bar

(A) (USE WITH 36 INCH BUCKET)

1шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

1шт.

32

TP400HD

Pin

ARшт.

33

T130X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.

40

Excavator Bucket

30in., .77yd³, (4 TEETH) ( AT 332699 NLA) (SUB FOR AT163624)

1шт.

Excavator Bucket

36 in., .95 yd³, (4 TEETH) ( A T332700 NLA)(SUB FOR AT163625)

1шт.

Excavator Bucket

42 in., 1.12 yd³, (5 TEETH) ( A T332701 NLA) (SUB FOR AT199360)

1шт.

90

Kit

Side Cutter ( AT131085 NLA)

1шт.

91

Kit

Edge Protector ( AT167876 NLA)

1шт.
