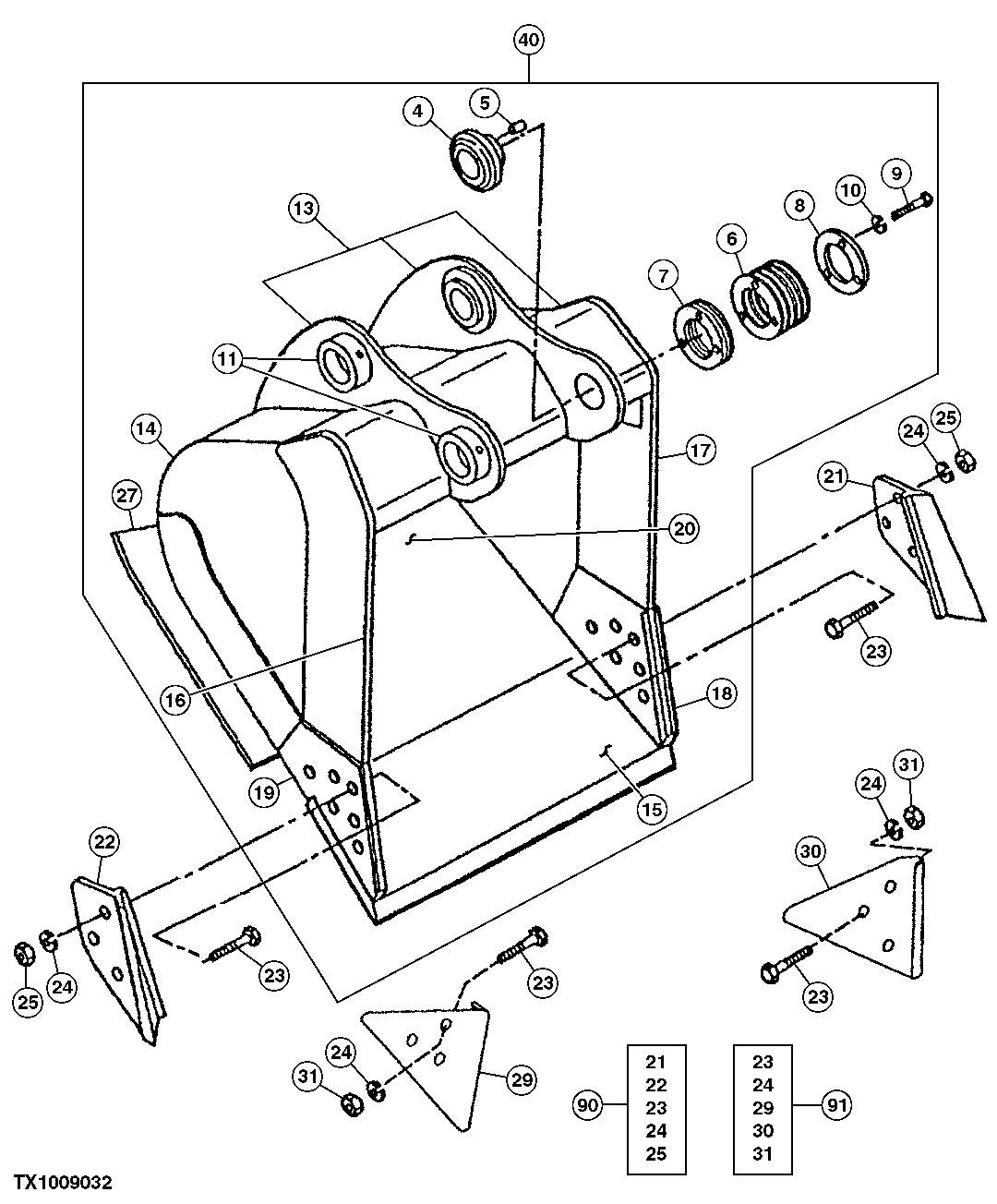

Запчасти John Deere 554 458 - SEVERE DUTY PLATE LIP BUCKET (SEE FOOTNOTE) 3302 BUCKETS

4

Self-Aligning Bushing

(1 INCH HEAD THICKNESS) ( AT131083 NLA)

1шт.

5

R48685

Dowel Pin

1шт.

6

TH104512

Washer

9шт.

7

TH104513

Shim

1шт.

8

TH104514

Spacer

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH104509

Bushing

(LOCKING COLLAR)

2шт.

13

C607480

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

305511

Plate

(A) (RH / LH)

2шт.

15

Cutting Edge

(MAKE FROM AT131097)(CUT TO LENGTH)

1шт.

16

305512

Vertical Cutter

(A) (UPPER) (RH)

1шт.

17

305513

Vertical Cutter

(A) (UPPER) (LH)

1шт.

18

305531

Vertical Cutter

(A) (INSERT) (LH)

1шт.

19

305530

Vertical Cutter

(A) (INSERT) (RH)

1шт.

20

605990

Moldboard

(A) (30 INCH)

1шт.

605991

Moldboard

(A) (36 INCH)

1шт.

21

Cutting Edge

(SUB AT131085)

1шт.

22

Cutting Edge

(SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

605995

Bar

(A) (USE WITH 30 INCH BUCKET)

1шт.

605996

Bar

(A) (USE WITH 36 INCH BUCKET)

1шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

1шт.

40

Excavator Bucket

30 in., .77 yd³, (WHOLEGOODS) ( AT163624 NLA) (SUB AT332699)

1шт.

Excavator Bucket

36 in., .95 yd³, (WHOLEGOODS) ( AT163625 NLA) (SUB AT332700)

1шт.

Excavator Bucket

42 in., 1.12 yd³, (SUB AT332701)

1шт.

90

Kit

Side Cutter ( AT131085 NLA)

1шт.

91

Kit

Edge Protector ( AT167876 NLA)

1шт.
