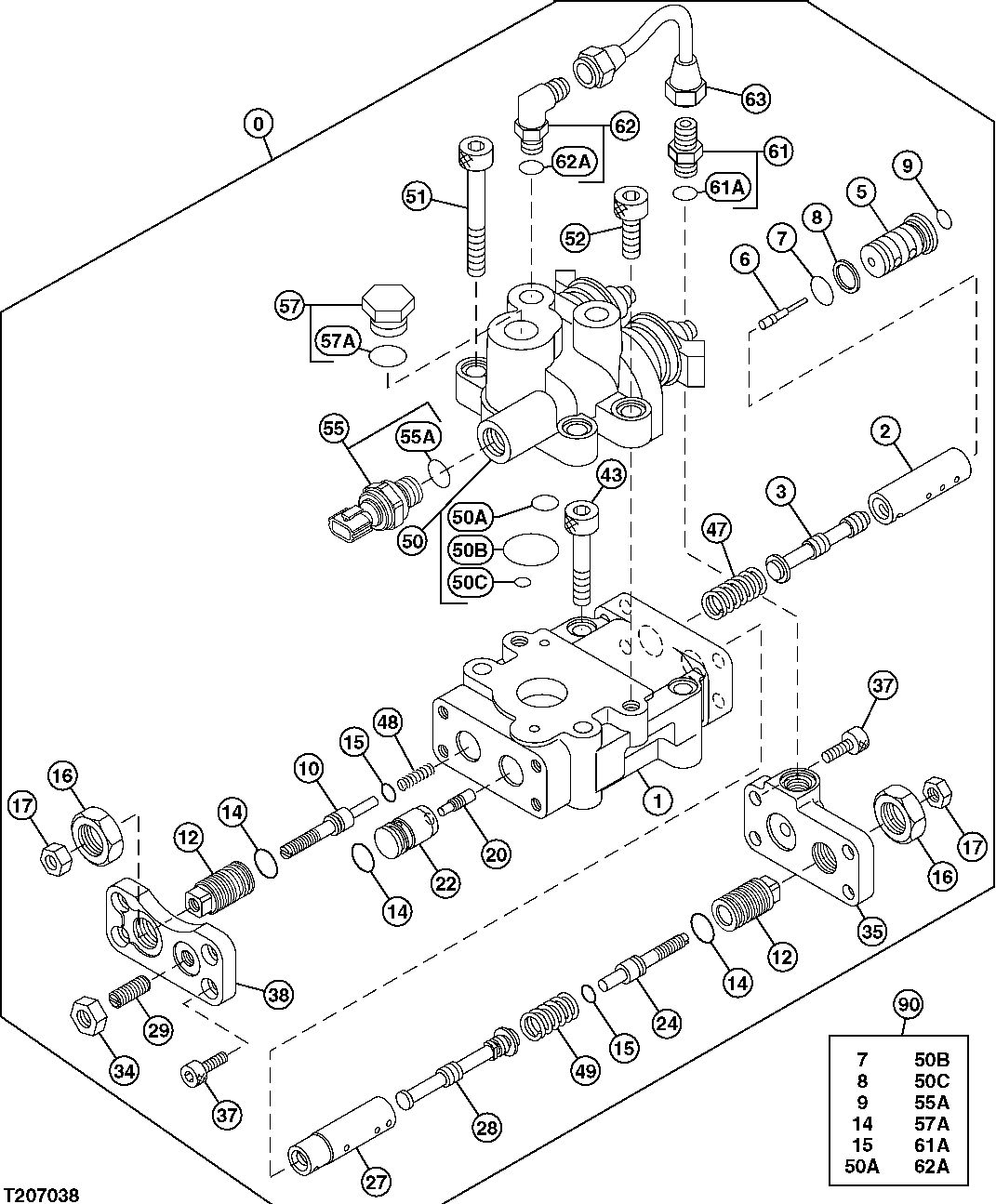

Запчасти John Deere 554 454 - MAIN HYDRAULIC PUMP LEFT-HAND REGULATOR 2160 VEHICLE HYDRAULICS

0

9198935

Regulator

1шт.

1

Housing

1026282 NLA

1шт.

2

4179155

Sleeve

1шт.

3

4179156

Spool

1шт.

5

4422202

Piston

1шт.

6

4422188

Flow Control Hyd. Valve

1шт.

7

TH102560

O-Ring

(A) (SUB FOR 4150302)

1шт.

8

4085607

Back-Up Ring

(A)

1шт.

9

CH11560

Packing

(A) (SUB FOR 4180349)

1шт.

10

4368619

Stop

(SUB FOR 4179162)

1шт.

12

4179161

Stop

2шт.

14

4342843

O-Ring

(A)

3шт.

15

4342841

O-Ring

(A)

2шт.

16

4068898

Nut

2шт.

17

14M7273

Nut

M8 (SUB FOR M500807)

2шт.

20

4179171

Piston

1шт.

22

4451498

Piston

1шт.

24

4347107

Stop

1шт.

27

4346522

Sleeve

1шт.

28

4346521

Valve Spool

1шт.

29

22M7098

Set Screw

M10 X 25 (SUB FOR 4265964)

1шт.

34

14M7274

Nut

M10 (SUB FOR J950010)

1шт.

35

3075775

End Plate

1шт.

37

19M8446

Screw

M8 X 20 (SUB FOR M340820)

8шт.

38

4433327

Cover

1шт.

43

19M8339

Screw

M10 X 55

2шт.

47

4194176

Compression Spring

1шт.

48

4423345

Spring

1шт.

49

4350928

Compression Spring

1шт.

50

9218269

Solenoid Valve

INCLUDES TH102560, 4153534, AND 4153087, SUB FOR 4400442

1шт.

50A

TH102560

O-Ring

(A) (SUB FOR 4150302)

1шт.

50B

4153534

O-Ring

(A)

1шт.

50C

4153087

O-Ring

(A)

1шт.

51

19M9763

Screw

M10 X 80 (SUB FOR M341080)

2шт.

52

19M8337

Screw

M10 X 30 (SUB FOR M341030)

2шт.

55

4436536

Sensor

INCLUDES 4153095

1шт.

55A

4153095

O-Ring

(A)

1шт.

57

4174541

Fitting

INCLUDES 4506418

1шт.

57A

4506418

O-Ring

(A)

1шт.

61

4255304

Fitting

INCLUDES M800650

1шт.

61A

M800650

Packing

(A) (SUB FOR 957366)

1шт.

62

4293950

Fitting

INCLUDES M800650

1шт.

62A

M800650

Packing

(A) (SUB FOR 957366)

1шт.

63

4436800

Oil Line

1шт.

90

4455733

Seal Kit

Includes Parts Marked A

1шт.
