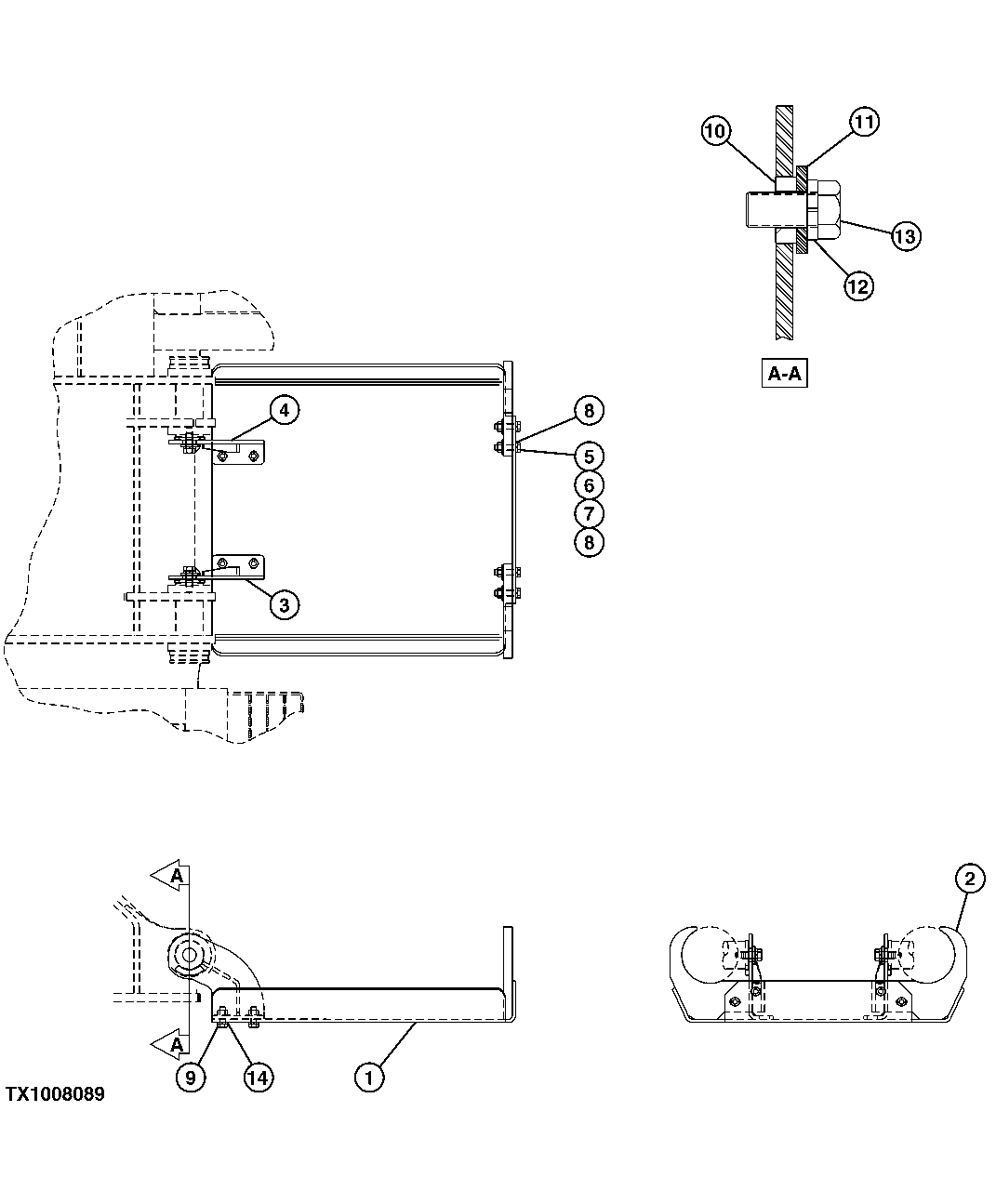

Запчасти John Deere 554 443 - BOOM CYLINDER GUARD 1913 MISCELLANEOUS SHIELDS

1

FFSB102909

Plate

1шт.

2

FFSB113309

Frame

2шт.

3

FFSB102912

Support

1шт.

4

FFSB102911

Support

1шт.

5

19M7417

Cap Screw

M16 X 65 (SUB FOR FFSB109201 AND 19M7344)

4шт.

6

24M7338

Washer

17 X 30 X 3 mm (SUB FOR FFSB107140)

8шт.

7

12M7069

Lock Washer

16 mm (SUB FOR FFSB109363)

8шт.

8

14M7276

Nut

M16 (SUB FOR FFSB108865)

8шт.

9

19M7397

Cap Screw

M16 X 50 (SUB FOR FFSB109199)

4шт.

10

FFSB107397

Bushing

2шт.

11

FFSB107398

Plate

2шт.

12

12M7070

Lock Washer

20 mm (SUB FOR FFSB109365)

2шт.

13

19M7950

Cap Screw

M20 X 45 (SUB FOR FFSB109232 OR J922045)

2шт.

14

24M7439

Washer

17 X 40 X 6 mm

8шт.
