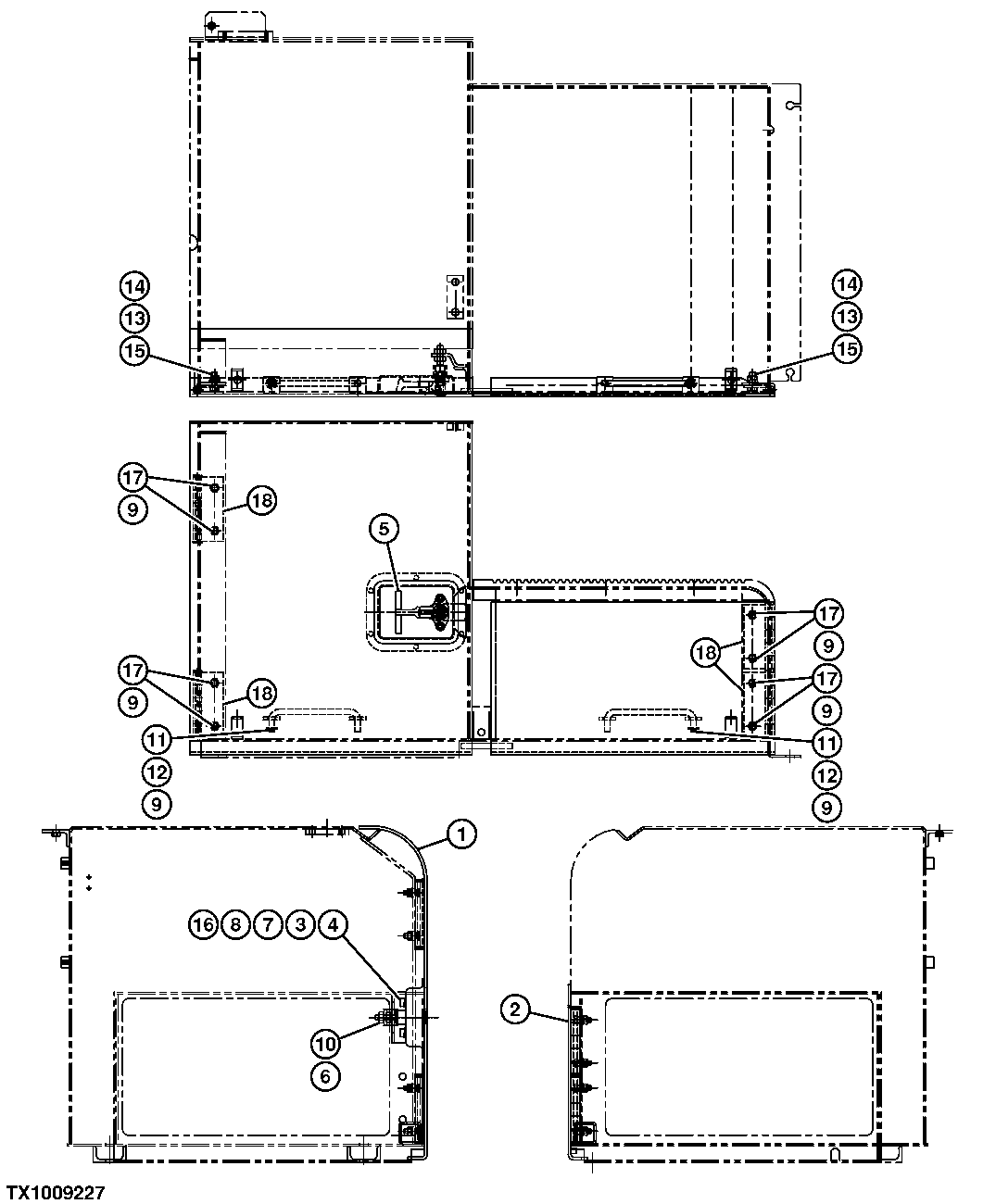

Запчасти John Deere 554 440 - TOOLBOX DOOR, LATCH AND LOCK (SN 200013- ) 1910 HOOD OR ENGINE ENCLOSURE

1

FFSB113273

Toolbox

1шт.

2

FFSB113260

Door

1шт.

3

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

2шт.

4

19M7167

Cap Screw

M10 X 25 (SUB FOR FFSB108726)

2шт.

5

FFSB106270

Latch

1шт.

6

14M7141

Nut

M14 (SUB FOR FFSB108115)

1шт.

7

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

2шт.

8

14M7274

Nut

M10 (SUB FOR FFSB107411)

2шт.

9

24M7047

Washer

13 X 24 X 2.500 mm (SUB FOR FFSB105797)

10шт.

10

FFSB111739

Cam

1шт.

11

FFSB108263

Latch

2шт.

12

11M7017

Cotter Pin

3.200 X 32 mm (SUB FOR FFSB108266)( FF SB110014 NOT USED FOR THIS APPLICATION)

2шт.

13

14M7275

Nut

M12 (SUB FOR FFSB107245)

8шт.

14

12M7067

Lock Washer

12 mm (SUB FOR FFSB107911)

8шт.

15

24H1226

Washer

1/2" X 1-1/4" X 0.083" (SUB FOR FFSB108137)

8шт.

16

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

2шт.

17

19M7403

Cap Screw

M12 X 35 (SUB FOR FFSB109213)

8шт.

18

FFSB115262

Hinge

4шт.
