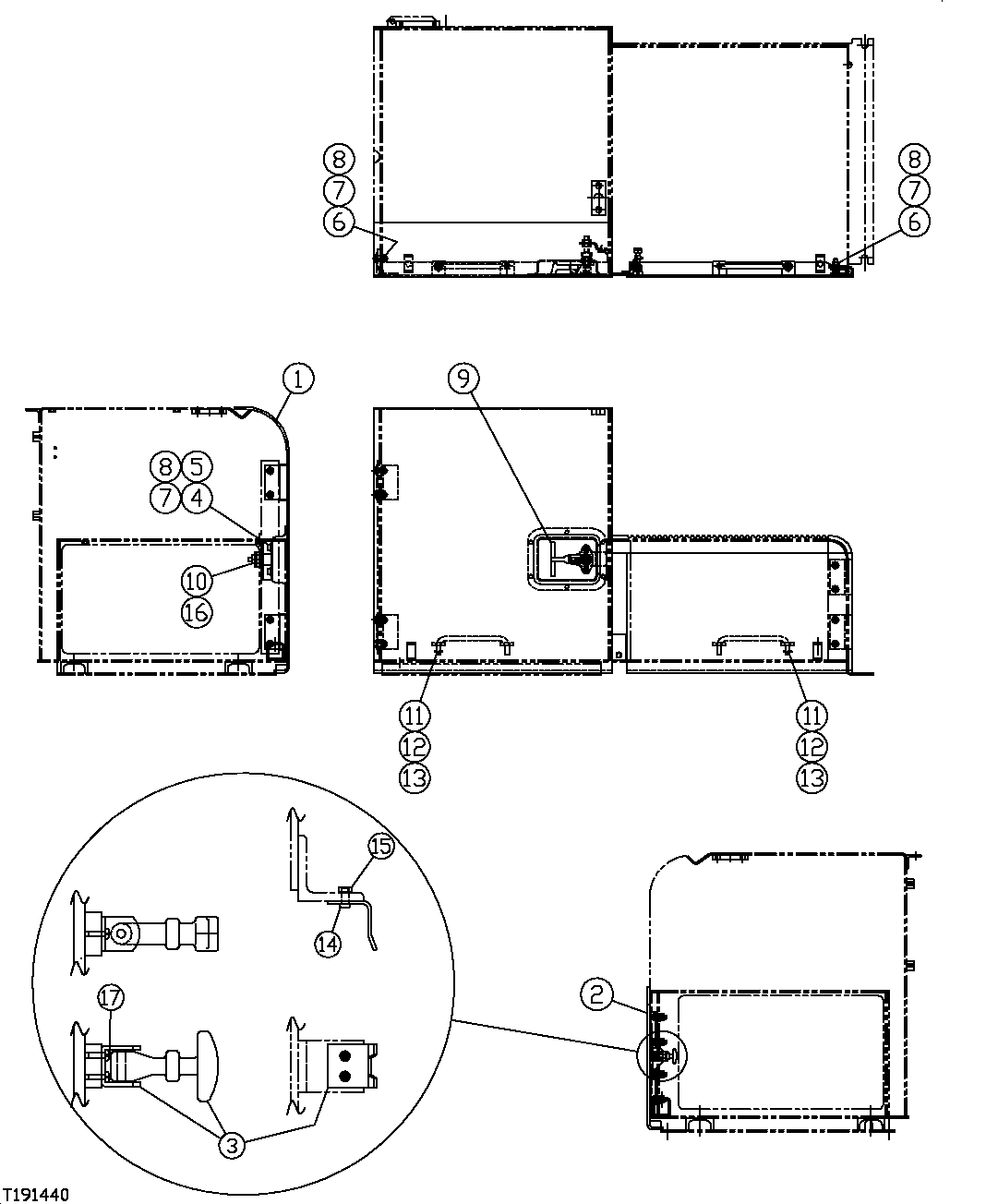

Запчасти John Deere 554 439 - TOOLBOX DOOR, LATCH AND LOCK (SN -200065) 1910 HOOD OR ENGINE ENCLOSURE

1

FFSB110871

Door

1шт.

2

FFSB110872

Door

1шт.

3

FFSB110874

Latch

1шт.

4

19M7167

Cap Screw

M10 X 25 (SUB FOR FFSB108726)

2шт.

5

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

2шт.

6

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

8шт.

7

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

10шт.

8

14M7274

Nut

M10 (SUB FOR FFSB107411)

10шт.

9

FFSB106270

Latch

1шт.

10

FFSB111739

Cam

(SUB FOR FFSB106271)

1шт.

11

FFSB108263

Latch

2шт.

12

11M7015

Cotter Pin

3.200 X 25 mm (SUB FOR FFSB110062)

2шт.

13

24M7047

Washer

13 X 24 X 2.500 mm (SUB FOR FFSB105797)

2шт.

14

21H1167

Screw

0.190" X 1/4" (SUB FOR FFSB106649)

4шт.

12H316

Lock Washer

0.216" (SUB FOR FFSB106649)

4шт.

15

14M7139

Nut

M4 (SUB FOR FFSB107187 ) (SUB FOR 14M7100)

2шт.

16

14M7141

Nut

M14 (SUB FOR FFSB108115)

1шт.

17

21M7394

Screw

M3 X 10

2шт.
