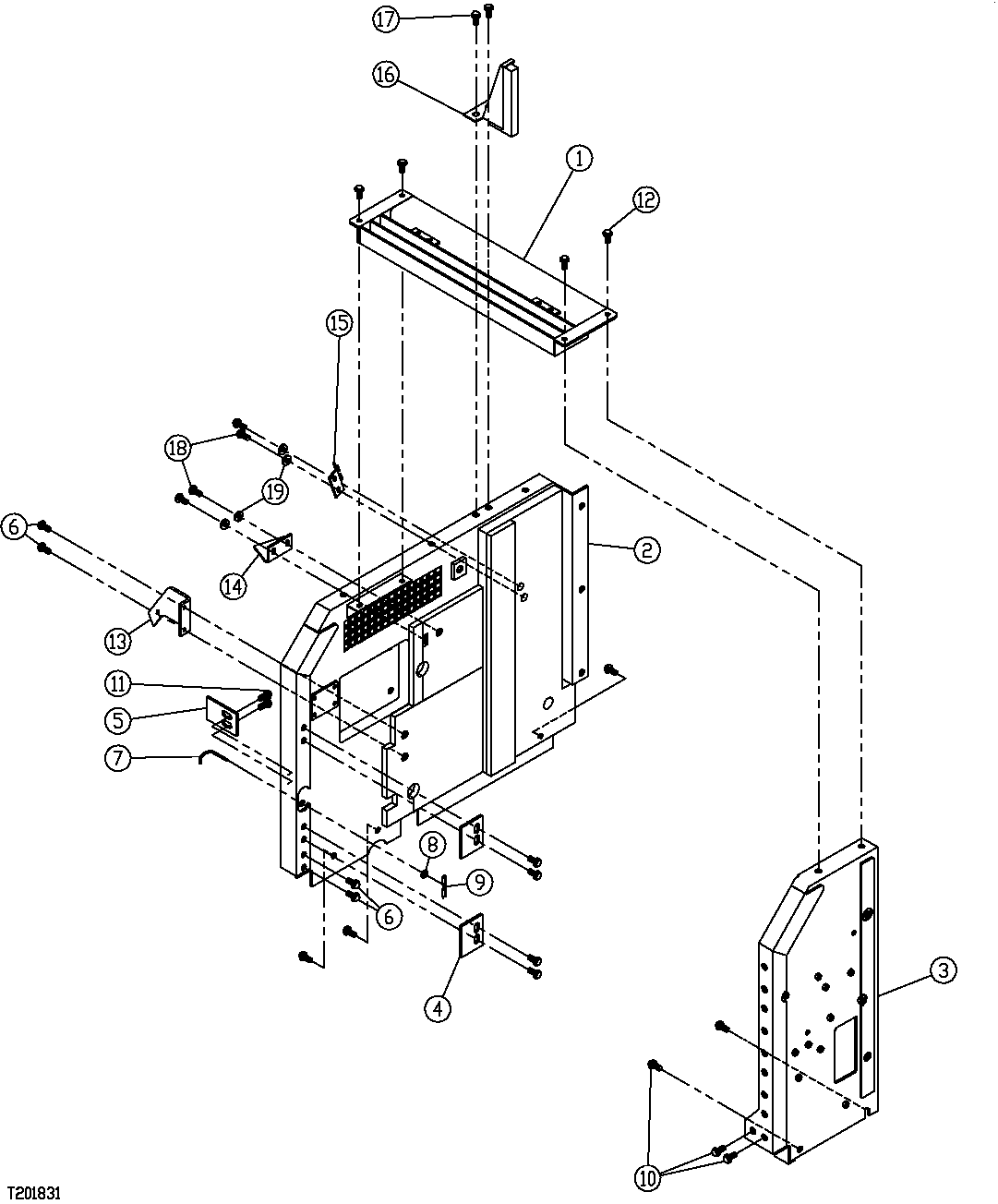

Запчасти John Deere 554 433 - RADIATOR COMPARTMENT PANELS AND COVER 1910 HOOD OR ENGINE ENCLOSURE

1

DH700014

Cover

(SUB FOR FFSB110602 ) (SUB FOR THDH700014)

1шт.

2

DH700060

Panel

(SUB FOR FFSB110603)

1шт.

3

DH500049

Panel

(SUB FOR FFSB110610)

1шт.

4

DH400397

Bracket

(SUB FOR FFSB110584)

2шт.

5

DH400400

Plug

( FFSB110585 NOT USED FOR THIS APPLICATION)

1шт.

6

19M7662

Cap Screw

M10 X 30 (SUB FOR AT153806 ) ( ALSO ORDER 19M7662 AND 24M7346)

4шт.

12M7058

Lock Washer

12 mm

4шт.

7

9751797

Latch

(SUB FOR FFSB110586 ) (SUB FOR TH9751797)

1шт.

8

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR FFSB107438)

1шт.

9

M800051

Pin

(SUB FOR TH106585 ) (SUB FOR FFSB110588 ) (SUB FOR CH10542)

1шт.

10

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB10 9179, AT200803, AT155588)

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7346

Washer

11 X 20 X 2 mm

6шт.

11

Bolt

( FFSB107219 NLA)

2шт.

12

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB107462)

8шт.

13

DH800064

Bracket

(SUB FOR FFSB110611)

1шт.

14

DH800073

Bracket

( DH300063 NLA) (SUB FOR FFSB 110612 ) (SUB FOR THDH300063)

1шт.

15

DH800063

Bracket

(SUB FOR FFSB110613)

1шт.

16

DH700028

Cover

(SUB FOR FFSB110614 ) (SUB FOR THDH700028)

1шт.

17

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB106133)

5шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB106133)

5шт.

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB106133)

5шт.

18

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB107241)

4шт.

19

24M7346

Washer

11 X 20 X 2 mm (SUB FOR FFSB107910)

1шт.
