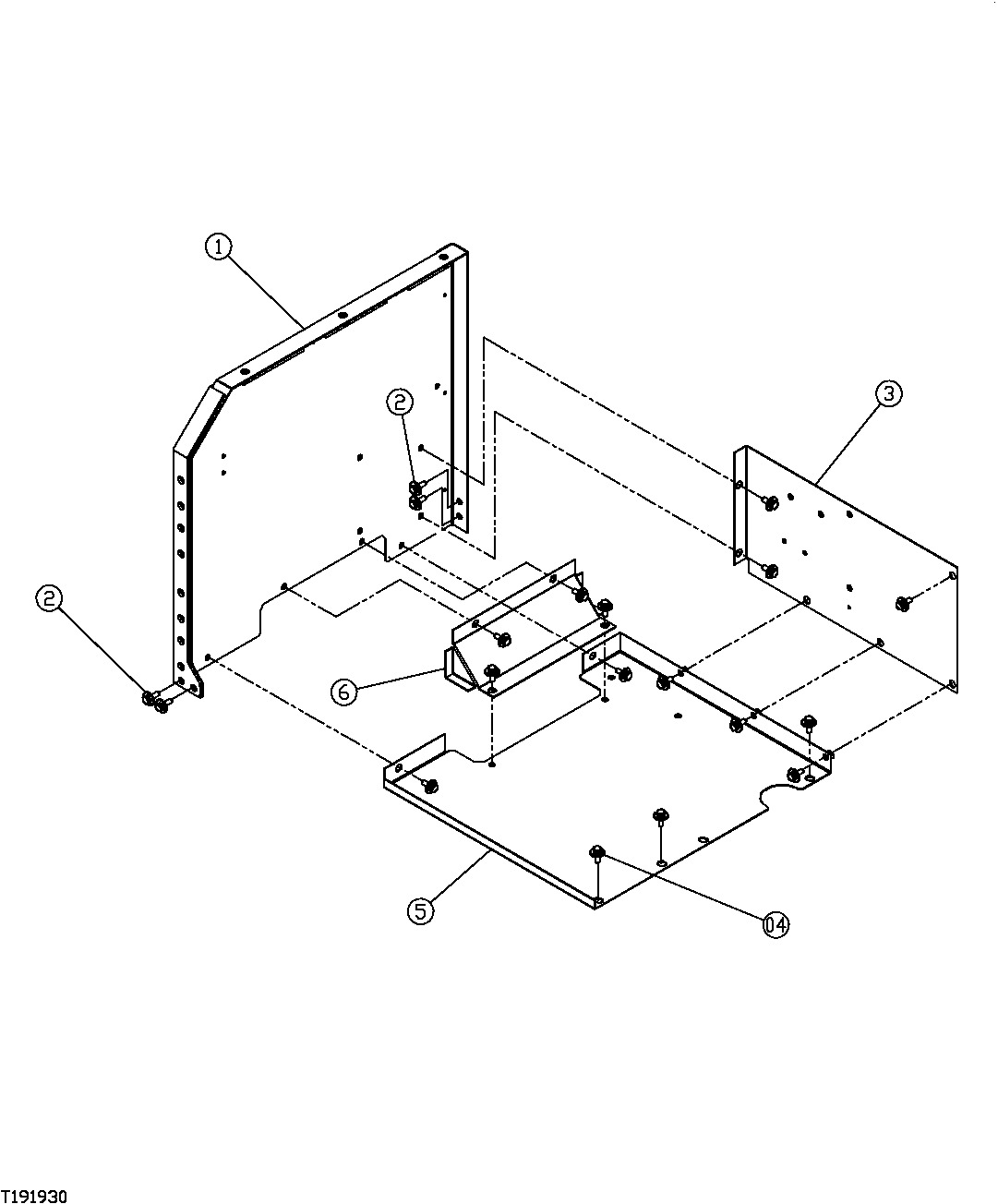

Запчасти John Deere 554 430 - LEFT FRONT STORAGE COMPARTMENT PANELS 1910 HOOD OR ENGINE ENCLOSURE

1

DH600015

Panel

Front (SUB FOR FFSB110006)

1шт.

2

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB10 9179, AT200803, AT155588)

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

3

8081829

Cover

(SUB FOR FFSB110551 ) (SUB FOR TH8081829)

1шт.

4

19M7662

Cap Screw

M10 X 30 (SUB FOR AT153806 ) ( ALSO ORDER 19M7662 AND 24M7346)

15шт.

12M7067

Lock Washer

12 mm

15шт.

24M7346

Washer

11 X 20 X 2 mm

15шт.

5

DH700086

Cover

(SUB FOR FFSB110552, FFSB1131 33)(FLOOR STORAGE COMPARTMENT)

1шт.

6

DH800071

Cover

(SUB FOR FFSB113129)

1шт.
