428 - ENGINE FRONT PANEL AND FOAM

Запчасти John Deere 554 428 - ENGINE FRONT PANEL AND FOAM 1910 HOOD OR ENGINE ENCLOSURE

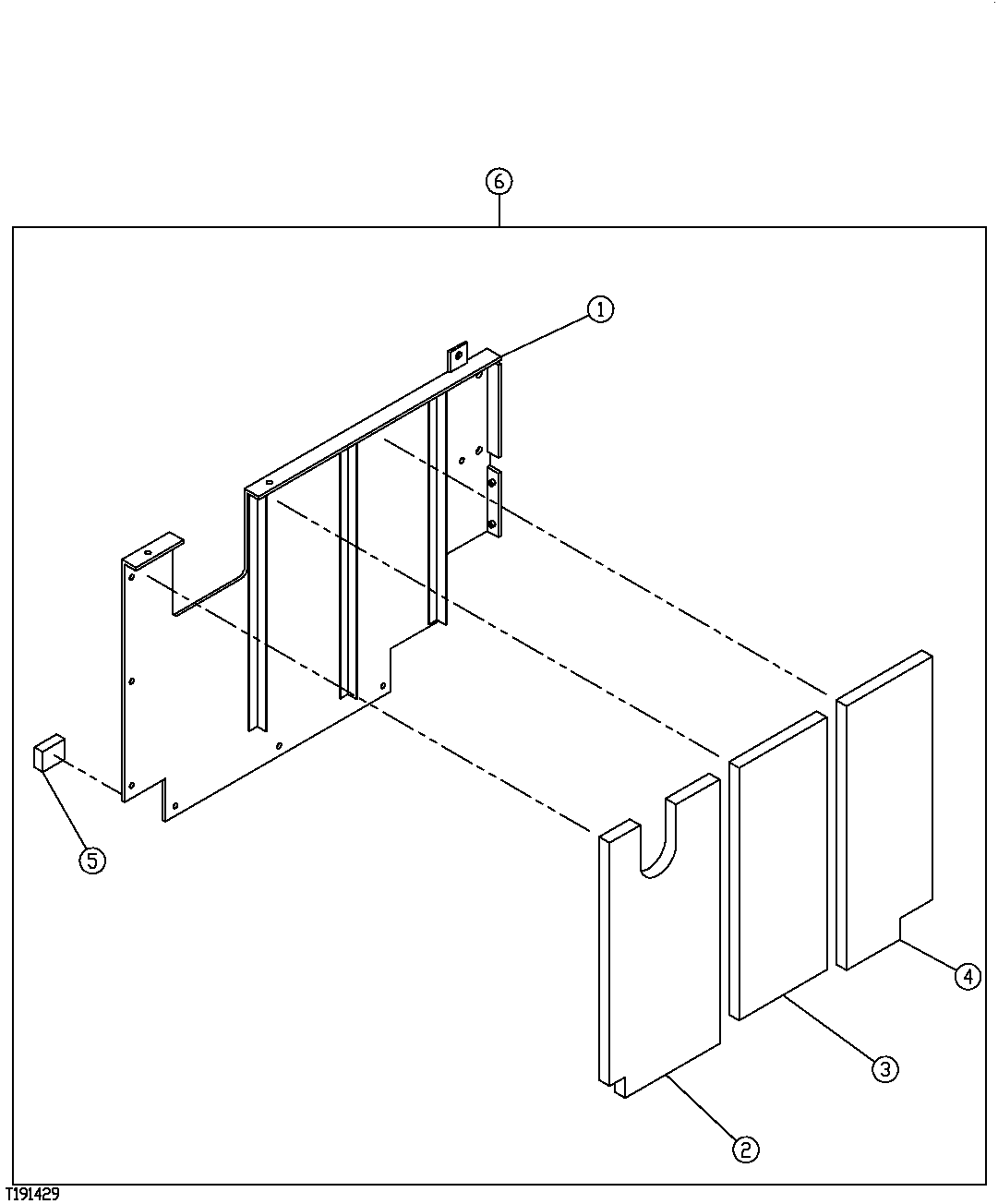

Схема запчастей John Deere 554 - 428 - ENGINE FRONT PANEL AND FOAM 1910 HOOD OR ENGINE ENCLOSURE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Cover

( FFSB110569 NLA)

1шт.

2

Isolator

( DH400322 NLA) (SUB FOR FFSB 110570 ) (SUB FOR THDH400322)

1шт.

Isolator

( DH700021F NLA)

1шт.

3

FFSB110571

Isolator

1шт.

4

4414901

Isolator

(SUB FOR FFSB110565 ) (SUB FOR TH4414901)

1шт.

5

4417881

Isolator

(SUB FOR FFSB110566 ) (SUB FOR TH4417881)

1шт.

6

DH700062

Panel

(SUB FOR FFSB110568)

1шт.
