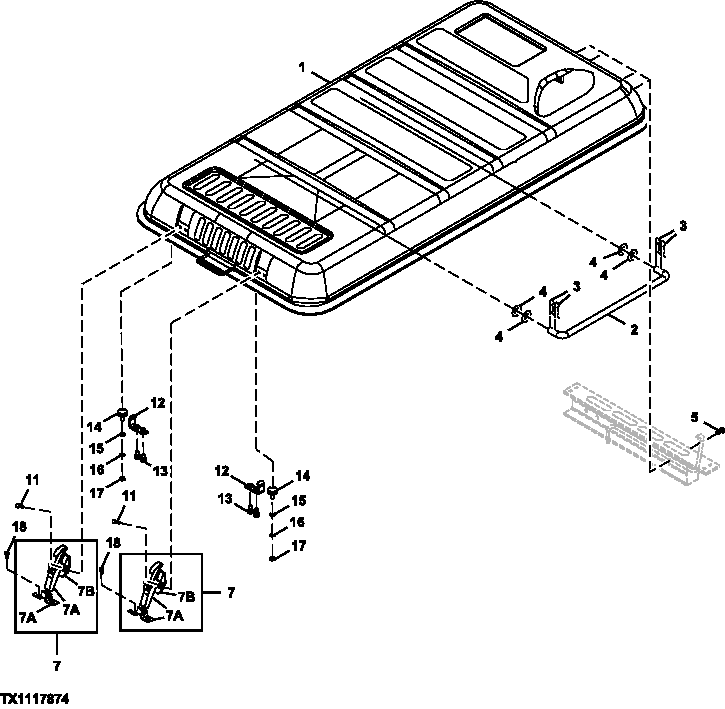

Запчасти John Deere 554 423 - ENGINE HOOD LATCH AND MOUNTING (SN 200489- ) 1910 HOOD OR ENGINE ENCLOSURE

1

FFSB115457

Hood

1шт.

2

4278783

Bracket

1шт.

3

L12622

Spring Locking Pin

4шт.

4

24M7053

Washer

17 X 30 X 3 mm

4шт.

5

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

7

4361455

Catch

SUB FOR TH111036, TH108769

2шт.

AT194969

Key

SUB FOR AT147803

1шт.

7A

3040904

Catch

SUB FOR AT126162

1шт.

7B

3021131

Anchor

SUB FOR TH102247

1шт.

11

19M7163

Cap Screw

M8 X 25

8шт.

12M7065

Lock Washer

8 mm

8шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

8шт.

12

AT307244

Bracket

2шт.

13

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

14

4294508

Bumper

2шт.

15

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

16

12M7066

Lock Washer

10 mm

2шт.

17

14M7274

Nut

M10

2шт.
