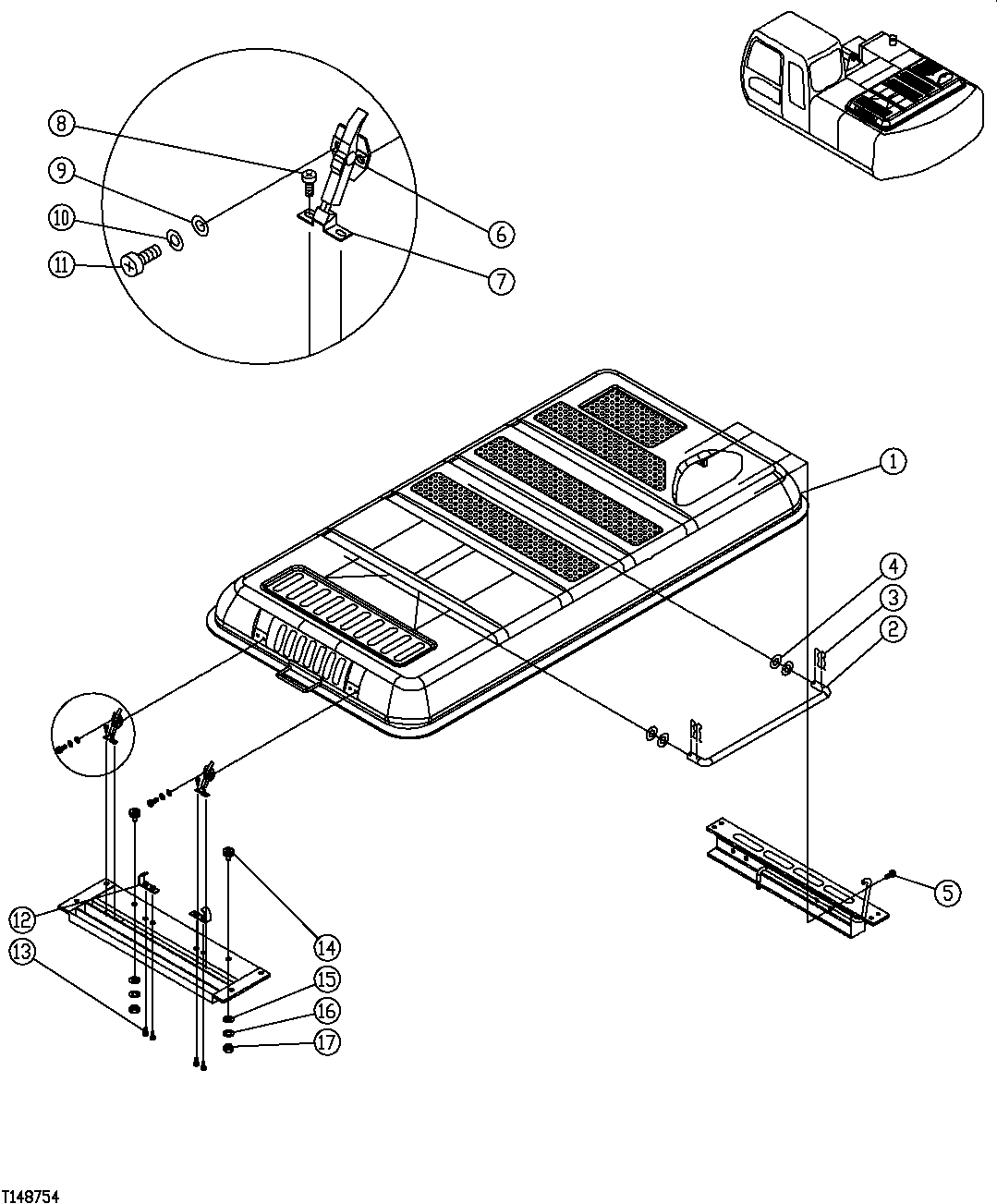

Запчасти John Deere 554 422 - ENGINE HOOD LATCH AND MOUNTING (SN -200488) 1910 HOOD OR ENGINE ENCLOSURE

1

Hood

(SUB FFSB115457)( FFSB110877 NLA)

1шт.

2

4278783

Bracket

(SUB FOR AT201025)

1шт.

3

L12622

Spring Locking Pin

(SUB FOR FFSB110879)

4шт.

4

24M7053

Washer

17 X 30 X 3 mm

4шт.

5

19M7662

Cap Screw

M10 X 30

4шт.

6

3040904

Catch

(SUB FOR AT126162)

2шт.

7

3021131

Anchor

(SUB FOR TH102247)

2шт.

8

19M7881

Screw

M8 X 20

4шт.

9

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

10

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

11

21M7397

Screw

M8 X 25

4шт.

12

AT307244

Bracket

(SUB FOR AT171615 OR 9743889)

2шт.

13

19M7402

Cap Screw

M10 X 25

4шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

14

4294508

Bumper

(SUB FOR AT201032)

2шт.

15

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

16

12M7066

Lock Washer

10 mm

2шт.

17

14M7274

Nut

M10

2шт.
