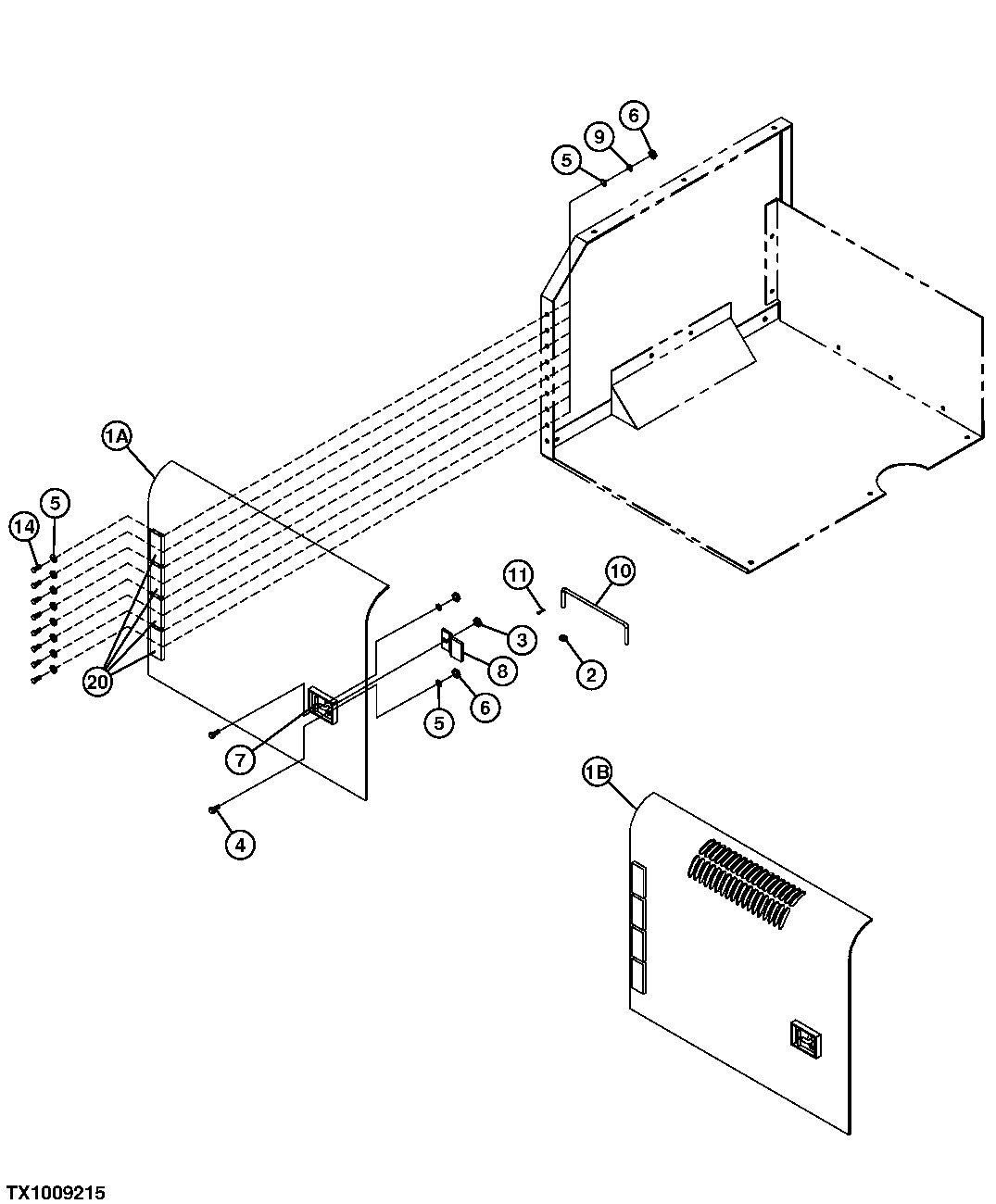

Запчасти John Deere 554 419 - LEFT FRONT STORAGE COMPARTMENT DOOR AND LOCK 1910 HOOD OR ENGINE ENCLOSURE

1A

FFSB110021

Door

1шт.

1B

FFSB115575

Door

(USE WITH POWERED CONDENSOR)

1шт.

2

24M7047

Washer

13 X 24 X 2.500 mm (SUB FOR FFSB105797)( FFSB110013 NOT USED FOR THIS APPLICATION)

1шт.

3

14M7141

Nut

M14 (SUB FOR FFSB108115)

1шт.

4

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB106133)

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

5

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

10шт.

6

14M7274

Nut

M10 (SUB FOR FFSB107411)

10шт.

7

FFSB106270

Latch

1шт.

8

FFSB111739

Cam

(SUB FOR FFSB106271)

1шт.

9

12M7066

Lock Washer

10 mm (SUB FOR FFSB107961)

8шт.

10

FFSB110011

Latch

1шт.

11

11M7017

Cotter Pin

3.200 X 32 mm (SUB FOR FFSB108266)( FF SB110014 NOT USED FOR THIS APPLICATION)

1шт.

14

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB107141)

8шт.

20

FFSB115261

Hinge

4шт.
