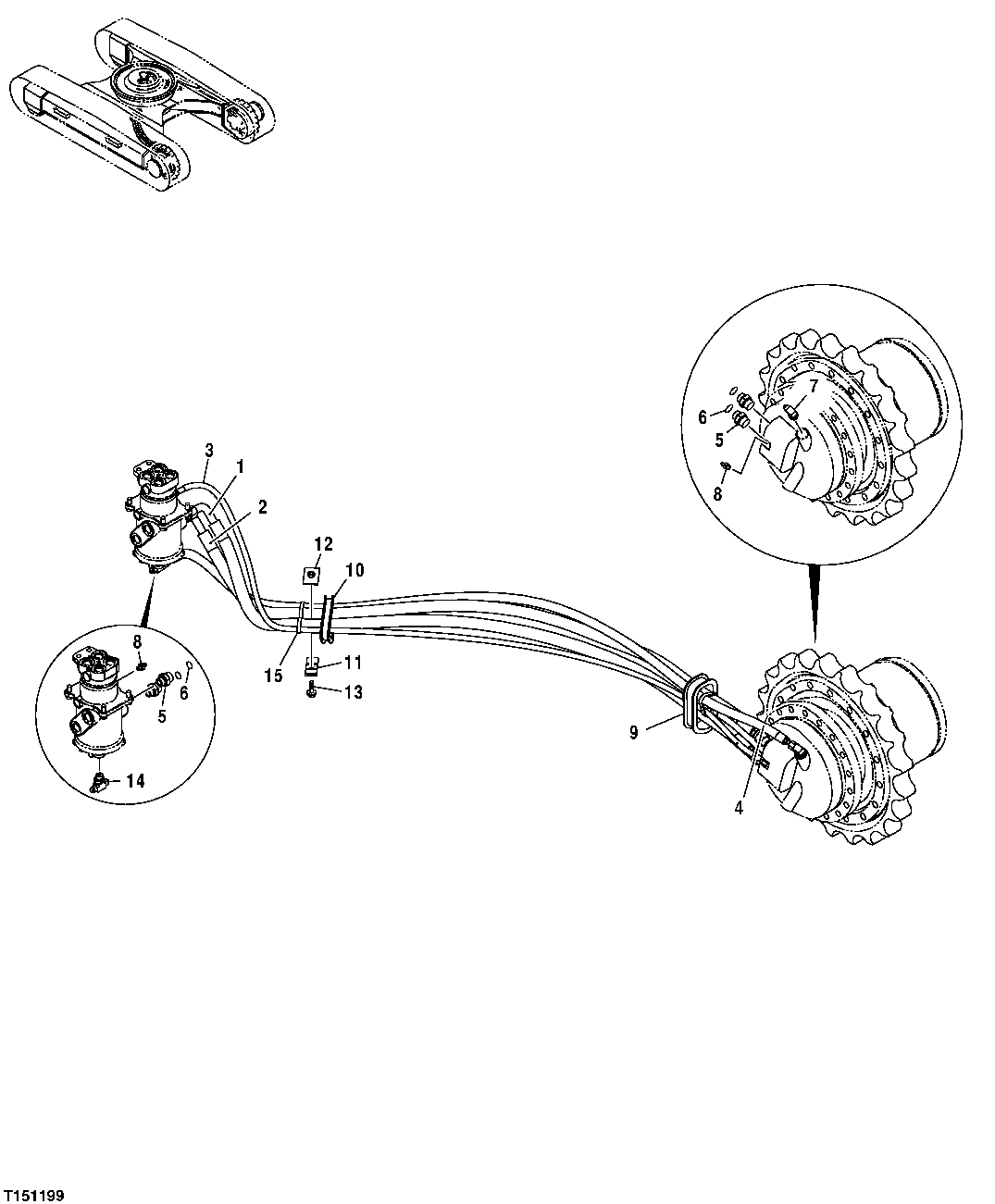

Запчасти John Deere 554 23 - ROTARY MANIFOLD TO PROPEL MOTOR HOSES 0260 HYDRAULIC SYSTEM

1

FFSB109898

Hydraulic Hose

(STD)

2шт.

FFSB109994

Hydraulic Hose

(HIGH AND WIDE)

2шт.

2

FFSB109899

Hydraulic Hose

(STD)

2шт.

FFSB109995

Hydraulic Hose

(HIGH AND WIDE)

2шт.

3

FFSB109900

Hydraulic Hose

(STD)

2шт.

FFSB109996

Hydraulic Hose

(HIGH AND WIDE)

2шт.

4

FFSB109901

Hydraulic Hose

(STD)

2шт.

FFSB109997

Hydraulic Hose

(HIGH AND WIDE)

2шт.

5

A853166

Adapter Fitting

(SUB FOR FFSB109423 OR AT107392 OR 4189619)

8шт.

6

T77858

O-Ring

(SUB FOR FFSB109689)

8шт.

7

4154672

Elbow Fitting

(SUB FOR FFSB106427 ) (SUB FOR TH101008)

2шт.

8

4200465

Adapter Fitting

(SUB FOR FFSB106419 ) (SUB FOR TH108328)

4шт.

9

4437525

Grommet

(SUB FOR FFSB109902 ) (SUB FOR TH4437525)

2шт.

10

4191978

Grommet

(SUB FOR FFSB109903 ) (SUB FOR TH4428098)

2шт.

11

4202103

Clamp

(SUB FOR FFSB106422 ) (SUB FOR TH108302)

2шт.

12

9727822

Clamp

(SUB FOR FFSB109513 ) (SUB FOR TH109556)

2шт.

13

19M7361

Cap Screw

M12 X 50 (SUB FOR FFSB109214)

2шт.

14

4221224

Tee Fitting

(SUB FOR AT318018, FFSB106417 AND AT154156)

1шт.

15

H77698

Tie Band

(SUB FOR 4121859)

3шт.
