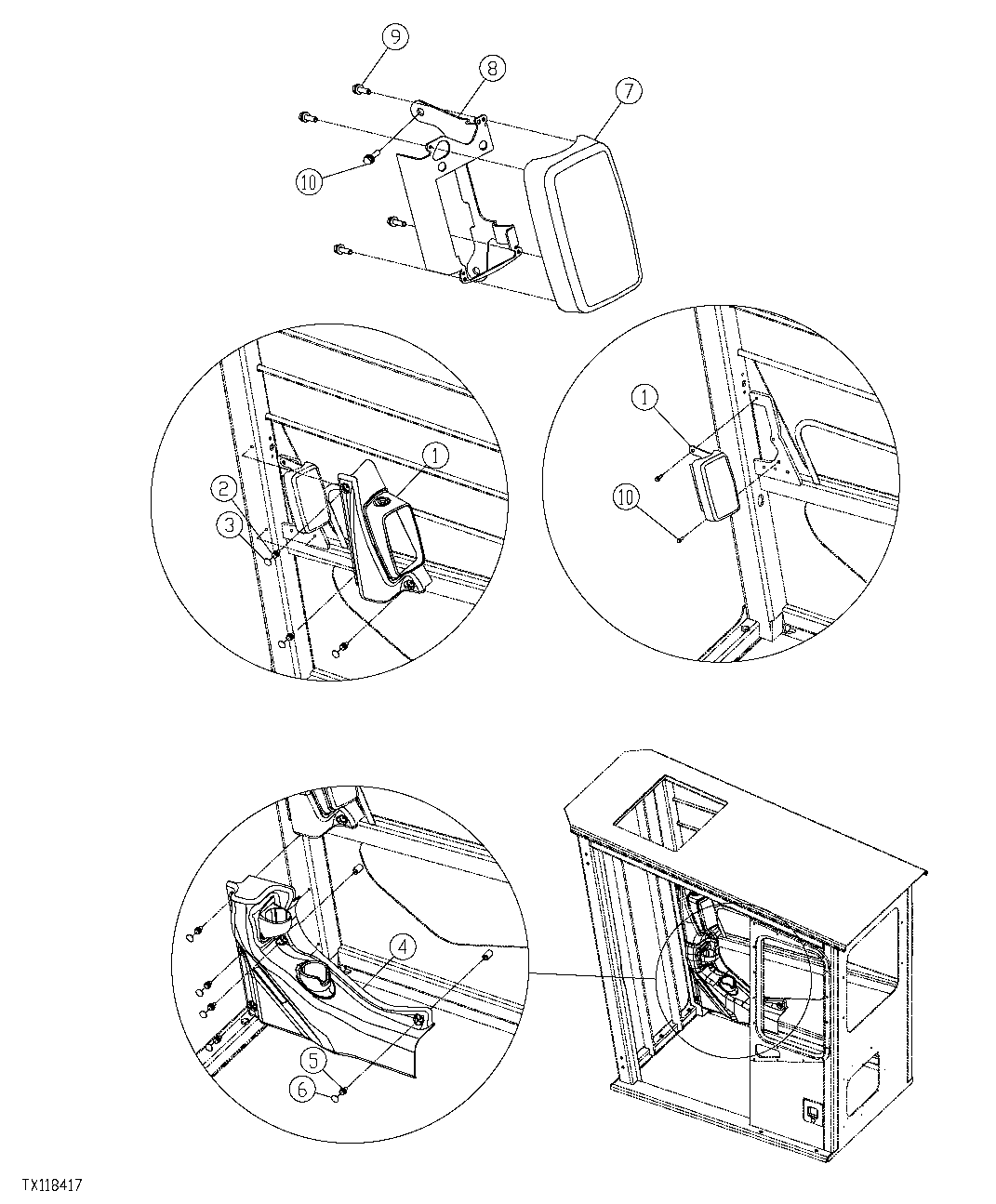

Запчасти John Deere 554 380 - SIDE ENTRY CAB RIGHT LOWER RIGHT FRONT DUCT COVER AND MONITOR 1830B SIDE ENTRY CAB HEATING AND AIR CONDITIONING

1

FFSB110655

Cover

1шт.

2

19M8425

Cap Screw

M6 X 16 SUB FOR FFSB107135

3шт.

12M7006

Lock Washer

6 mm

3шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

3шт.

3

4426354

Cap

SUB FOR FFSB110305

3шт.

4

FFSB112343

Cover

1шт.

5

19M8425

Cap Screw

M6 X 16 SUB FOR FFSB107135

5шт.

12M7006

Lock Washer

6 mm

5шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

5шт.

6

4426354

Cap

SUB FOR FFSB110305

5шт.

7

FYA00019931

Monitor

SUB FOR 4456486 OR FFSB11231 2; USE WITH OIL LEVEL SENSOR

1шт.

FYA00019932

Monitor

SUB FOR 4609754

1шт.

7A

4426362

Lamp

NOT ILLUSTRATED

3шт.

8

FFSB110245

Bracket

1шт.

9

T116079

Screw

SUB FOR FFSB106904; SUB FOR AT155616 AND 4297101

4шт.

10

19M8425

Cap Screw

M6 X 16 SUB FOR FFSB107135

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.
