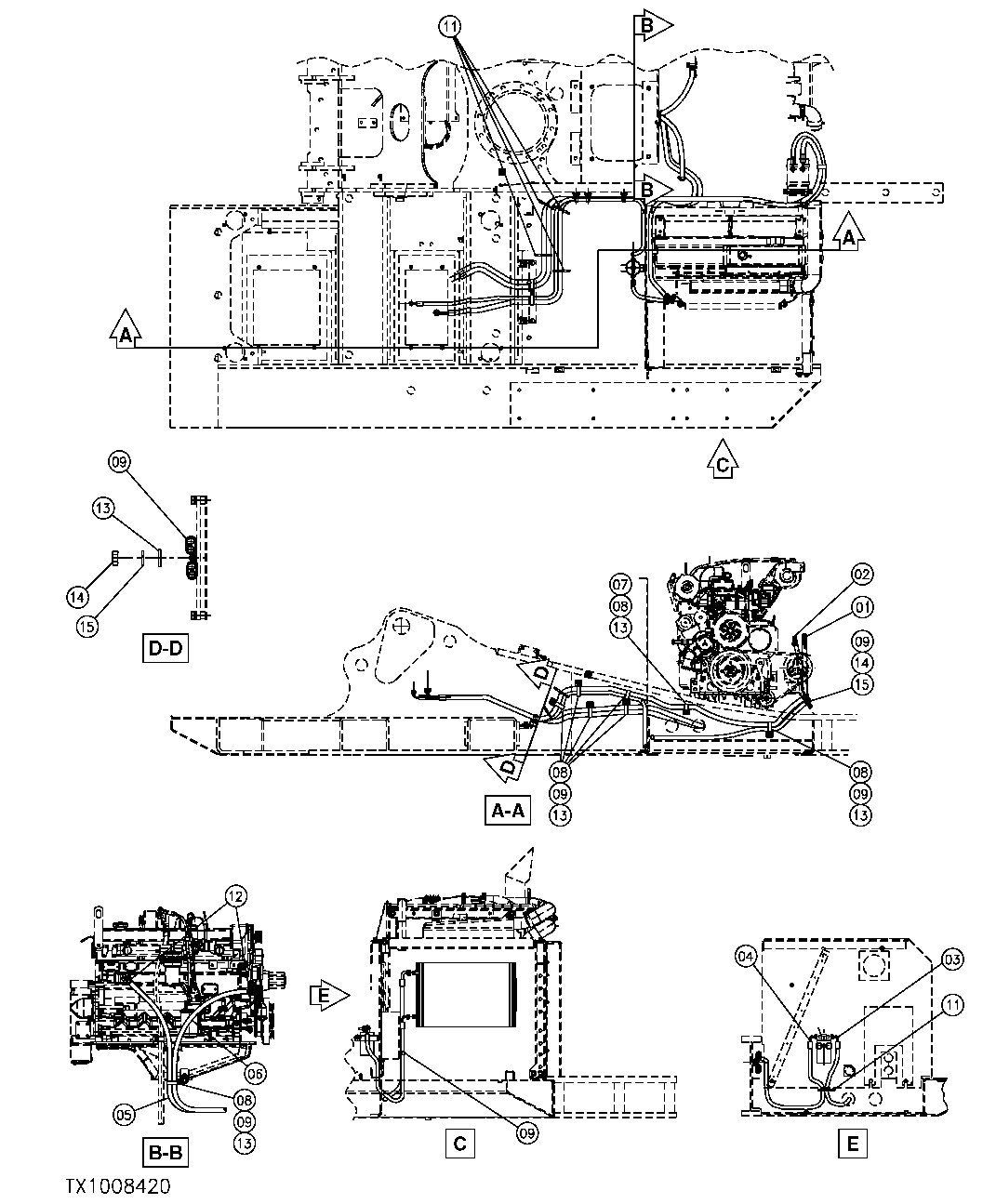

Запчасти John Deere 554 330 - AIR CONDITIONER HOSES AND CLAMPS (BASE MACHINE) 1830 HEATING AND AIR CONDITIONING

1

DH400526

Refrigerant Hose

Evaporator To Compress or (SUB FOR FFSB111277)

1шт.

2

DH400531

Refrigerant Hose

(SUB FOR FFSB110314)(C OMPRESSOR TO CONDENSER)

1шт.

3

DH400532

Refrigerant Hose

(SUB FOR FFSB110315)(CONDENSER TO DRYER)

1шт.

4

DH400533

Refrigerant Hose

Dryer To Evaporator (SUB FOR FFSB111278)

1шт.

5

DH400540

Hose

(SUB FOR FFSB110317)

1шт.

6

DH400534

Hose

(SUB FOR FFSB110318)

1шт.

7

XCL-17

Hose Clamp

(SUB FOR FFSB105439)

1шт.

8

19M7938

Cap Screw

M10 X 20 (SUB FOR FFSB107124)

8шт.

12M7066

Lock Washer

10 mm (SUB FOR FFSB107124)

8шт.

9

FFSB107516

Clamp

11шт.

11

H77698

Tie Band

(SUB FOR FFSB108110)

5шт.

12

FFSB102829

Clamp

2шт.

13

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

8шт.

14

14M7274

Nut

M10 (SUB FOR FFSB107411)

1шт.

15

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

1шт.
